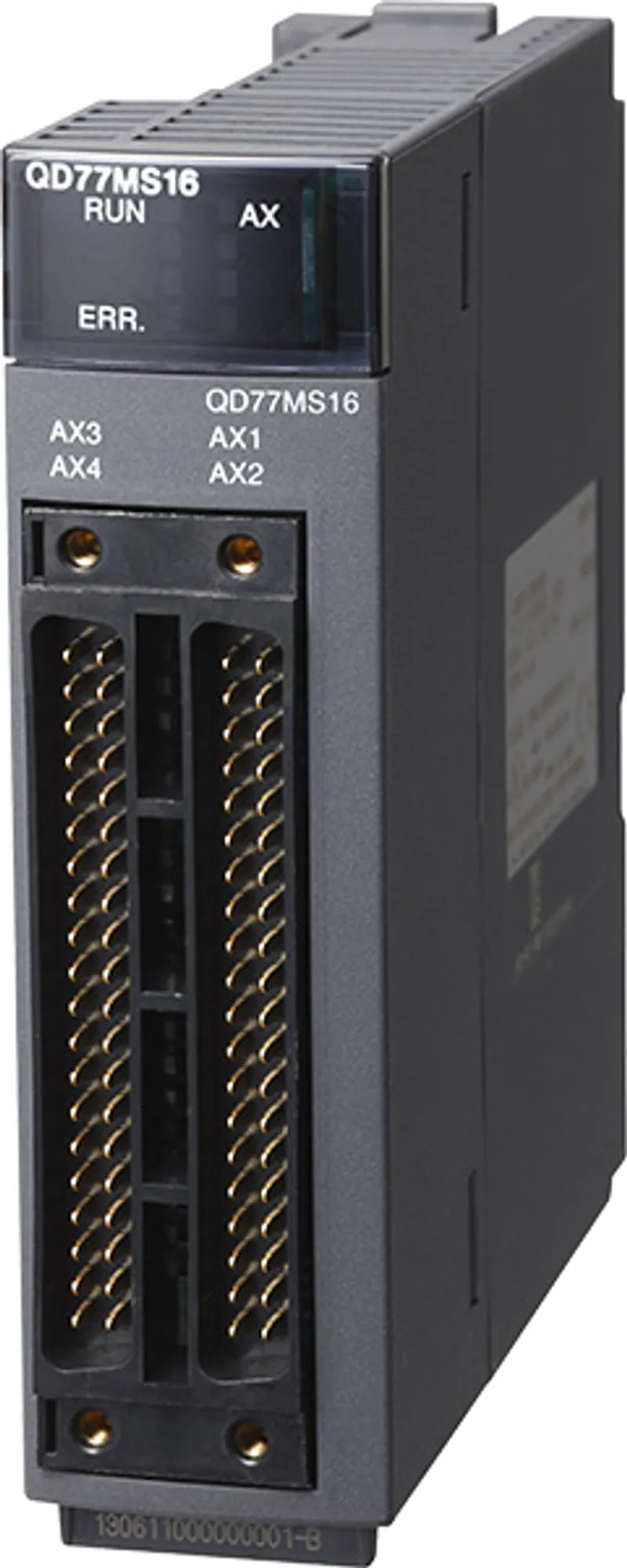

What is the Mitsubishi Electric QD77MS16?

The Mitsubishi Electric QD77MS16 is a simple motion in the MELSEC-Q Series. Maximum number of control axis: 16 axes, SSCNET III/H connection. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategorySimple motion
TypeSSCNETⅢ/H-compatible
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineMaximum number of control axis: 16 axes, SSCNET III/H connection

Control specifications

Number of control axesUp to 16 axes (virtual servo amplifier axis included)
Operation cycle (operation cycle settings) *10.88 ms, 1.77 ms
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation
Control methodPositioning control, speed control, speed-torque control, speed-position switching control, fixed-pitch feed, advanced synchronous control, cam control, continuous path control, position-speed switching control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, near pass function
Synchronous controlSynchronous encoder input, cam, phase compensation, cam auto-generation
Control unitmm, inch, degree, pulse
Positioning control methodMotion profile table
Number of positioning data600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works2 or a sequence program.)
BackupParameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position returnProximity dog method, count method 1, count method 2, data set method, scale home position signal detection method (fast home position return control, home position return retry function, and home position shift function provided)
Positioning controlLinear interpolation control (up to 4 axes) *2 , fixed-pitch feed control (up to 4 axes), 2-axis circular interpolation (auxiliary point-specified, central point-specified), speed control (up to 4 axes), speed-position switching control (INC mode, ABS mode), position-speed switching control (INC mode), current value change
Manual controlJOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque controlSpeed control not including position loop, torque control, continuous operation to torque control
Synchronous encoder operation functionPossible to connect 4 modules (Total of the internal interface (incremental 1 channel), via PLC CPU interface, and servo amplifier interface)
Absolute position systemProvided (Made compatible by setting battery to servo amplifier.)
Speed limitSpeed limit value, JOG speed limit value
Torque limit functionTorque limit value same setting, torque limit value individual setting
Forced stopValid/invalid setting
Software stroke limit functionMovable range check with feed current value or with machine feed value
Hardware stroke limit functionProvided
Speed changeProvided
Override1 to 300 %
Acceleration/deceleration processing changeAcceleration/deceleration time
Torque change functionProvided
Torque limit value changeProvided
Target position change functionSpeed to a target position address and a target position is changeable.
M-code output functionProvided
Step functionDeceleration unit step, data No. unit step
Skip functionVia a PLC CPU or an external command signal
Teaching functionProvided
Parameter initialization functionProvided
Mark detection functionContinuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signalUp to 4 points
Mark detection function: Mark detection setting16 settings
Optional data monitor functionUp to 4 points/axis
Driver communication functionProvided
Connect/disconnect function of SSCNET communicationProvided
Amplifier-less operation functionProvided
Digital oscilloscope functionBit data: 16 channels, word data: 16 channels *4

Module specifications

Servo amplifier connection methodSSCNET III/H
Maximum distance between stations [m]SSCNET III/H: 100, SSCNET III: 50
PERIPHERAL I/FVia a CPU module (USB, RS-232, Ethernet)
Number of occupied I/O points32 points (I/O allocation: intelligent function module 32 points)
Number of module occupied slots1
5 V DC internal current consumption [A]0.75
Mass [kg]0.16
Exterior dimensions [mm]98.0 (H) x 27.4 (W) x 90.0 (D)
