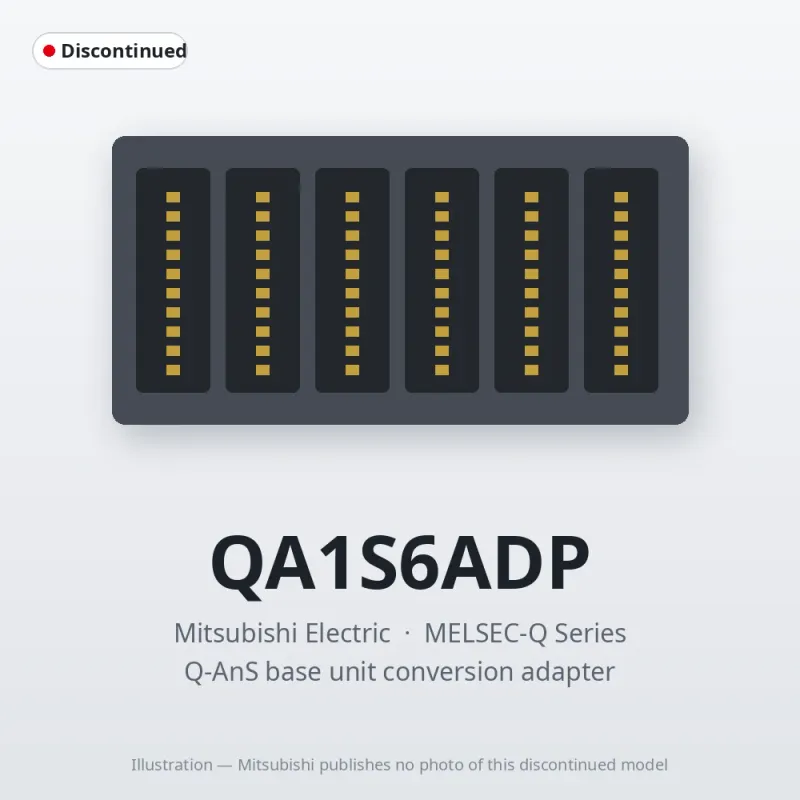

QA1S6ADP Mitsubishi MELSEC-Q Series Option

MPN: QA1S6ADP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QA1S6ADP (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – Base
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the QA1S6ADP now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QA1S6ADP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QA1S6ADP be shipped?

QA1S6ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QA1S6ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QA1S6ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QA1S6ADP, subject to availability and destination.

The Mitsubishi Electric QA1S6ADP is a option in the MELSEC-Q Series. For connecting an AnS Series extension base unit to a Q Series main base unit, supported extension base unit: A1S5□B/A1S6□B. Mitsubishi Electric has discontinued it (2022/06 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Option
Type	Q-AnS base unit conversion adapter
Sales status	2022/06 Discontinued (Mitsubishi Electric)
Outline	For connecting an AnS Series extension base unit to a Q Series main base unit, supported extension base unit: A1S5□B/A1S6□B

Specifications

Extension base unit: Power supply module not mounting type	A1S52B, A1S55B, A1S58B
Extension base unit: Power supply module mounting type	A1S65B, A1S68B
Internal current consumption (5 V DC)	150 mA
External dimensions: Height	130 mm
External dimensions: Width	62 mm
External dimensions: Depth	78.5 mm
Weight	0.27 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 10...57 Hz, Amplitude: 0.075 mm Frequency: 57...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 10...57 Hz, Amplitude: 0.035 mm Frequency: 57...150 Hz, Acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
