Mitsubishi Electric QA1S65B

Mitsubishi MELSEC-Q Series Extension base

MPN
QA1S65B
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QA1S65B (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

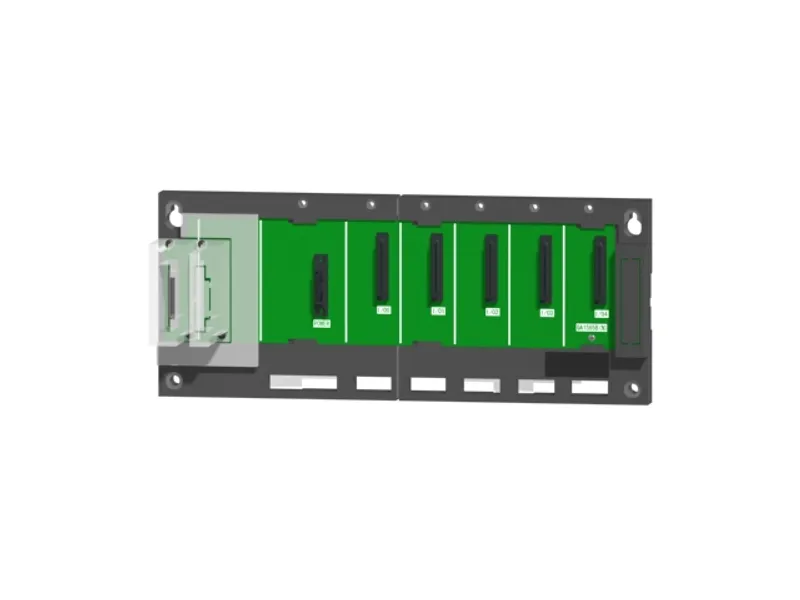

What is the Mitsubishi Electric QA1S65B?

The Mitsubishi Electric QA1S65B is a extension base in the MELSEC-Q Series. 5 slots, AnS Series power supply module required, for AnS Series modules. Mitsubishi Electric has discontinued it (2024/04 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryExtension base
TypeQA1S type
Sales status2024/04 Discontinued (Mitsubishi Electric)
Outline5 slots, AnS Series power supply module required, for AnS Series modules

Specifications

Number of mountable I/O modules5
Possibility of extensionExtendable
Applicable moduleMELSEC-AnS series modules
Applicable power supply moduleMELSEC-AnS series power supply module
Internal current consumption (5 V DC)0.12 A
Mounting hole sizeM5 screw hole or ø5.5 hole (for M5 screw)
External dimensions: Height130 mm
External dimensions: Width315 mm
External dimensions: Depth51.2 mm
Weight0.75 kg
DIN rail mounting adapter type―

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QA1S65B: frequently asked questions

Can I still buy the QA1S65B now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QA1S65B, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QA1S65B be shipped?

QA1S65B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QA1S65B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QA1S65B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QA1S65B, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

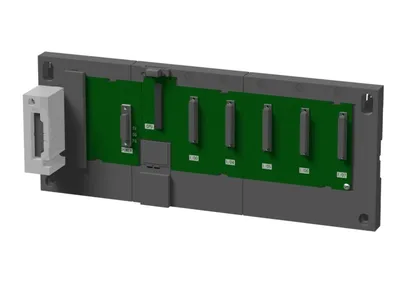

Mitsubishi Electric QA1S35B-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
QA1S35B-E

Mitsubishi MELSEC-Q Series Main base

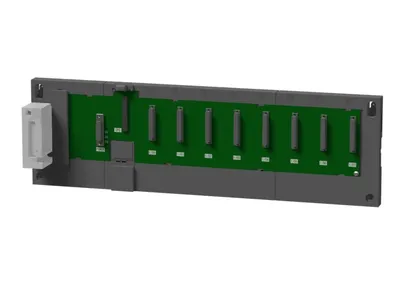

Mitsubishi Electric QA1S38B – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
QA1S38B

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric QA1S38B-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
QA1S38B-E

Mitsubishi MELSEC-Q Series Main base

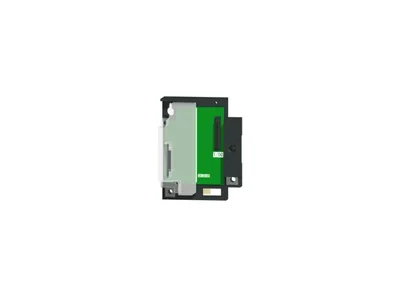

Mitsubishi Electric QA1S51B – Mitsubishi MELSEC-Q Series Extension base
