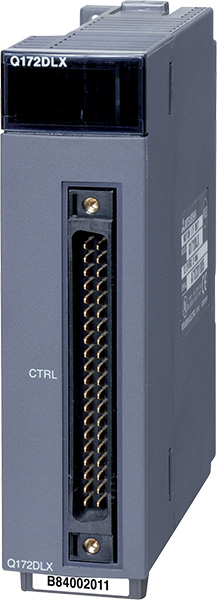

What is the Mitsubishi Electric Q172DLX?

The Mitsubishi Electric Q172DLX is a motion CPU in the MELSEC-Q Series. For 8 axes of servo external signal input (FLS,RLS,STOP,DOG × 8). Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMotion CPU
TypeMotion controller
SubtypeServo external signal input
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineFor 8 axes of servo external signal input (FLS,RLS,STOP,DOG × 8)

Module specifications

External input signal (FLS, RLS, STOP, DOG): Number of input pointsServo external control signals: 32 points, 8 axes
External input signal (FLS, RLS, STOP, DOG): Input methodPositive common/negative common shared type (photocoupler isolation)
External input signal (FLS, RLS, STOP, DOG): Rated input voltage/current12 V DC/2 mA, 24 V DC/4 mA
External input signal (FLS, RLS, STOP, DOG): Operating voltage range10.2 V DC to 26.4 V DC (ripple ratio 5 % or less)
External input signal (FLS, RLS, STOP, DOG): ON voltage/current10 V DC or more/2.0 mA or more
External input signal (FLS, RLS, STOP, DOG): OFF voltage/current1.8 V DC or less/0.18 mA or less
External input signal (FLS, RLS, STOP, DOG): Response time: FLS, RLS, STOP1 ms (OFF to ON, ON to OFF)
External input signal (FLS, RLS, STOP, DOG): Response time: DOG0.4 ms, 0.6 ms, 1 ms (OFF to ON, ON to OFF) *CPU parameter setting, default 0.4 ms
Number of occupied I/O points32 points (I/O allocation: intelligent function module, 32 points)
5 V DC internal current consumption [A]0.06
Mass [kg]0.15
Exterior dimensions [mm]98.0 (H) × 27.4 (W) × 90.0 (D)
Note1. Motion modules cannot be installed in CPU slot and I/O slot 0 to 2 of the main base unit. 2. Compatible model: Q173DSCPU, Q172DSCPU, Q170MSCPU(-S1), Q173DCPU, Q172DCPU, Q170MCPU

Q172DLX: frequently asked questions

When can Q172DLX be shipped?

Q172DLX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q172DLX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q172DLX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q172DLX, subject to availability and destination.
