Mitsubishi Electric Q172DEX

Mitsubishi MELSEC-Q Series Motion CPU

MPN
Q172DEX
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q172DEX?

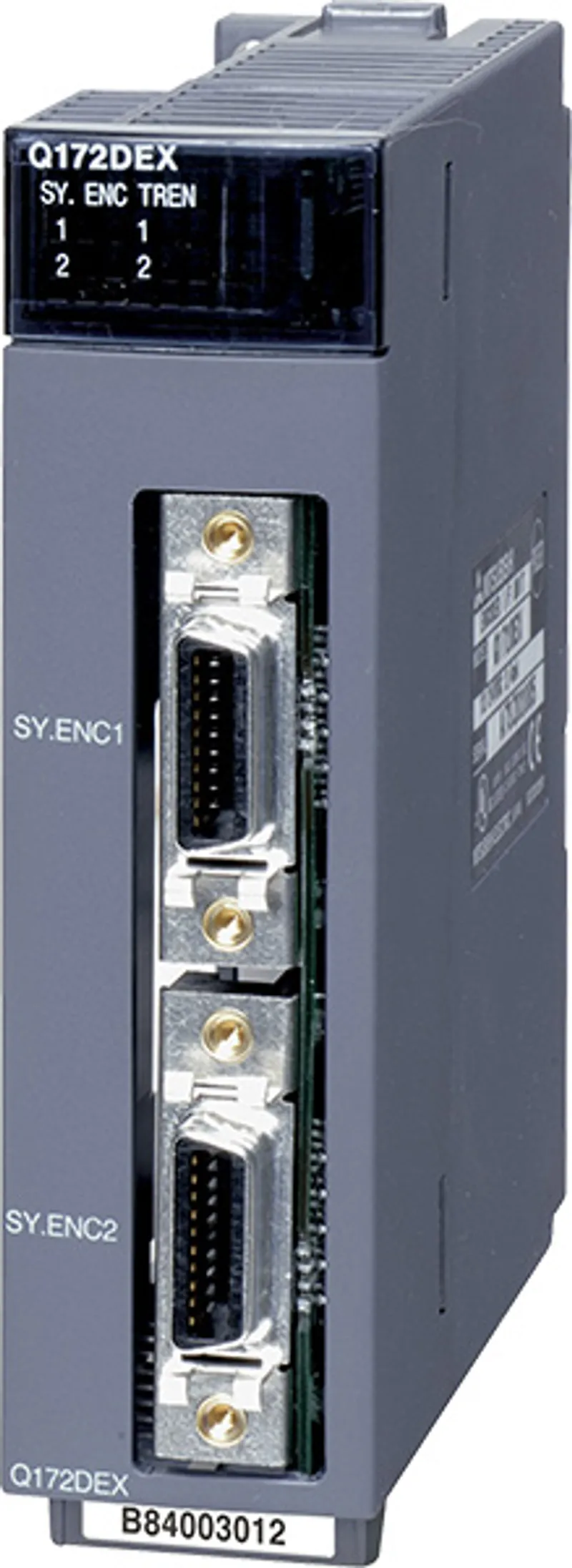

The Mitsubishi Electric Q172DEX is a motion CPU in the MELSEC-Q Series. Serial absolute synchronous encoder Q171ENC-W8 interface × 2, Tracking input 2 points, With A6BAT (built-in). Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMotion CPU
TypeMotion controller
SubtypeSynchronous encoder input
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineSerial absolute synchronous encoder Q171ENC-W8 interface × 2, Tracking input 2 points, With A6BAT (built-in)

Module specifications

Serial absolute synchronous encoder input: Number of modules2 per module
Serial absolute synchronous encoder input: Applicable encoderQ171ENC-W8
Serial absolute synchronous encoder input: Position detection methodAbsolute (ABS) data method
Serial absolute synchronous encoder input: Transmission methodSerial communications (2.5 Mbps)
Serial absolute synchronous encoder input: Backup batteryA6BAT/MR-BAT
Serial absolute synchronous encoder input: Maximum cable length [m]50
Tracking enable input: Number of input points2 points
Tracking enable input: Input methodPositive common/negative common shared type (photocoupler isolation)
Tracking enable input: Rated input voltage/current12 V DC/2 mA, 24 V DC/4 mA
Tracking enable input: Operating voltage range10.2 V DC to 26.4 V DC (ripple ratio 5 % or less)
Tracking enable input: ON voltage/current10 V DC or more/2.0 mA or more
Tracking enable input: OFF voltage/current1.8 V DC or less/0.18 mA or less
Tracking enable input: Response time0.4 ms, 0.6 ms, 1 ms (OFF to ON, ON to OFF) *CPU parameter setting, default 0.4 ms
Number of occupied I/O points32 points (I/O allocation: intelligent function module, 32 points)
5 V DC internal current consumption [A]0.19
Mass [kg]0.15
Exterior dimensions [mm]98.0 (H) × 27.4 (W) × 90.0 (D)
Note1. Motion modules cannot be installed in CPU slot and I/O slot 0 to 2 of the main base unit. 2. Install Q172DEX to the main base unit. Do not install to the extension base unit. 3. Compatible model: Q173DSCPU, Q172DSCPU, Q173DCPU, Q172DCPU

Q172DEX: frequently asked questions

When can Q172DEX be shipped?

Q172DEX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q172DEX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q172DEX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q172DEX, subject to availability and destination.
