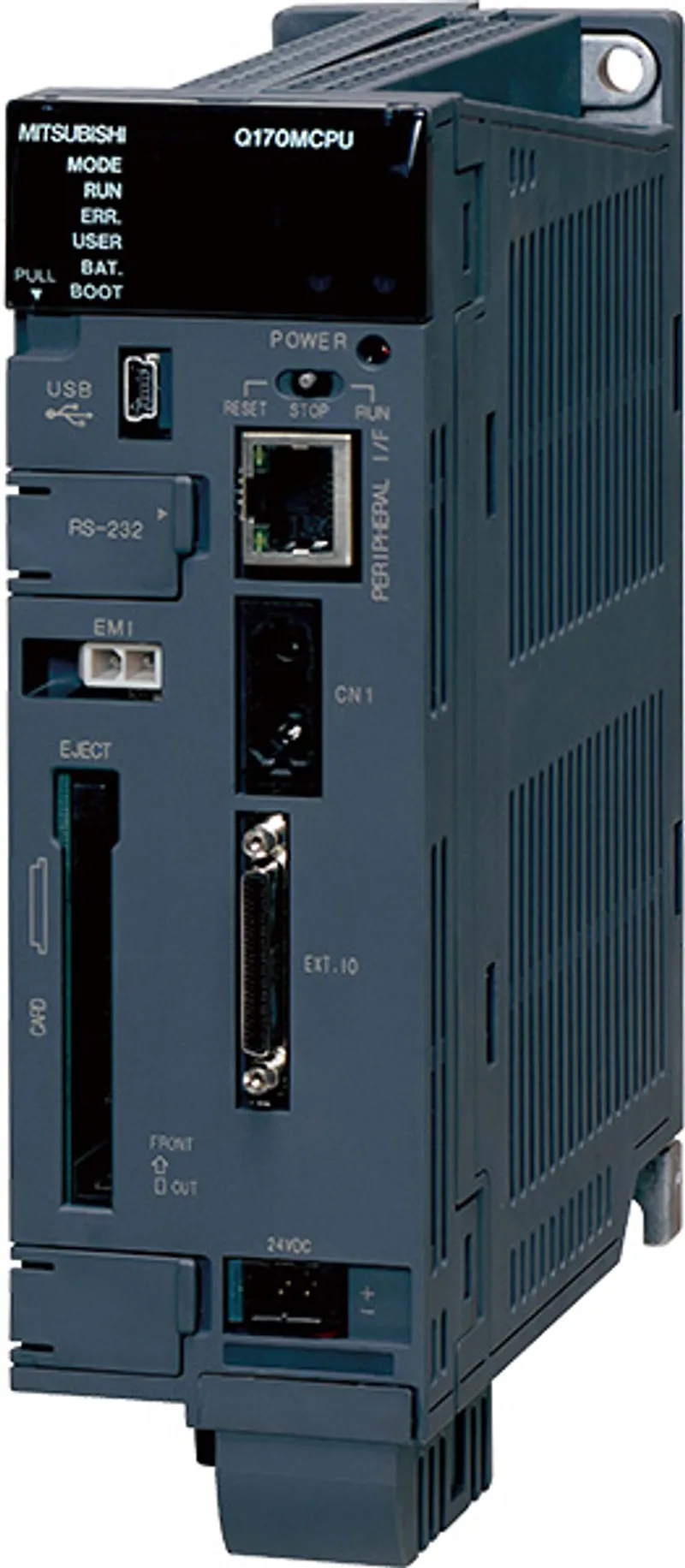

Mitsubishi Electric Q170MCPU

Mitsubishi Motion controller

MPN
Q170MCPU
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q170MCPU (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q170MCPU?

The Mitsubishi Electric Q170MCPU is a motion controller in the Motion controller. Stand-alone type (a power supply, PLC CPU, and Motion CPU are integrated), Maximum number of control axes: 16 axes, SSCNET III/H connection. Mitsubishi Electric has discontinued it (2026/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMotion controller
CategoryMotion controller
TypeMELSEC Q series
SubtypeCPU module
Sales status2026/03 Discontinued (Mitsubishi Electric)
OutlineStand-alone type (a power supply, PLC CPU, and Motion CPU are integrated), Maximum number of control axes: 16 axes, SSCNET III/H connection

Control specifications

Number of control axesUp to 16 axes
Operation cycle (default): SV130.44 ms/1 to 6 axes 0.88 ms/7 to 16 axes
Operation cycle (default): SV220.44 ms/1 to 4 axes 0.88 ms/5 to 12 axes 1.77 ms/13 to 16 axes
Operation cycle (default): SV430.44 ms/1 to 4 axes 0.88 ms/5 to 12 axes 1.77 ms/13 to 16 axes
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation, helical interpolation (3 axes)
Control method: SV13/SV22Positioning control, speed control, speed positioning control (external servo amplifier input signals (DOG)), fixed-pitch feed, constant speed control, position follow-up control, speed control with fixed position stop, speed switching control, high-speed oscillation control, synchronous control (SV22)
Control method: SV43Positioning control, constant speed positioning, high-speed oscillation control
Acceleration/deceleration processingAutomatic trapezoidal acceleration/deceleration, S-curve acceleration/deceleration, advanced S-curve acceleration/deceleration *1
Compensation functionBacklash compensation, electronic gear, phase compensation (SV22)
Programming language: SV13/SV22Motion SFC, dedicated instruction, Mechanical support language (SV22)
Programming language: SV43EIA language (G-code)
Program (dedicated instruction capacity): Servo program: SV13/SV2216k steps
Program (dedicated instruction capacity): Motion program: SV43504 k bytes
Number of positioning points: SV13/SV223200 points (positioning data can be set indirectly)
Number of positioning points: SV43Approx. 10600 points (positioning data can be designated indirectly)
PERIPHERAL I/FSB/RS-232 (PLC CPU area control), PERIPHERAL I/F (Motion CPU area control)
Home position return functionProximity dog method (2 types), count method (3 types, external servo amplifier input signals (DOG)), data set method (2 types), dog cradle method, stopper method (2 types), limit switch combined method, scale home position signal detection method (home position return re-try function provided, home position shift function provided)
JOG operation functionProvided
Manual pulse generator operation functionPossible to connect 3 modules (Q173DPX use), Possible to connect 1 module (internal I/F use)
Synchronous encoder operation functionPossible to connect 8 channels (SV22 use)
M-code functionM-code output function provided, M-code completion wait function provided
Limit switch output functionNumber of output points 32 points Watch data: Motion control data/word device
ROM operation functionProvided
Absolute position systemMade compatible by setting battery to servo amplifier. (Possible to select the absolute data method or incremental method for each axis)
Number of SSCNET III lines1 line
Number of Motion related modulesQ172DLX: 2 modules usable Q173DPX: 3 modules usable *2

Module specifications

PLC CPU areaQ03UDCPU or equivalent
Program capacity20 k steps (80 k bytes)

Q170MCPU: frequently asked questions

Can I still buy the Q170MCPU now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q170MCPU, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can Q170MCPU be shipped?

Q170MCPU is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q170MCPU in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q170MCPU and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q170MCPU, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric Q13UDHCPU – Mitsubishi MELSEC-Q Series Programmable controller CPU
Mitsubishi Electric
Q13UDHCPU

Mitsubishi MELSEC-Q Series Programmable controller CPU

Mitsubishi Electric Q13UDPVCPU – Mitsubishi MELSEC-Q Series Process CPU
Mitsubishi Electric
Q13UDPVCPU

Mitsubishi MELSEC-Q Series Process CPU

Mitsubishi Electric Q13UDVCPU – Mitsubishi MELSEC-Q Series Programmable controller CPU
Mitsubishi Electric
Q13UDVCPU

Mitsubishi MELSEC-Q Series Programmable controller CPU

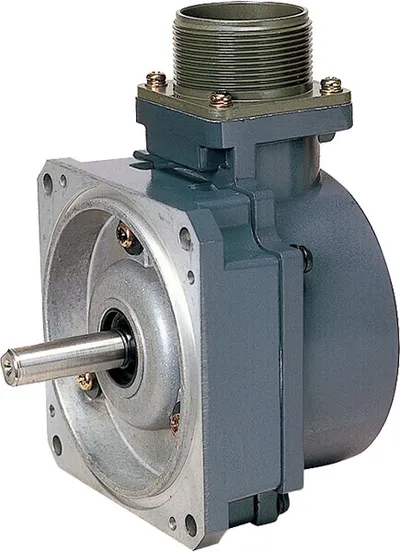

Mitsubishi Electric Q170ENC – Mitsubishi Motion controller
