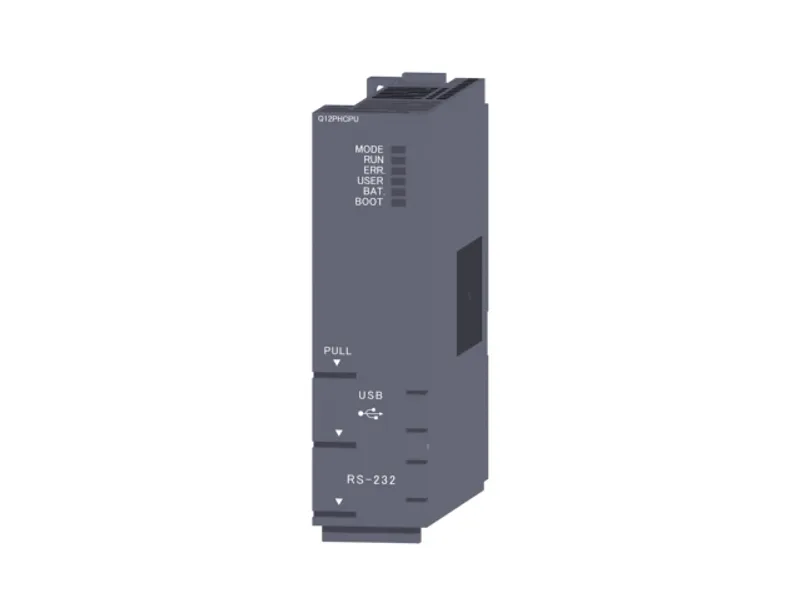

Mitsubishi Electric Q12PHCPU

Mitsubishi MELSEC-Q Series Process CPU

MPN
Q12PHCPU
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q12PHCPU (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q12PHCPU?

The Mitsubishi Electric Q12PHCPU is a process CPU in the MELSEC-Q Series. Number of I/O points: 4096, I/O device points: 8192, program capacity: 124K steps, basic operation processing speed (LD X0): 34 ns, program memory capacity: 496K bytes, external interface: USB/RS-232, with memory card interface, process control language supported. Mitsubishi Electric has discontinued it (2020/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryProcess CPU
Sales status2020/09 Discontinued (Mitsubishi Electric)
OutlineNumber of I/O points: 4096, I/O device points: 8192, program capacity: 124K steps, basic operation processing speed (LD X0): 34 ns, program memory capacity: 496K bytes, external interface: USB/RS-232, with memory card interface, process control language supported

Specifications

Control methodStored program cyclic operation
I/O control modeRefresh mode (The direct access input/output is available by specifying the direct access input/output (DX, DY).)
Programming language: Sequence control languageRelay symbol language, logic symbolic language, MELSAP3 (SFC), MELSAP-L, function block and structured text (ST)
Programming language: Process control languageFBD for process control
Processing speed: Sequence instruction: LD X034 ns
Processing speed: Sequence instruction: MOV D0 D1102 ns
Constant scan0.5...2000 ms (setting is available in increments of 0.5 ms by parameter)
Program capacity124K steps (496K bytes)
Memory capacity: Program memory (drive 0)496K bytes
Memory capacity: Memory card (RAM) (drive 1)Size of the installed memory card (2M bytes max.)
Memory capacity: Memory card (ROM) (drive 2)Size of the installed memory card (Flash card: 4M bytes max., ATA card: 32M bytes max.)
Memory capacity: Standard RAM (drive 3)256K bytes
Memory capacity: Standard ROM (drive 4)496K bytes
Memory capacity: CPU shared memory: QCPU standard memory8K bytes
Maximum number of storable files: Program memory124
Maximum number of storable files: Memory card (RAM)287 (when the Q2MEM-2MBS is used)
Maximum number of storable files: Memory card (ROM): Flash card288
Maximum number of storable files: Memory card (ROM): ATA card512
Maximum number of storable files: Standard RAM3
Maximum number of storable files: Standard ROM124
Maximum number of intelligent function module parameters: Initial setting512 parameters
Maximum number of intelligent function module parameters: Refresh256 parameters
Number of I/O device points8192 points (X/Y0...1FFF)
Number of I/O points4096 points (X/Y0...FFF)
No. of device points: Internal relay (M)8192 points (M0...8191) by default (changeable)
No. of device points: Latch relay (L)8192 points (L0...8191) by default (changeable)
No. of device points: Link relay (B)8192 points (B0...1FFF) by default (changeable)
No. of device points: Timer (T)2048 points (T0...2047) by default (changeable) (Low-speed and high-speed timers available) Low-speed or high-speed is specified by an instruction. The measurement unit is set by parameter. (Low-speed timer: 1...1000 ms (in increments of 1 ms), default: 100 ms) (High-speed timer: 0.1...100.0 ms (in increments of 0.1 ms), default: 10.0 ms)
No. of device points: Retentive timer (ST)0 points by default (changeable) (Low-speed and high-speed retentive timers available) Low-speed or high-speed is specified by an instruction. The measurement unit is set by parameter. (Low-speed retentive timer: 1...1000 ms (in increments of 1 ms), default: 100 ms) (High-speed retentive timer: 0.1...100.0 ms (in increments of 0.1 ms), default: 10.0 ms)
No. of device points: Counter (C)Normal counter: 1024 points (C0...1023) by default (changeable) Interrupt counter: 256 points max. (0 points by default, setting by parameters)
No. of device points: Data register (D)12288 points (D0...12287) by default (changeable)
No. of device points: Link register (W)8192 points (W0...1FFF) by default (changeable)
No. of device points: Annunciator (F)2048 points (F0...2047) by default (changeable)
No. of device points: Edge relay (V)2048 points (V0...2047) by default (changeable)
No. of device points: File register (R): Standard RAM32768 points (R0...32767) (Maximum 131072 points are available by switching blocks.)
No. of device points: File register (R): SRAM card (1M byte)32768 points (R0...32767) (Maximum 517120 points are available by switching blocks.)
No. of device points: File register (R): SRAM card (2M bytes)32768 points (R0...32767) (Maximum 1041408 points are available by switching blocks.)
No. of device points: File register (R): Flash card (2M bytes)32768 points (R0...32767) (Maximum 1041408 points are available by switching blocks.)
No. of device points: File register (R): Flash card (4M bytes)32768 points (R0...32767) (Maximum 1042432 points are available by switching blocks.)
No. of device points: File register (ZR): Standard RAM131072 points (ZR0...131071) (Blocks do not need to be switched.)
No. of device points: File register (ZR): SRAM card (1M byte)517120 points (ZR0...517119) (Blocks do not need to be switched.)
No. of device points: File register (ZR): SRAM card (2M bytes)1041408 points (ZR0...1041407) (Blocks do not need to be switched.)
No. of device points: File register (ZR): Flash card (2M bytes)1041408 points (ZR0...1041407) (Blocks do not need to be switched.)
No. of device points: File register (ZR): Flash card (4M bytes)1042432 points (ZR0...1042431) (Blocks do not need to be switched.)
No. of device points: Link special relay (SB)2048 points (SB0...7FF) (The number of device points is fixed.)
No. of device points: Link special register (SW)2048 points (SW0...7FF) (The number of device points is fixed.)
No. of device points: Step relay (S)8192 points (S0...8191) (The number of device points is fixed.)
No. of device points: Index register (Z)16 points (Z0...15) (The number of device points is fixed.)
No. of device points: Pointer (P)4096 points (P0...4095) (The number of device points is fixed.) (The local pointer range and the common pointer range can be set by parameter.)
No. of device points: Interrupt pointer (I)256 points (I0...255) (The number of device points is fixed.) (The fixed scan interval for the system interrupt pointer I28 to 31 can be set by parameter.) 0.5...1000.0 ms (in increments of 0.5 ms) Default I28: 100 ms, I29: 40 ms, I30: 20 ms, I31: 10 ms
No. of device points: Special relay (SM)2048 points (SM0...2047) (The number of device points is fixed.)
No. of device points: Special register (SD)2048 points (SD0...2047) (The number of device points is fixed.)
No. of device points: Function input (FX)16 points (FX0...F) (The number of device points is fixed.)
No. of device points: Function output (FY)16 points (FY0...F) (The number of device points is fixed.)
No. of device points: Function register (FD)5 points (FD0...4) (The number of device points is fixed.)
Link direct deviceDevice that directly accesses the link device of a network module Specification format: J□□\X□□, J□□\Y□□, J□□\SB□□, J□□\W□□, J□□\SW□□
Intelligent function module deviceDevice that directly accesses the buffer memory of an intelligent function module Specified form: U...\G...
Latch (data retention during power failure) range8192 points (L0...8191) by default (The latch range can be set for the devices, B, F, V, T, ST, C, D, and W.)
RUN/PAUSE contactOne contact can be set up in X0 to X1FFF for each of RUN and PAUSE.
Clock functionYear, month, date, hour, minute, second, and day of week (automatic leap year detection) Accuracy: -3.18...+5.25 s (TYP. +2.12 s)/d at 0 ˚C Accuracy: -3.93...+5.25 s (TYP. +1.90 s)/d at 25 ˚C Accuracy: -14.69...+3.53 s (TYP. -3.67 s)/d at 55 ˚C
Allowable momentary power failure timeThe time differs depending on the power supply module used.
Internal current consumption (5 V DC)0.64 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth89.3 mm
Weight0.20 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

Q12PHCPU: frequently asked questions

Can I still buy the Q12PHCPU now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q12PHCPU, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can Q12PHCPU be shipped?

Q12PHCPU is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q12PHCPU in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q12PHCPU and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q12PHCPU, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric Q10WCPU-W1-CFE – Mitsubishi MELSEC-Q Series MELSECWinCPU
Mitsubishi Electric
Q10WCPU-W1-CFE

Mitsubishi MELSEC-Q Series MELSECWinCPU

Mitsubishi Electric Q10WCPU-W1-E – Mitsubishi MELSEC-Q Series MELSECWinCPU
Mitsubishi Electric
Q10WCPU-W1-E

Mitsubishi MELSEC-Q Series MELSECWinCPU

Mitsubishi Electric Q12DCCPU-V – Mitsubishi MELSEC-Q Series C Controller CPU
Mitsubishi Electric
Q12DCCPU-V

Mitsubishi MELSEC-Q Series C Controller CPU

Mitsubishi Electric Q12HCPU – Mitsubishi MELSEC-Q Series Programmable controller CPU
Mitsubishi Electric
Q12HCPU

Mitsubishi MELSEC-Q Series Programmable controller CPU

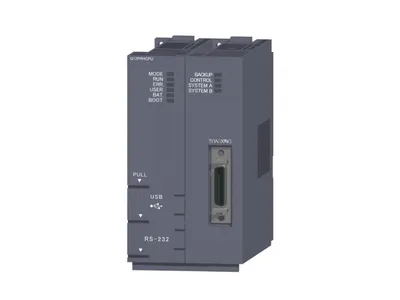

Mitsubishi Electric Q12PRHCPU – Mitsubishi MELSEC-Q Series Redundant CPU
Mitsubishi Electric
Q12PRHCPU

Mitsubishi MELSEC-Q Series Redundant CPU

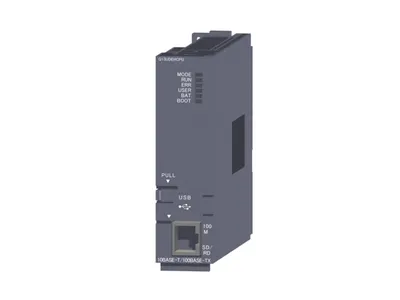

Mitsubishi Electric Q13UDEHCPU – Mitsubishi MELSEC-Q Series Programmable controller CPU
Mitsubishi Electric
Q13UDEHCPU

Mitsubishi MELSEC-Q Series Programmable controller CPU

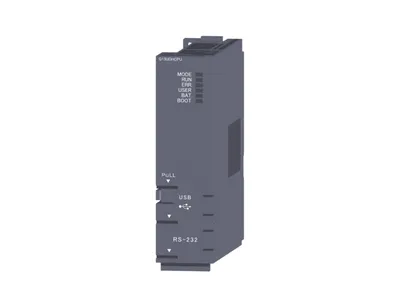

Mitsubishi Electric Q13UDHCPU – Mitsubishi MELSEC-Q Series Programmable controller CPU
