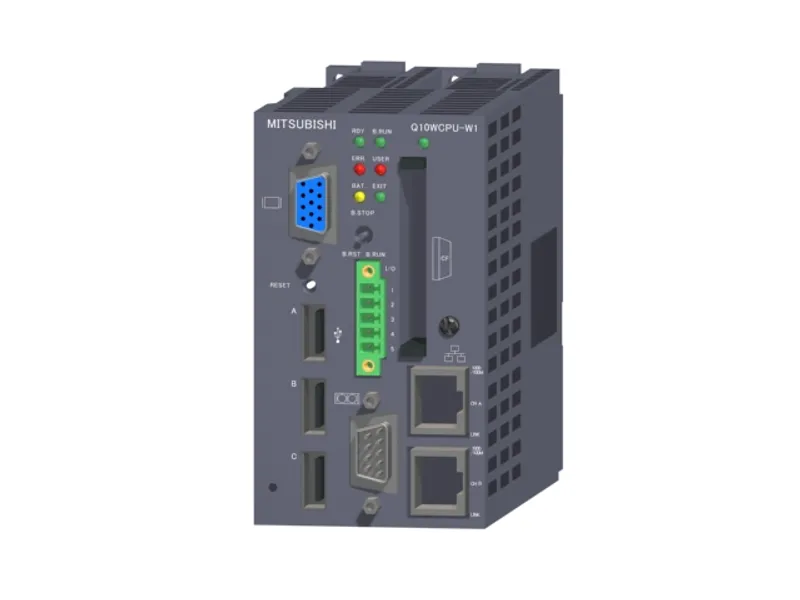

Q10WCPU-W1-E Mitsubishi MELSEC-Q Series MELSECWinCPU

MPN: Q10WCPU-W1-E · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q10WCPU-W1-E (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – CPU
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the Q10WCPU-W1-E now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q10WCPU-W1-E, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can Q10WCPU-W1-E be shipped?

Q10WCPU-W1-E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q10WCPU-W1-E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q10WCPU-W1-E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q10WCPU-W1-E, subject to availability and destination.

The Mitsubishi Electric Q10WCPU-W1-E is a MELSECWinCPU in the MELSEC-Q Series. Built-in SSD boot module Built-in OS: Windows ® Embedded Standard 2009 Number of I/O points: 4096 Powered by CONTEC. Mitsubishi Electric has discontinued it (2023/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	MELSECWinCPU
Sales status	2023/03 Discontinued (Mitsubishi Electric)
Outline	Built-in SSD boot module Built-in OS: Windows ® Embedded Standard 2009 Number of I/O points: 4096 Powered by CONTEC

Specifications

CPU	Intel® Atom™ Processor N450 1.66GHz
Chipset	Intel® ICH8M
Memory: L1 Cache	Instruction 32KB + Data 24KB
Memory: L2 Cache	512KB
Memory: Main memory	1GB (3.3V 200-pin DDR2 SO-DIMM DDR667Socket x 1)
Video: Controller	N450 built-in
Video: Video RAM	main memory shared
Video: CRT I/F	Analog-RGB 15-pin HD-SUB connector
Video: Resolution	1,400 x 1,050 60Hz (16 million colors)
Serial I/F	RS-232C-compliant: 1ch (9-pin D-SUB connector) baudrate: 50 - 115200bps
LAN: I/F	1000BASE-T/100BASE-TX/10BASE-T RJ-45 connector × 2
LAN: Controller	Intel 82574L
CF card slot	CF CARD Type I (Only for the memory card of IDE connection) Indication: access LED (green) × 1
Built-in SSD	Built-in flash drive 4GB
USB I/F	USB2.0-complicant 5ch (front 3ch, bottom 2ch) Transfer rate: 480Mbps Supply power: +5V each channel 0.5A max
Watch dog timer (WDT)	2ch Time-up period: system WDT 20msec - 2sec, user WDT 10msec - 10sec
General input/output	Terminal block [1, 2]: Input for shutdown (current drive input) Terminal block [3]: Output to notify shutdown completion (open collector output) Terminal block [4]: Output to nofity the start of watch dog timer (open collector output)
RTC/CMOS	Lithium battery backup life: 10 years or more (when no power input, at 25 ˚C) The real-time clock is accurate within ±3 minutes (at 25 ˚C) per month
Indication	RDY (green), B.RUN (green), ERR. (red), USER (red), BAT.(orange), EXIT (green), CF/SSD (green)
Control	Reset PUSH switch, DIP switch 4-pole, DIP switch 6-pole, 3-position toggle switch
Supported OS	Windows® Embedded Standard 2009
Allowable momentary power failure time	The time differs depending on the power supply module used.
Internal current consumption (5 V DC)	3.00 A
External dimensions: Height	98 mm
External dimensions: Width	55.2 mm
External dimensions: Depth	115 mm
Weight	0.44 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Product Guide (BCN-P5948-B)	PDF · 0.18MB
Precaution List (BCN-P5949-C)	PDF · 0.24MB
Setup Procedure (BCN-P5950-A)	PDF · 0.22MB
Recovery Procedure (BCN-P5951-B)	PDF · 0.24MB
Notes on Windows Embedded Standard (BCN-P5952-C)	PDF · 0.33MB
MELSECWinCPU Module Q-Bus Interface Driver User's Manual (Utility Operation, Programming) (SH-081054ENG-D)	PDF · 5.59MB
MELSECWinCPU Module User's Manual (Hardware Design, Function Explanation) (SH-081055ENG-D)	PDF · 2.43MB
