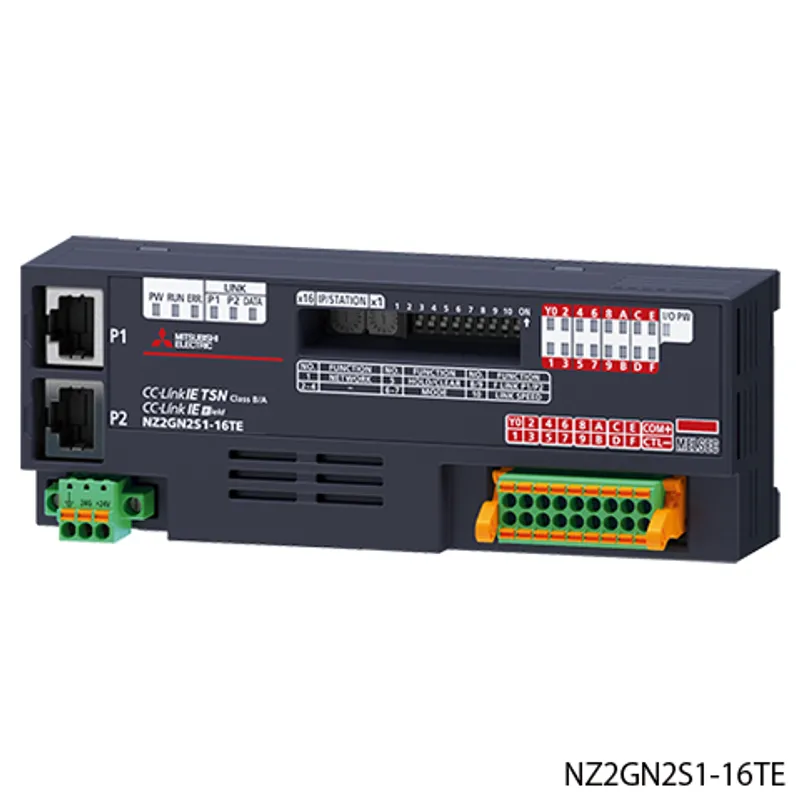

The Mitsubishi Electric NZ2GN2S1-16TE is a remote I/O in the MELSEC network modules. Transistor output: 16 points, 12/24 V DC, 0.5 A/point, 4 A/common, response time: 1.0 ms, 16 points/common, source type, 1-wire spring-clamp terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Output
Outline	Transistor output: 16 points, 12/24 V DC, 0.5 A/point, 4 A/common, response time: 1.0 ms, 16 points/common, source type, 1-wire spring-clamp terminal block type

Output specifications

Output type	Transistor output (source type)
Number of output points	16 points
Rated load voltage	12/24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
Maximum load current	0.5 A/point, 4 A/common
Maximum inrush current	Current is limited by the overload protection function.
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.5 V DC (TYP.) 0.5 A, 0.8 V DC (MAX.) 0.5 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1.0 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function: Overheat protection function	Activated in increments of 1 point.
Protection function: Overload protection function	Limit current with overload protection at overcurrent detection: 1.5 A or more/point Activated in increments of 1 point.
External power supply for output part: Voltage	12/24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
External power supply for output part: Current	80 mA or less (TYP. 24 V DC/common), excluding external load current
Output common terminal arrangement	16 points/common (1-wire, spring clamp terminal block type)

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 510 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	CC-Link IE TSN Communication Mode: Remote station CC-Link IE Field Network Communication Mode: Remote device station
CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
CC-Link IE TSN protocol version: CC-Link IE TSN Class B	Protocol version 2.0/1.0
CC-Link IE TSN protocol version: CC-Link IE TSN Class A	Protocol version 2.0
Maximum response time for time-managed polling: CC-Link IE TSN Class A	512 µs
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Multicast filter	Available
Cyclic transmission: RX/RY points	16 points
Cyclic transmission: RWr/RWw points	4 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	110 mA or less (at 24 V DC, all points ON)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part: 18-point two-piece spring clamp terminal block
External dimensions: Height	54.5 mm
External dimensions: Width	147 mm
External dimensions: Depth	45.5 mm
Weight	0.15 kg

Ethernet specifications

Transmission specifications: Data transmission speed	1 Gbps/100 Mbps
Transmission specifications: Communication mode	1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
Transmission specifications: Interface	RJ45 (AUTO MDI/MDI-X)
Transmission specifications: Maximum frame size	1518 bytes
Transmission specifications: Maximum segment length	100 m
Transmission specifications: Number of cascaded connections	Consult the manufacturer of the switching hub used.
Transmission specifications: IP version	IPv4

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link IE TSN Remote I/O Module User's Manual (CC-Link IE TSN Communication Mode) (SH-082135ENG-L)	PDF · 14.85MB
CC-Link IE TSN Remote I/O Module User's Manual (CC-Link IE Field Network Communication Mode) (SH-082240ENG-K)	PDF · 18.57MB
Before Using the Product (BCN-P5999-1406E-B)	PDF · 0.23MB
