NZ2GN2S-D41P01 Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GN2S-D41P01 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE TSN
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GN2S-D41P01 be shipped?

NZ2GN2S-D41P01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GN2S-D41P01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GN2S-D41P01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GN2S-D41P01, subject to availability and destination.

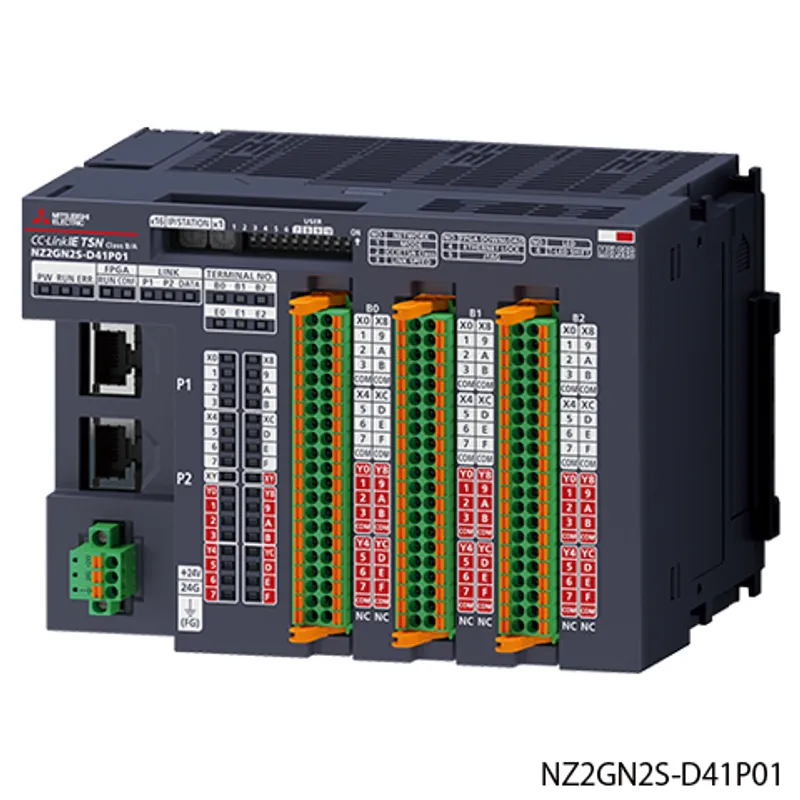

The Mitsubishi Electric NZ2GN2S-D41P01 is a remote I/O in the MELSEC network modules. Input: 48 points, 24 V DC, Input response time: 1 µs or less, Positive/negative common shared type Output: 48 points, 5/12/24 V DC, Sink. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	FPGA
Subtype	Main
Outline	Input: 48 points, 24 V DC, Input response time: 1 µs or less, Positive/negative common shared type Output: 48 points, 5/12/24 V DC, Sink

24 V DC input specifications

Number of points	48 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	4.2 mA TYP. (24 V DC)
Maximum number of simultaneous input points	48 points
ON voltage/ON current	11 V DC or more/3 mA or more and 5 mA or less
OFF voltage/OFF current	5 V DC or less/1.5 mA or less
Input response time: OFF to ON	1 µs or less
Input response time: ON to OFF	1 µs or less
Pulse input speed (maximum speed)	200k pulse/s (200 kHz)
Input common terminal arrangement	4 points/common (positive/negative common shared type)
Filter time	0 µs...2683.6992 ms

5...24 V DC output specifications

Number of points	48 points
Rated load voltage	5/12/24 V DC (4.75...28.8 V DC)
Maximum load current	0.1 A/point
Maximum inrush current	0.4 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.5 V DC (MAX.) 0.1 A
Output response time: OFF to ON	1 µs or less
Output response time: ON to OFF	1 µs or less (rated load, resistive load)
Pulse output speed (maximum speed)	200k pulse/s (200 kHz)
Surge suppressor	Zener diode
Protection function	Not available
Output common terminal arrangement	4 points/common (sink type)

Common specifications

Station type	Remote station
CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
CC-Link IE TSN protocol version: CC-Link IE TSN Class B	Protocol version 2.0/1.0
CC-Link IE TSN protocol version: CC-Link IE TSN Class A	Protocol version 2.0
Cyclic transmission: RX/RY points	112 points
Cyclic transmission: RWr/RWw points	144 points
Maximum response time for time-managed polling: CC-Link IE TSN Class A	2048 µs
Multicast filter	Available
FTP client: Operability verified FTP server software	Microsoft ® Internet Information Services
FTP client: Number of transfer destination settings	1 maximum
Communication speed	1 Gbps/100 Mbps
Communication cable: 1Gbps	Ethernet cable (Category 5e or higher, straight cable)
Communication cable: 100 Mbps	Ethernet cable (Category 5 or higher, straight cable)
Insulated area	Between power supply system and I/O part: Insulation Between communication system and I/O part: Insulation Between terminal blocks of I/O part: Insulation Between channels of I/O part: Non-insulation
Dielectric withstand voltage	Between power supply/communication system terminals and I/O terminals, between earth and I/O terminals: 500 V DC for 1 minute
Insulation resistance	Between power supply/communication system terminals and I/O terminals, between earth and I/O terminals: 10 MΩ or higher by 500 V DC insulation resistance tester
Noise immunity	Noise voltage 500 Vp-p, noise width 1 µs, noise frequency 25...60 Hz (noise simulator condition)
Protection degree	IP2X
External interface	Communication part: RJ45 connector Module power supply part: Spring clamp terminal block I/O part: Spring clamp terminal block
External power supply	24 V DC (ripple rate: 5 % or less) (allowable voltage range: 20.4...28.8 V DC) Current consumption: Total current consumption of main module and extension module
Incorporated FPGA: Device name	5CGXFC7D6F27I7N (Cyclone ® V series manufactured by Intel ® )
Incorporated FPGA: Circuit capacity	LUTs = 149.5K (650K gates), block RAM = 7000K bits
Available capacity for user	LUTs = 35K (150K gates), block RAM = 4400K bits
FPGA system clock	100 MHz
Power consumption	280 mA
External dimensions: Height	109.5 mm
External dimensions: Width	157 mm
External dimensions: Depth	116.5 mm
Weight	0.62 kg

Ethernet specifications

Transmission specifications: Data transmission speed	1 Gbps/100 Mbps
Transmission specifications: Communication mode	1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
Transmission specifications: Interface	RJ45 (AUTO MDI/MDI-X)
Transmission specifications: Maximum frame size	1518 bytes
Transmission specifications: Maximum segment length	100 m
Transmission specifications: Number of cascaded connections	Consult the manufacturer of the switching hub used.
Transmission specifications: IP version	IPv4

FPGA Performance

Operating frequency: Input clock	25 MHz
Operating frequency: Internal logic operating frequency	100 MHz
Operating frequency: External memory operating frequency (DDR3L SDRAM interface)	400 MHz (maximum value)
Series: Manufacturer	Intel
Series	Cyclone V series
Series: Master (frame)	5CGXFC7D6F27I7N
IP, macro (standard circuit part)	PLL SRAM DDR3 SDRAM controller (with UniPHY)
Connected device: MCU	R-IN32M4-CL3 manufactured by Renesas
Connected device: Memory for logging	DDR3L SDRAM
Input/output performance: DC input/output: Input cycle	100 ns (10 MHz)
Input/output performance: DC input/output: Output cycle	100 ns (10 MHz)
Input/output performance: DC input/output: Latency	130 ns
Input/output performance: Differential input/output: Input cycle	10 ns (100 MHz)
Input/output performance: Differential input/output: Output cycle	10 ns (100 MHz)
Input/output performance: Differential input/output: Latency	90 ns
Input/output performance: Analog input/output: Input cycle (ADC)	4 µs (250 kHz)
Input/output performance: Analog input/output: Output cycle (DAC)	6 µs (166.67 kHz)
Input/output performance: Logging: Logging cycle	1 µs (1 MHz)

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
