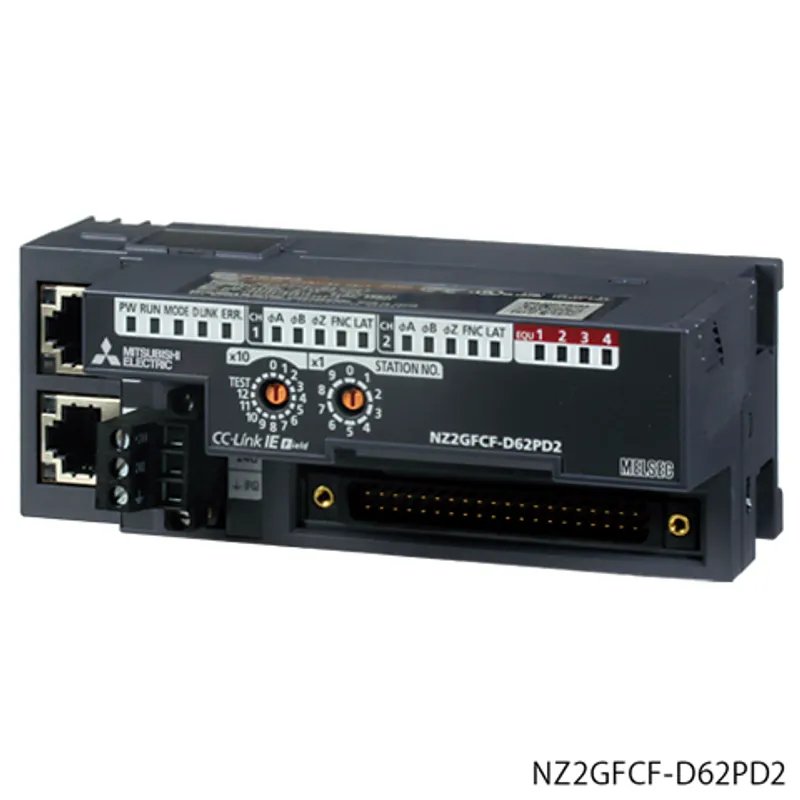

The Mitsubishi Electric NZ2GFCF-D62PD2 is a remote I/O in the MELSEC network modules. 2 channels, 8M/4M/2M/1M/500 k/200 k/100 k/10 kpps, count input signal: differential line driver, 5/24 V DC, external input: 5/24 V DC, coincident output: transistor output (sink), 40-pin connector. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	High-speed counter
Outline	2 channels, 8M/4M/2M/1M/500 k/200 k/100 k/10 kpps, count input signal: differential line driver, 5/24 V DC, external input: 5/24 V DC, coincident output: transistor output (sink), 40-pin connector

Specifications

Number of channels	2 channels
Counting speed switch settings	Differential input: 10k pps / 100k pps / 200k pps / 500k pps / 1M pps / 2M pps (in multiples of 1/2/4) 4M pps (in multiples of 2/4) 8M pps (in multiples of 4) DC input: 10k pps / 100k pps / 200k pps (in multiples of 1/2/4)
Count input signal: Phase	1-phase input (1 multiple/2 multiple), 2-phase input (1 multiple/2 multiple/4 multiple), CW/CCW input
Count input signal: Signal level (øA, øB)	Differential input: EIA Standard RS-422-A Differential line driver level (AM26LS31 [manufactured by Texas Instruments] or equivalent) DC input: 5/24 VDC 4 to 8 mA
Counter: Counting speed (maximum)	Differential input: 8M pulse/s (4 multiples of 2 phases) DC input: 200k pulse/s
Counter: Counting range	32-bit signed binary values (-2147483648...2147483647)
Counter: Type	Addition method, subtraction method linear counter format, ring counter format preset counter function, latch counter function
Counter: Minimum count pulse width (Duty ratio 50 %): 1-phase input (1 multiple/2 multiples), CW/CCW	Differential input: 0.5 µs (ON/OFF 0.25 µs), Minimum pulse width in 2 multiples of 1 phase: 0.25 µs DC input: 5 µs (ON/OFF 2.5 µs), Minimum pulse width in 2 multiples of 1 phase: 2.5 µs
Counter: Minimum count pulse width (Duty ratio 50 %): 2-phase input (1 multiple/2 multiples/4multiples)	Differential input: 0.5 µs (ON/OFF 0.25 µs), Minimum pulse width in 4 multiples of 2 phases: 0.125 µs DC input: 20 µs (ON/OFF 10 µs), Minimum pulse width in 4 multiples of 2 phases: 5 µs
Coincidence detection: Comparison range	32-bit signed binary
Coincidence detection: Comparison condition: Coincidence output	Setting value count value
Coincidence detection: Comparison condition: In-range output	Setting value (lower limit value) ≤ Count value ≤ Setting value (upper limit value)
Coincidence detection: Comparison condition: Not-in-range output	Count value Setting value (upper limit value)
Coincidence detection: Interrupt	None
External input: Phase Z	EIA Standards RS-422-A, differential line driver level (AM26LS31 [manufactured by Texas Instruments] or equivalent): 2 points 5/24 V DC 4...8 mA: 2 points
External input: Function	5/24 V DC 7...12 mA: 2 points
External input: Count value latch	5/24 V DC 7...12 mA: 2 points
External output: Coincidence output	Transistor (sink type) output: 4 points 5...24 V DC 0.1 A/point, 0.4 A/common
Pulse measurement: Measurement item	Pulse width (ON width/OFF width)
Pulse measurement: Measurement resolution	100 ns
Pulse measurement: Measurement points	2 points/channel
Cam switch: Number of output points	16 points
Cam switch: Number of steps per output point	Up to 16 steps/point
Cam switch: Control cycle	0.5 ms
Cam switch: Difference between each output duration in a channel	Within the output response time of the extension output module
PWM output: Output frequency range	DC and up to 200 kHz
PWM output: Duty ratio	Arbitrary value (can be set at 0.1 µs)
Availability of connecting extension module	Connectable (Max. one module)
Station type	Remote device station
Cyclic transmission: RX/RY points	80 points + 16 points × number of extension modules
Cyclic transmission: RWr/RWw points	64 points
Module power supply: Voltage	24 V DC (20.4...26.4 V DC)
Module power supply: Current	0.22 A (at 24 V DC)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (M2.5 screw) I/O part: 40-pin connector (sold separately)
External interface: Applicable connector	A6CON1, A6CON2, A6CON4 (sold separately)
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height	50 mm
External dimensions: Width	133 mm
External dimensions: Depth	68 mm
Weight	0.25 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
