NZ2GFCE3N-32DT Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GFCE3N-32DT · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GFCE3N-32DT be shipped?

NZ2GFCE3N-32DT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GFCE3N-32DT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GFCE3N-32DT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GFCE3N-32DT, subject to availability and destination.

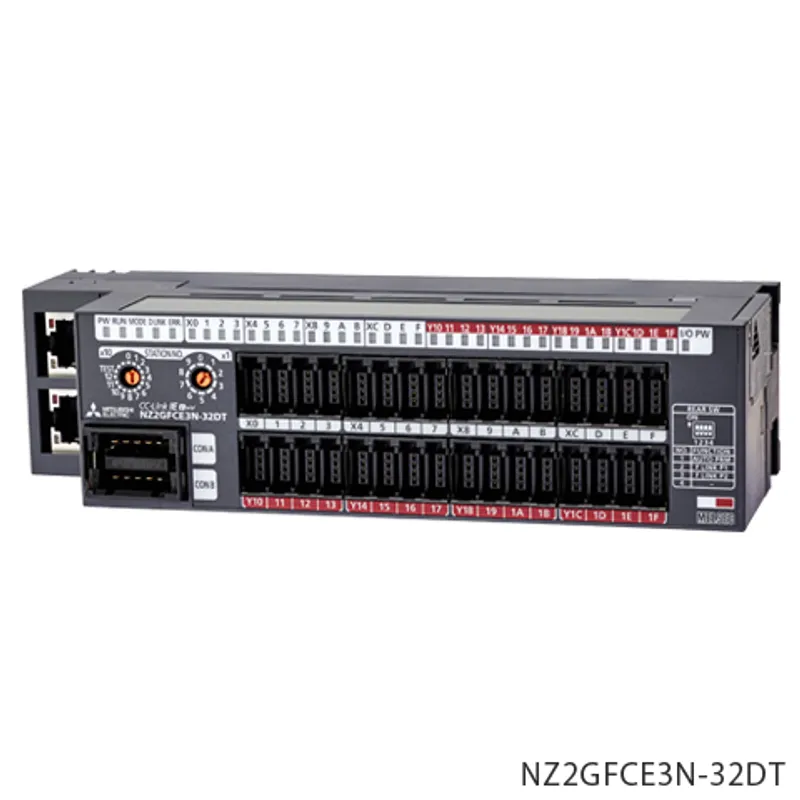

The Mitsubishi Electric NZ2GFCE3N-32DT is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC, 4 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, positive common, transistor output: 16 points, 24 V DC, 0.5 A/point, 4 A/common, response time: 1.5 ms, sink type, 32 points/common, 3-wire sensor connector (e-CON) type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	I/O
Outline	DC input: 16 points, 24 V DC, 4 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, positive common, transistor output: 16 points, 24 V DC, 0.5 A/point, 4 A/common, response time: 1.5 ms, sink type, 32 points/common, 3-wire sensor connector (e-CON) type

Input specifications

Input type	DC input (positive common type)
Number of input points	16 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	4.0 mA TYP. (24 V DC)
Maximum number of simultaneous input points	100 %
ON voltage/ON current	17 V or more/3 mA or more
OFF voltage/OFF current	5 V or less/1.5 mA or less
Input resistance	5.7 kΩ
Input response time: OFF to ON	0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input response time: ON to OFF	0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input isolation method	Photocoupler

Output specifications

Output type	Transistor output (sink type)
Number of output points	16 points
Rated load voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Maximum load current	0.5 A/point, 4 A/common
Maximum inrush current	Current is limited by the overload protection function.
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.3 V DC or less (TYP.) 0.5 A, 0.6 V DC or less (MAX.) 0.5 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1.5 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function: Overheat protection function	Activated in increments of 1 point.
Protection function: Overload protection function	Limit current with overload protection at overcurrent detection: 1 A or more/point Activated in increments of 1 point.
External power supply for output part: Voltage	24 V DC (ripple ratio: within 5 %)
External power supply for output part: Current	10 mA or less (at TYP. 24 V DC and all points ON), excluding external load current
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 510 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Common terminal arrangement	32 points/common (3-wire, sensor connector (e-CON) type)
Availability of connecting extension module	Connectable (Max. one module)
Station type	Remote device station
Cyclic transmission: RX/RY points	32 points + 16 points × number of extension modules
Cyclic transmission: RWr/RWw points	20 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	110 mA or less (at 24 V DC, all points ON)
External interface	Communication part: RJ45 connector Module power supply part: One-touch connector plug for power supply and FG I/O part: Sensor connector (e-CON)
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height	50 mm
External dimensions: Width	194 mm
External dimensions: Depth	68 mm
Weight	0.30 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
