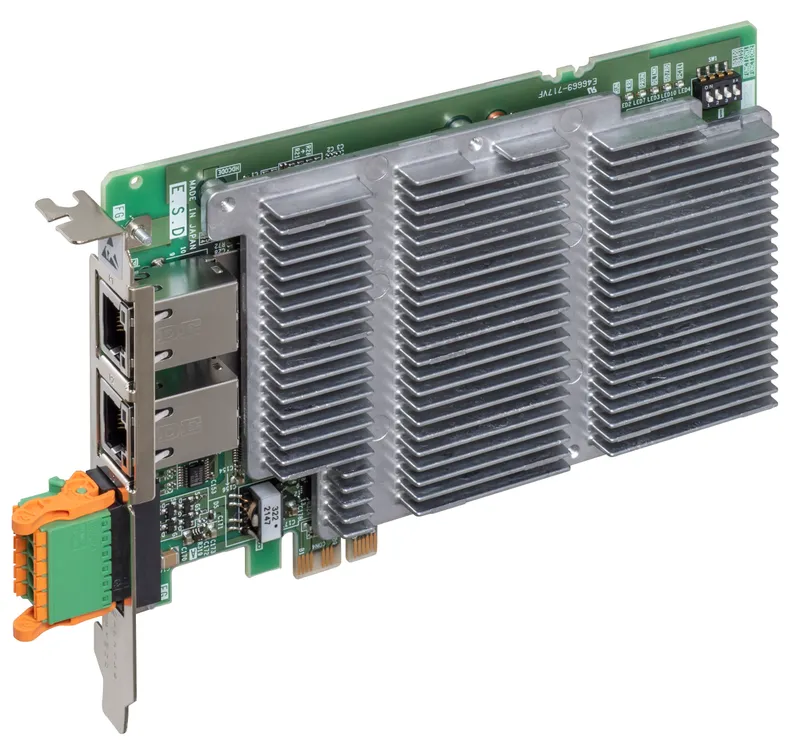

Mitsubishi Electric MR-EM441G
Mitsubishi Motion controller Embedded Type Servo System Controller
- MPN
- MR-EM441G
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric MR-EM441G?
The Mitsubishi Electric MR-EM441G is a embedded Type Servo System Controller in the Motion controller. Motion control board, Up to 64 axes. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | Motion controller |
| Category | Embedded Type Servo System Controller |
| Type | Motion control board |
| Outline | Motion control board, Up to 64 axes |
Control specifications
| System functions: Number of control axes | Up to 64 axes |
| System functions: Maximum number of connectable stations | 120 stations |
| System functions: Operation cycle settings [μs] | 62.5 *6 , 125, 250, 500, 1000, 2000 |
| System functions: Operation mode settings | High-speed operation mode, normal operation mode |
| Servo amplifier | MR-J5-G, MR-J5W2-G, MR-J5W3-G |
| Operation functions *1 *2: JOG operation | Provided |
| Operation functions *1 *2: Incremental feed | Provided |
| Operation functions *1 *2: Automatic operation | Point table method |
| Operation functions *1 *2: Linear interpolation | Point table method (up to 4 axes) |
| Operation functions *1 *2: Circular interpolation | Point table method (2 axes) |
| Operation functions *1 *2: Home position return | Dog method, data set method, stopper method, dog cradle method, limit switch combined method, limit switch front end method, dog front end method, scale home position signal detection method, scale home position signal detection method 2, driver method *8 |
| Operation functions *1 *2: Home position reset | Provided |
| Application functions 1: Electronic gear | Electronic gear numerator: 1 to 5242879 Electronic gear denominator: 1 to 589823 |
| Application functions 1: Speed units | Command unit/min, command unit/s |
| Application functions 1: Acceleration/deceleration | Linear acceleration/deceleration, smoothing filter, S-curve acceleration/deceleration, jerk ratio acceleration/deceleration, vibration suppression command filter 1 |
| Application functions 1: Stop function | Forced stop (select the signal in the parameters), operation stop, rapid stop |
| Application functions 2 | Hardware stroke limit, software stroke limit, interlock, rough match output, torque limit, command change (position/speed/time constant), backlash, position switch, absolute position detection system, other axes start, pass position interrupt, I/O device, pressure control *7 , continuous operation to torque control, etc. |
| Auxiliary function 1: Parameter read/write | Provided |
| Auxiliary function 1: Alarm/system error | Provided |
| Auxiliary function 1: Monitor | Current position, feedback position, speed command, position droop, electrical current command, alarm number, external signal status, etc. |
| Auxiliary function 1: High speed monitor | Current position, feedback position, moving speed, feedback moving speed, external signal, electrical current feedback, position droop |
| Auxiliary function 1: Interrupt | During start operation, operation stoppage, when alarm occurs (servo alarm/operation alarm), etc. |
| Auxiliary function 2 | User watchdog function, software reboot function, sampling, operation cycle monitor function, servo amplifier disconnect, file control, time management, link-down detection function, event history |
| Board ID | 0 to 3 |
Module specifications
| Maximum number of connectable stations | 121 stations (including the master station) |
| Servo amplifier connection method | CC-Link IE TSN |
| CC-Link IE TSN Class | B, A (protocol version 2.0) |
| Number of CC-Link IE TSN lines | 2 lines |
| Maximum distance between stations [m] | 100 |
| PERIPHERAL I/F | Ethernet |
| Number of input points | 4 points |
| Input response time [μs] | 200 |
| Number of output points | 4 points |
| Output response time [μs] | 1 |
| Number of Simple Motion boards for one computer | 4 |
| Bus specification | PCI Express ® 2.0 × 1 |
| Operating ambient temperature [°C] | 0 to 55 (secure an air flow) |
| Cooling method | Air cooling (cooling fan required) |
| Current consumption [A] | 3.3 V DC ± 9 % 1.0 A or less 12 V DC ± 8 % 1.4 A or less |
| Exterior dimensions [mm] | Half-length (167.65 × 111.15) |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- Motion Control Board User's Manual (Motion Control) (IB-0300599ENG-D)
- Motion Control Board User's Manual (Network) (IB-0300600ENG-D)
- Motion Control Board User's Manual (Motion API) (IB-0300601ENG-C)
- MELSOFT EM Motion SDK Installation Instructions (BCN-B62008-435-B)
- MR-EM441G Before Using the Product (BCN-B62008-449E-C)
