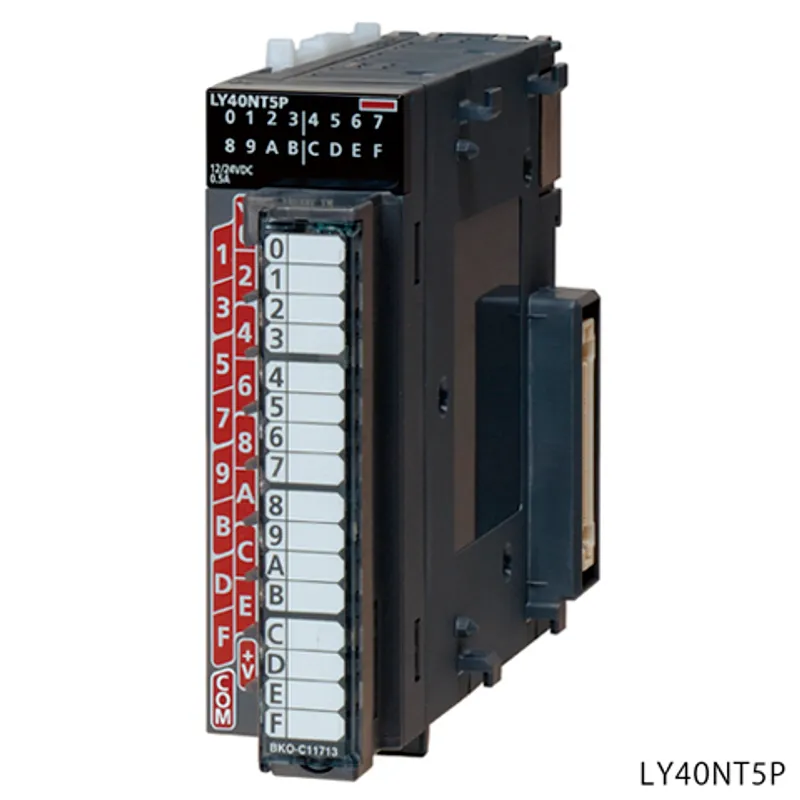

What is the Mitsubishi Electric LY40NT5P?

The Mitsubishi Electric LY40NT5P is a output in the MELSEC-L Series. Transistor output: 16 points, 12...24 V DC, 0.5 A/point, 5 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryOutput
TypeTransistor output (sink)
Sales status2027/09 To be end of order (Mitsubishi Electric)
OutlineTransistor output: 16 points, 12...24 V DC, 0.5 A/point, 5 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block

Output specifications

Output typeTransistor output (sink type)
Number of output points16 points
Rated load voltage10.2...28.8 V DC
Maximum load current0.5 A/point, 5 A/common
Maximum inrush currentCurrent is limited by the overload protection function.
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ON0.2 V DC (TYP.) 0.5 A, 0.3 V DC (MAX.) 0.5 A
Output response time: OFF to ON0.5 ms or less
Output response time: ON to OFF1 ms or less (rated load, resistive load)
Surge suppressorZener diode
FuseNone
Protection function: Overheat protection functionAvailable
Protection function: Overload protection functionAvailable
External power supply: Voltage12/24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
External power supply: Current9 mA (at 24 V DC)
Output common terminal arrangement16 points/common

Common specifications

Dielectric withstand voltage510 V AC/minute (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)100 mA
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth117 mm
Weight0.15 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

LY40NT5P: frequently asked questions

When can LY40NT5P be shipped?

LY40NT5P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LY40NT5P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LY40NT5P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LY40NT5P, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric LY10R2 – Mitsubishi MELSEC-L Series Output
Mitsubishi Electric
LY10R2

Mitsubishi MELSEC-L Series Output

Mitsubishi Electric LY18R2A – Mitsubishi MELSEC-L Series Output
Mitsubishi Electric
LY18R2A

Mitsubishi MELSEC-L Series Output

Mitsubishi Electric LY20S6 – Mitsubishi MELSEC-L Series Output
Mitsubishi Electric
LY20S6

Mitsubishi MELSEC-L Series Output

Mitsubishi Electric LY28S1A – Mitsubishi MELSEC-L Series Output
Mitsubishi Electric
LY28S1A

Mitsubishi MELSEC-L Series Output

Mitsubishi Electric LY40PT5P – Mitsubishi MELSEC-L Series Output
Mitsubishi Electric
LY40PT5P

Mitsubishi MELSEC-L Series Output

Mitsubishi Electric LY41NT1P – Mitsubishi MELSEC-L Series Output
Mitsubishi Electric
LY41NT1P

Mitsubishi MELSEC-L Series Output

Mitsubishi Electric LY41PT1P – Mitsubishi MELSEC-L Series Output
Mitsubishi Electric
LY41PT1P

Mitsubishi MELSEC-L Series Output

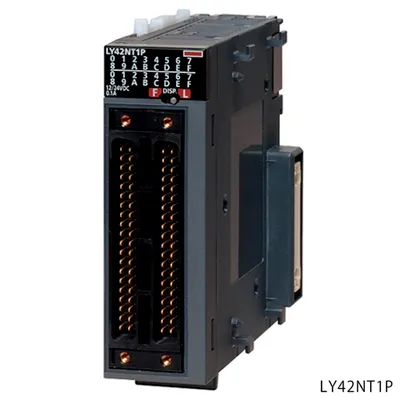

Mitsubishi Electric LY42NT1P – Mitsubishi MELSEC-L Series Output
