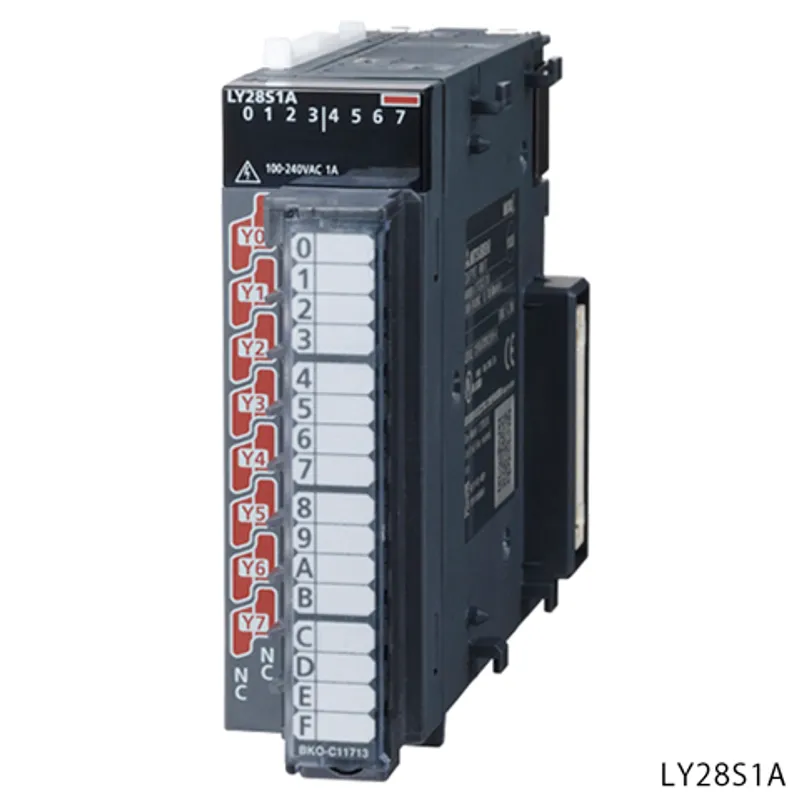

Mitsubishi Electric LY28S1A

Mitsubishi MELSEC-L Series Output

MPN
LY28S1A
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original LY28S1A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric LY28S1A?

The Mitsubishi Electric LY28S1A is a output in the MELSEC-L Series. Triac output: 8 points, 100...240 V AC, 1 A/point, 8 A/module, response time: 1 ms + 0.5 cycles, all points independent common, 18-point terminal block. Mitsubishi Electric has discontinued it (2024/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryOutput
TypeTriac output
Sales status2024/09 Discontinued (Mitsubishi Electric)
OutlineTriac output: 8 points, 100...240 V AC, 1 A/point, 8 A/module, response time: 1 ms + 0.5 cycles, all points independent common, 18-point terminal block

Output specifications

Output typeTRIAC output
Number of output points8 points
Rated load voltage, frequency100...240 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Maximum load current1 A/point, 8 A/common, refer to the derating chart.
Load voltage distortion rateWithin 5 %
Maximum load voltage264 V AC
Minimum load voltage/current24 V AC 100 mA, 100 V AC 25 mA, 240 V AC 25 mA
Maximum inrush current20 A/cycle or less
Leakage current at OFF3 mA or less (at 240 V AC, 60 Hz), 1.5 mA or less (at 120 V AC, 60 Hz)
Maximum voltage drop at ON1.5 V or less (at 0.6 A)
Output response time: OFF to ON1 ms + 0.5 cycles or less
Output response time: ON to OFF1 ms + 0.5 cycles or less (rated load, resistive load)
Surge suppressorCR absorber
FuseNone
Output common terminal arrangementAll points independent

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage2300 V AC/minute (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP1X
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)200 mA (TYP. all points ON)
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth117 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

LY28S1A: frequently asked questions

Can I still buy the LY28S1A now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the LY28S1A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can LY28S1A be shipped?

LY28S1A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LY28S1A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LY28S1A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LY28S1A, subject to availability and destination.
