Mitsubishi Electric LD77MS4

Mitsubishi MELSEC-L Series Simple motion

MPN
LD77MS4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

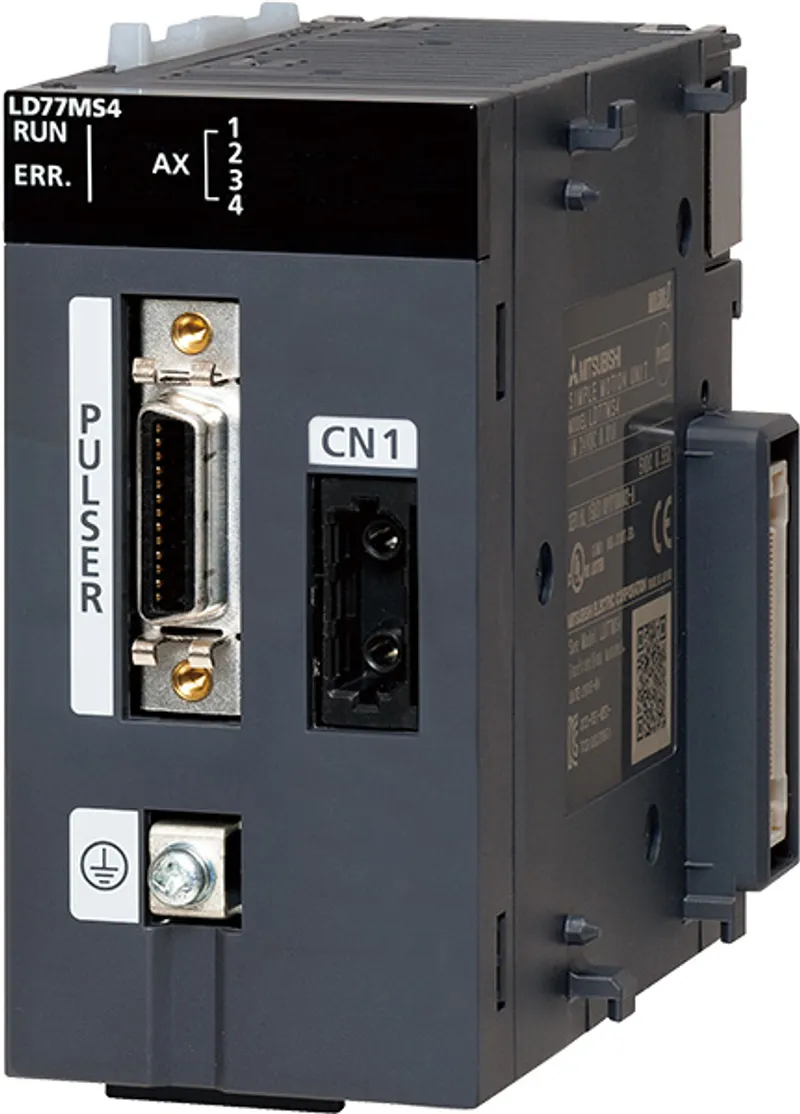

What is the Mitsubishi Electric LD77MS4?

The Mitsubishi Electric LD77MS4 is a simple motion in the MELSEC-L Series. Maximum number of control axes: 4 axes, SSCNET III/H connection. Mitsubishi Electric has announced its discontinuation (2027/10 To be discontinued) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategorySimple motion
TypeSSCNETⅢ/H-compatible
Sales status2027/10 To be discontinued (Mitsubishi Electric)
OutlineMaximum number of control axes: 4 axes, SSCNET III/H connection

Control specifications

Number of control axesUp to 4 axes (virtual servo amplifier axis included)
Operation cycle (operation cycle settings) *60.88 ms, 1.77 ms
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation
Control methodPositioning control, path control, speed control, speed-position switching control, position-speed switching control, speed-torque control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, near pass function
Synchronous controlSynchronous encoder input, cam, phase compensation, cam auto-generation
Control unitmm, inch, degree, pulse
Positioning control methodMotion profile table
Number of positioning data600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works2 or a sequence program.)
BackupParameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position returnProximity dog method, count method 1, count method 2, data set method, scale home position signal detection method (fast home position return control, home position return retry function, and home position shift function provided)
Positioning control: Linear control1-axis linear control, 2-axis linear interpolation control, 3-axis linear interpolation control, 4-axis linear interpolation control *2 (vector speed, reference axis speed)
Positioning control: Fixed-feed control1-axis fixed-pitch feed, 2-axis fixed-pitch feed, 3-axis fixed-pitch feed, 4-axis fixed-pitch feed
Positioning control: 2-axis circular interpolation controlAuxiliary point-specified, central point-specified
Positioning control: Speed control1-axis speed control, 2-axis speed control, 3-axis speed control, 4-axis speed control
Positioning control: Speed-position switching controlINC mode, ABS mode
Positioning control: Position-speed switching controlINC mode
Positioning control: Current value changePositioning data, start No. for a current value changing
Manual controlJOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque controlSpeed control not including position loop, torque control, continuous operation to torque control
Absolute position systemProvided (Made compatible by setting battery to servo amplifier.)
Speed limitSpeed limit value, JOG speed limit value
Torque limit functionTorque limit value same setting, torque limit value individual setting
Forced stopValid/invalid setting
Software stroke limit functionMovable range check with feed current value or with machine feed value
Hardware stroke limit functionProvided
Speed changeProvided
Override1 to 300 %
Acceleration/deceleration processing changeAcceleration/deceleration time
Torque change functionProvided
Torque limit value changeProvided
Target position change functionSpeed to a target position address and a target position is changeable.
M-code output functionProvided
Step functionDeceleration unit step, data No. unit step
Skip functionVia a PLC CPU or an external command signal
Teaching functionProvided
Parameter initialization functionProvided
Mark detection functionContinuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signal4 points
Mark detection function: Mark detection setting4 settings
Optional data monitor functionUp to 4 points/axis
Driver communication functionProvided
Connect/disconnect function of SSCNET communicationProvided
Amplifier-less operation functionProvided
Digital oscilloscope functionBit data: 8 channels, word data: 4 channels *4

Module specifications

Servo amplifier connection methodSSCNET III/H
Number of occupied I/O points32 points (I/O allocation: intelligent function module 32 points)
Number of module occupied slots2
5 V DC internal current consumption [A]0.55
Mass [kg]0.22
Exterior dimensions [mm]90.0 (H) x 45.0 (W) x 95.0 (D)
Note1. The maximum number of control axes for LD77MS2 is two axes. Use LD77MS4 or LD77MS16 to control three or more axes.

LD77MS4: frequently asked questions

When can LD77MS4 be shipped?

LD77MS4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LD77MS4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LD77MS4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LD77MS4, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric LD77MH16 – Mitsubishi MELSEC-L Series Simple motion
Mitsubishi Electric
LD77MH16

Mitsubishi MELSEC-L Series Simple motion

Mitsubishi Electric LD77MH4 – Mitsubishi MELSEC-L Series Simple motion
Mitsubishi Electric
LD77MH4

Mitsubishi MELSEC-L Series Simple motion

Mitsubishi Electric LD77MS16 – Mitsubishi MELSEC-L Series Simple motion
Mitsubishi Electric
LD77MS16

Mitsubishi MELSEC-L Series Simple motion

Mitsubishi Electric LD77MS2 – Mitsubishi MELSEC-L Series Simple motion
Mitsubishi Electric
LD77MS2

Mitsubishi MELSEC-L Series Simple motion

Mitsubishi Electric LG69 – Mitsubishi MELSEC-L Series Space module
Mitsubishi Electric
LG69

Mitsubishi MELSEC-L Series Space module

Mitsubishi Electric LH42C4NT1P – Mitsubishi MELSEC-L Series I/O
Mitsubishi Electric
LH42C4NT1P

Mitsubishi MELSEC-L Series I/O

Mitsubishi Electric LH42C4PT1P – Mitsubishi MELSEC-L Series I/O
Mitsubishi Electric
LH42C4PT1P

Mitsubishi MELSEC-L Series I/O

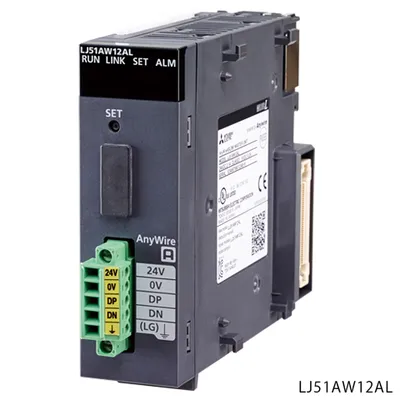

Mitsubishi Electric LJ51AW12AL – Mitsubishi MELSEC-L Series AnyWire
