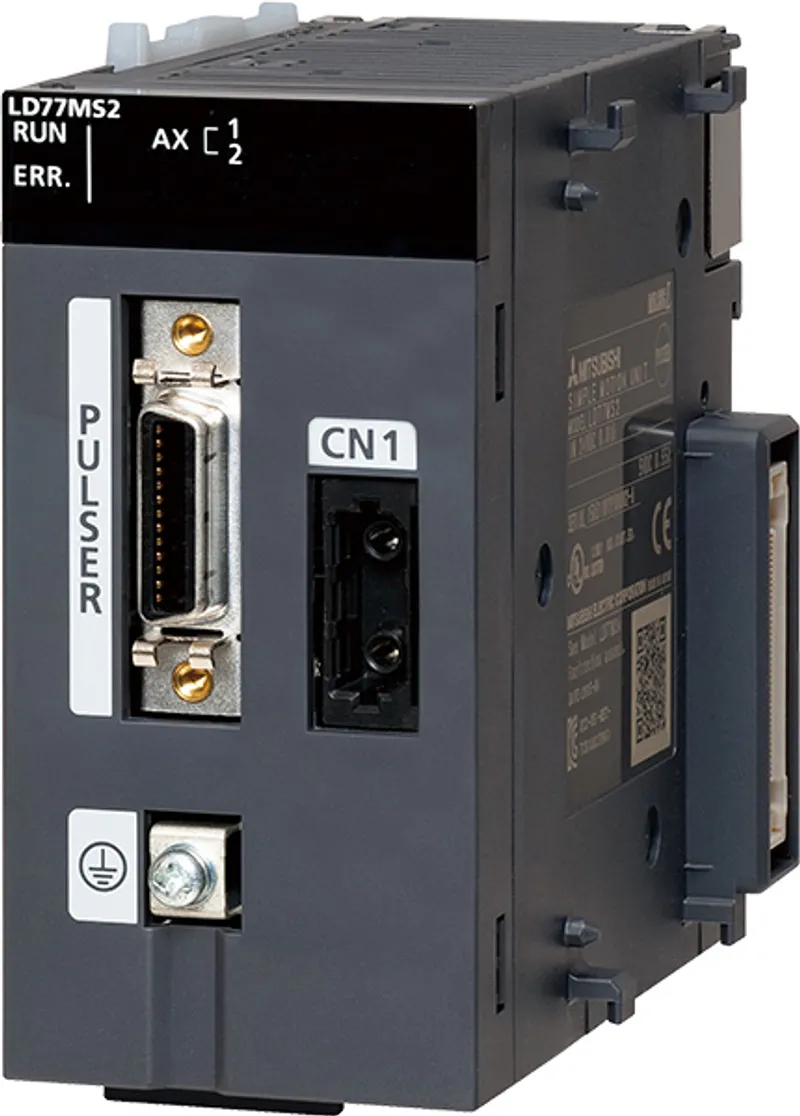

LD77MS2 Mitsubishi MELSEC-L Series Simple motion

MPN: LD77MS2 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-L Series – Simple motion/positioning
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can LD77MS2 be shipped?

LD77MS2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LD77MS2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LD77MS2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LD77MS2, subject to availability and destination.

The Mitsubishi Electric LD77MS2 is a simple motion in the MELSEC-L Series. Maximum number of control axes: 2 axes, SSCNET III/H connection. Mitsubishi Electric has announced its discontinuation (2027/10 To be discontinued) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-L Series
Category	Simple motion
Type	SSCNETⅢ/H-compatible
Sales status	2027/10 To be discontinued (Mitsubishi Electric)
Outline	Maximum number of control axes: 2 axes, SSCNET III/H connection

Control specifications

Number of control axes	Up to 2 axes (virtual servo amplifier axis included)
Operation cycle (operation cycle settings) *6	0.88 ms, 1.77 ms
Interpolation function	Linear interpolation (up to 2 axes), 2-axis circular interpolation
Control method	Positioning control, path control, speed control, speed-position switching control, position-speed switching control, speed-torque control
Acceleration/deceleration processing	Trapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation function	Backlash compensation, electronic gear, near pass function
Synchronous control	Synchronous encoder input, cam, phase compensation, cam auto-generation
Control unit	mm, inch, degree, pulse
Positioning control method	Motion profile table
Number of positioning data	600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works2 or a sequence program.)
Backup	Parameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position return	Proximity dog method, count method 1, count method 2, data set method, scale home position signal detection method (fast home position return control, home position return retry function, and home position shift function provided)
Positioning control: Linear control	1-axis linear control, 2-axis linear interpolation control (vector speed, reference axis speed)
Positioning control: Fixed-feed control	1-axis fixed-pitch feed, 2-axis fixed-pitch feed
Positioning control: 2-axis circular interpolation control	Auxiliary point-specified, central point-specified
Positioning control: Speed control	1-axis speed control, 2-axis speed control
Positioning control: Speed-position switching control	INC mode, ABS mode
Positioning control: Position-speed switching control	INC mode
Positioning control: Current value change	Positioning data, start No. for a current value changing
Manual control	JOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque control	Speed control not including position loop, torque control, continuous operation to torque control
Absolute position system	Provided (Made compatible by setting battery to servo amplifier.)
Speed limit	Speed limit value, JOG speed limit value
Torque limit function	Torque limit value same setting, torque limit value individual setting
Forced stop	Valid/invalid setting
Software stroke limit function	Movable range check with feed current value or with machine feed value
Hardware stroke limit function	Provided
Speed change	Provided
Override	1 to 300 %
Acceleration/deceleration processing change	Acceleration/deceleration time
Torque change function	Provided
Torque limit value change	Provided
Target position change function	Speed to a target position address and a target position is changeable.
M-code output function	Provided
Step function	Deceleration unit step, data No. unit step
Skip function	Via a PLC CPU or an external command signal
Teaching function	Provided
Parameter initialization function	Provided
Mark detection function	Continuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signal	2 points
Mark detection function: Mark detection setting	4 settings
Optional data monitor function	Up to 4 points/axis
Driver communication function	Provided
Connect/disconnect function of SSCNET communication	Provided
Amplifier-less operation function	Provided
Digital oscilloscope function	Bit data: 8 channels, word data: 4 channels *4

Module specifications

Servo amplifier connection method	SSCNET III/H (1 line)
Maximum distance between stations [m]	SSCNET III/H: 100, SSCNET III: 50
PERIPHERAL I/F	Via a CPU module (USB, Ethernet)
Number of occupied I/O points	32 points (I/O allocation: intelligent function module 32 points)
Number of module occupied slots	2
5 V DC internal current consumption [A]	0.55
Mass [kg]	0.22
Exterior dimensions [mm]	90.0 (H) x 45.0 (W) x 95.0 (D)
Note	1. The maximum number of control axes for LD77MS2 is two axes. Use LD77MS4 or LD77MS16 to control three or more axes.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC-Q/L QD77MS/QD77GF/LD77MS/LD77MH Simple Motion Module User's Manual (Synchronous Control) (IB-0300174-N)	PDF · 2.10MB
MELSEC-L LD77MS Simple Motion Module User's Manual (Positioning Control) (IB-0300211-H)	PDF · 7.73MB
LD77MS2/LD77MS4/LD77MS16 Before Using the Product (BCN-B62008-321E-G)	PDF · 0.16MB
