Mitsubishi Electric LD75D2

Mitsubishi MELSEC-L Series Positioning

MPN
LD75D2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

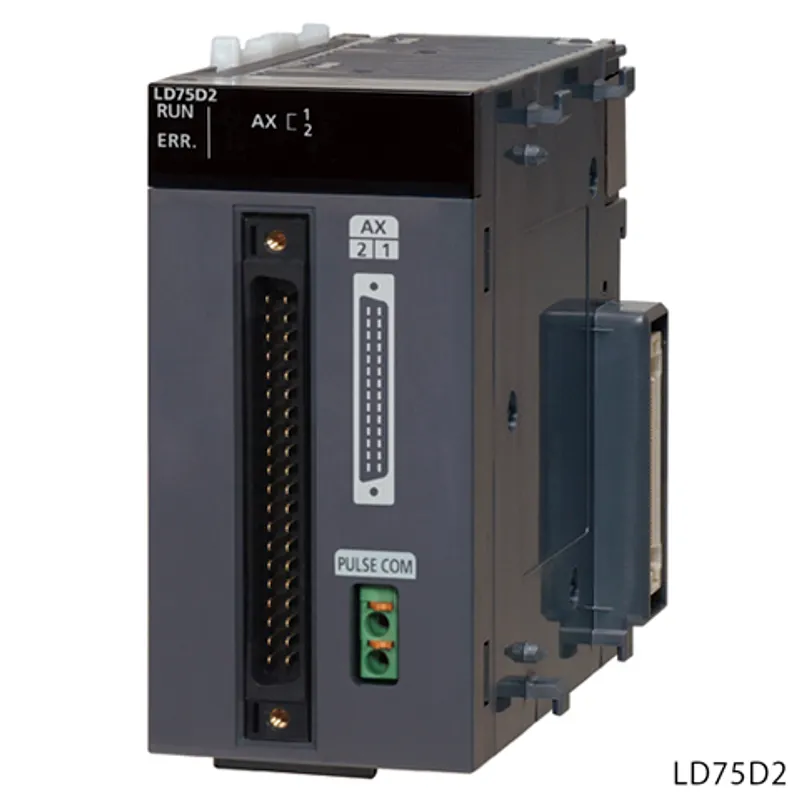

What is the Mitsubishi Electric LD75D2?

The Mitsubishi Electric LD75D2 is a positioning in the MELSEC-L Series. 2 axes, 2-axis linear interpolation, 2-axis circular interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse, 4 Mpps, 40-pin connector, differential driver output. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryPositioning
TypeDifferential output
Sales status2027/09 To be end of order (Mitsubishi Electric)
Outline2 axes, 2-axis linear interpolation, 2-axis circular interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse, 4 Mpps, 40-pin connector, differential driver output

Specifications

No. of control axes2 axes
Interpolation function2-axis linear interpolation 2-axis circular interpolation
Control methodPTP (Point To Point) control, path control (line, arc, and helical can be set), speed control, speed-position switching control, position-speed switching control
Control unitmm, inch, degree, pulse
Positioning data600 data /axis
BackupParameters, positioning data, and block start data can be saved on flash ROM (battery-less backup).
Positioning: Positioning system: PTP controlIncremental system/absolute system
Positioning: Positioning system: Speed-position switching controlIncremental system/absolute system
Positioning: Positioning system: Position-speed switching controlIncremental system
Positioning: Positioning system: Path controlIncremental system/absolute system
Positioning: Positioning range: In absolute system・ -214748364.8...214748364.7 µm ・ -21474.83648...21474.83647 inch ・ 0...359.99999 degree ・ -2147483648...2147483647 pulse
Positioning: Positioning range: In incremental system・ -214748364.8...214748364.7 µm ・ -21474.83648...21474.83647 inch ・ -21474.83648...21474.83647 degree ・ -2147483648...2147483647 pulse
Positioning: Positioning range: In speed-position switching control (INC mode) / position-speed switching control・ 0...214748364.7 µm ・ 0...21474.83647 inch ・ 0...21474.83647 degree ・ 0...2147483647 pulse
Positioning: Positioning range: In speed-position switching control (ABS mode)・ 0...359.99999 degree
Positioning: Speed command0.01...20000000.00 mm/min 0.001...2000000.000 inch/min 0.001...2000000.000 degree/min 1...4000000 pulse/s
Positioning: Acceleration/deceleration processTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Positioning: Acceleration/deceleration time1...8388608 ms Four patterns can be set for each of acceleration time and deceleration time
Positioning: Sudden stop deceleration time1...8388608 ms
Starting time: 1-axis linear control1.5 ms
Starting time: 1-axis speed control1.5 ms
Starting time: 2-axis linear interpolation control (Composite speed)1.5 ms
Starting time: 2-axis linear interpolation control (Reference axis speed)1.5 ms
Starting time: 2-axis circular interpolation control2.0 ms
Starting time: 2-axis speed control1.5 ms
Starting time: 3-axis linear interpolation control (Composite speed)1.7 ms
Starting time: 3-axis linear interpolation control (Reference axis speed)1.7 ms
Starting time: 3-axis helical interpolation control2.6 ms
Starting time: 3-axis speed control1.7 ms
Starting time: 4-axis linear interpolation control1.8 ms
Starting time: 4-axis speed control1.8 ms
Starting time: Factors in starting time extensionThe following times will be added to the starting time in the described conditions: • S-curve acceleration/deceleration is selected: 0.1 ms • Other axis is in operation: 0.5 ms • During continuous positioning control: 0.3 ms • During continuous path control: 0.3 ms
Pulse output systemDifferential driver output system
Maximum output pulse4M pulse/s
Maximum connection distance between servos10 m
External interface40-pin connector, differential driver common terminal
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.62 A
External dimensions: Height90 mm
External dimensions: Width45 mm
External dimensions: Depth95 mm
Weight0.18 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

LD75D2: frequently asked questions

When can LD75D2 be shipped?

LD75D2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LD75D2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LD75D2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LD75D2, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric LD40PD01 – Mitsubishi MELSEC-L Series Flexible high-speed I/O control
Mitsubishi Electric
LD40PD01

Mitsubishi MELSEC-L Series Flexible high-speed I/O control

Mitsubishi Electric LD62 – Mitsubishi MELSEC-L Series High-speed counter
Mitsubishi Electric
LD62

Mitsubishi MELSEC-L Series High-speed counter

Mitsubishi Electric LD62D – Mitsubishi MELSEC-L Series High-speed counter
Mitsubishi Electric
LD62D

Mitsubishi MELSEC-L Series High-speed counter

Mitsubishi Electric LD75D1 – Mitsubishi MELSEC-L Series Positioning
Mitsubishi Electric
LD75D1

Mitsubishi MELSEC-L Series Positioning

Mitsubishi Electric LD75D4 – Mitsubishi MELSEC-L Series Positioning
Mitsubishi Electric
LD75D4

Mitsubishi MELSEC-L Series Positioning

Mitsubishi Electric LD75P1 – Mitsubishi MELSEC-L Series Positioning
Mitsubishi Electric
LD75P1

Mitsubishi MELSEC-L Series Positioning

Mitsubishi Electric LD75P2 – Mitsubishi MELSEC-L Series Positioning
Mitsubishi Electric
LD75P2

Mitsubishi MELSEC-L Series Positioning

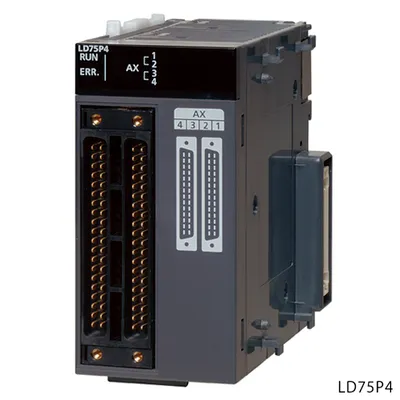

Mitsubishi Electric LD75P4 – Mitsubishi MELSEC-L Series Positioning
