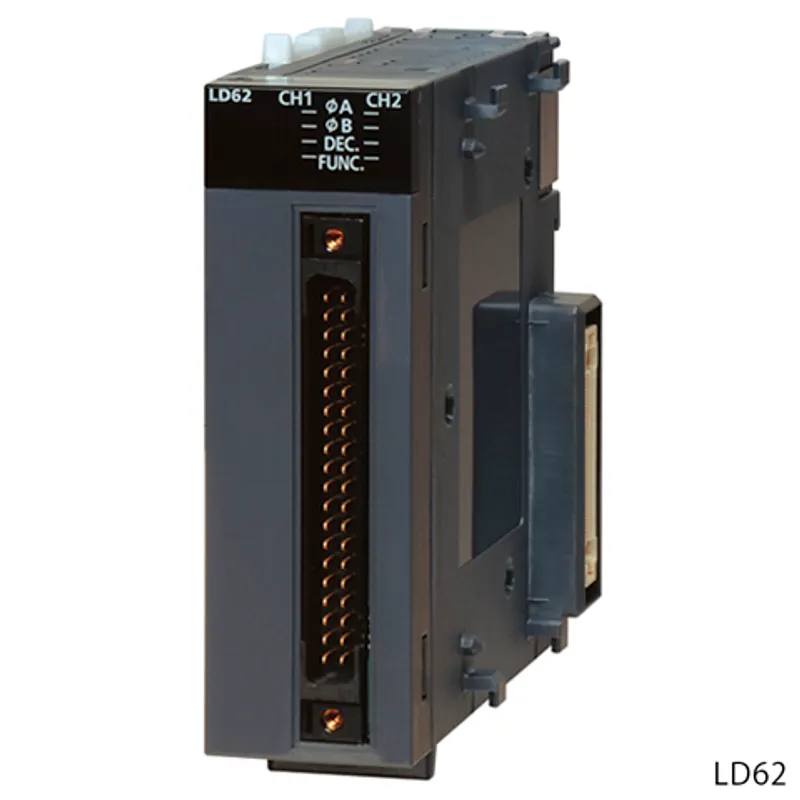

Mitsubishi Electric LD62

Mitsubishi MELSEC-L Series High-speed counter

MPN
LD62
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric LD62?

The Mitsubishi Electric LD62 is a high-speed counter in the MELSEC-L Series. 2 channels, 200/100/10 kpps, count input signal: 5/12/24 V DC, external input: 5/12/24 V DC, coincidence output: transistor output (sink), 40-pin connector. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryHigh-speed counter
Type5/12/24 V DC input
Sales status2027/09 To be end of order (Mitsubishi Electric)
Outline2 channels, 200/100/10 kpps, count input signal: 5/12/24 V DC, external input: 5/12/24 V DC, coincidence output: transistor output (sink), 40-pin connector

Specifications

Number of channels2 channels
Counting speed switch settings200k (100k...200k pps), 100k (10k...100k pps), 10k (10k pps or less)
Count input signal: Phase1-phase input (1 multiple/2 multiple), 2-phase input (1 multiple/2 multiple/4 multiple), CW/CCW input
Count input signal: Signal level (øA, øB)5/12/24 V DC 2...5 mA
Counter: Counting speed (maximum)200k pulse/s, 100k pulse/s, 10k pulse/s
Counter: Counting range32-bit signed binary values (-2147483648...2147483647)
Counter: TypeUP/DOWN Preset counter + Ring counter function
Counter: Minimum count pulse width (Duty ratio 50 %)200k pulse/s: 5 µs (ON/OFF 2.5 µs), Minimum phase difference for 2-phase input: 1.25 µs 100k pulse/s: 10 µs (ON/OFF 5 µs), Minimum phase difference for 2-phase input: 2.5 µs 10k pulse/s: 100 µs (ON/OFF 50 µs), Minimum phase difference for 2-phase input: 25 µs
Coincidence detection: Comparison range32-bit signed binary
External input: Preset5/12/24 V DC 2...5 mA
External input: Function start5/12/24 V DC 2...5 mA
External output: Coincidence outputTransistor (sink type) output: 2 points/channel 12/24 V DC 0.5 A/point, 2 A/common
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.31 A
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth95 mm
Weight0.13 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

LD62: frequently asked questions

When can LD62 be shipped?

LD62 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LD62 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LD62 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LD62, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

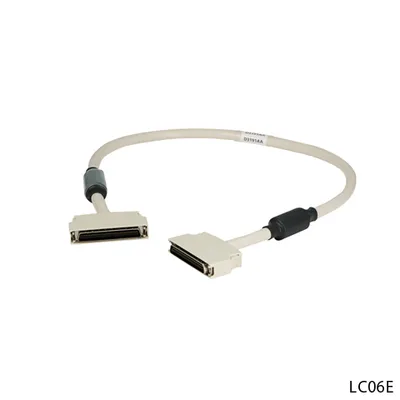

Mitsubishi Electric LC06E – Mitsubishi MELSEC-L Series Extension cable
Mitsubishi Electric
LC06E

Mitsubishi MELSEC-L Series Extension cable

Mitsubishi Electric LC10E – Mitsubishi MELSEC-L Series Extension cable
Mitsubishi Electric
LC10E

Mitsubishi MELSEC-L Series Extension cable

Mitsubishi Electric LC30E – Mitsubishi MELSEC-L Series Extension cable
Mitsubishi Electric
LC30E

Mitsubishi MELSEC-L Series Extension cable

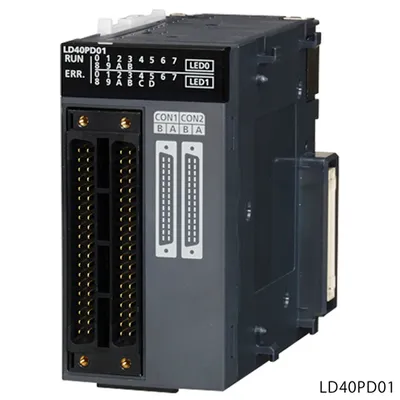

Mitsubishi Electric LD40PD01 – Mitsubishi MELSEC-L Series Flexible high-speed I/O control
Mitsubishi Electric
LD40PD01

Mitsubishi MELSEC-L Series Flexible high-speed I/O control

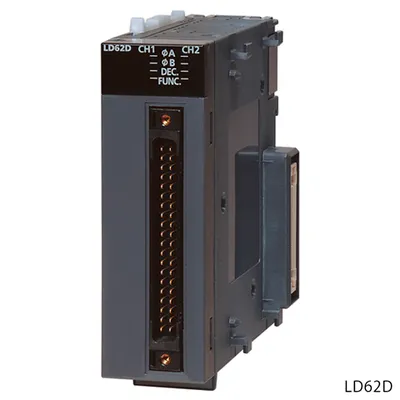

Mitsubishi Electric LD62D – Mitsubishi MELSEC-L Series High-speed counter
Mitsubishi Electric
LD62D

Mitsubishi MELSEC-L Series High-speed counter

Mitsubishi Electric LD75D1 – Mitsubishi MELSEC-L Series Positioning
Mitsubishi Electric
LD75D1

Mitsubishi MELSEC-L Series Positioning

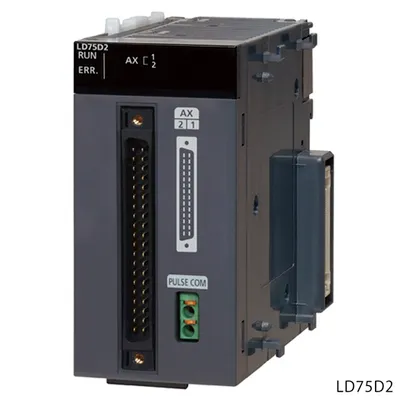

Mitsubishi Electric LD75D2 – Mitsubishi MELSEC-L Series Positioning
Mitsubishi Electric
LD75D2

Mitsubishi MELSEC-L Series Positioning

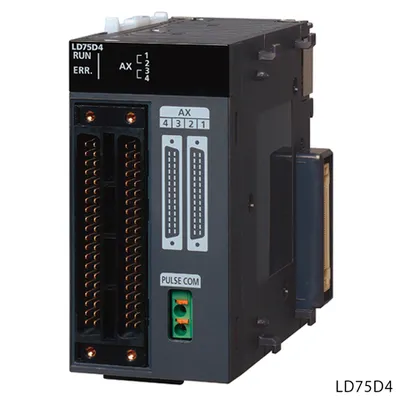

Mitsubishi Electric LD75D4 – Mitsubishi MELSEC-L Series Positioning
