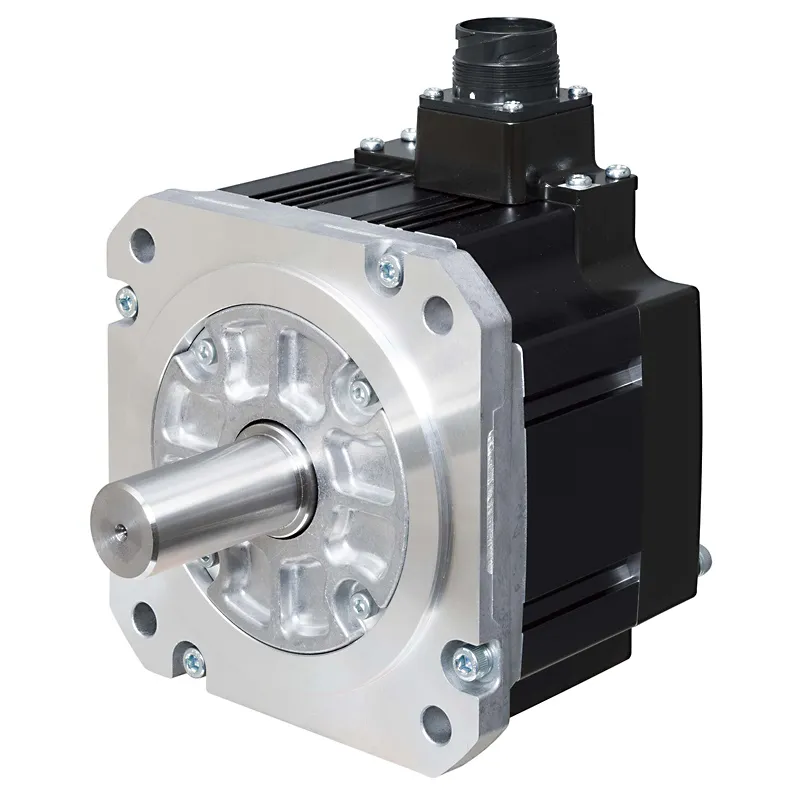

Mitsubishi Electric HK-ST903W

Mitsubishi MELSERVO servo MELSERVO-J5 series

MPN
HK-ST903W
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric HK-ST903W?

The Mitsubishi Electric HK-ST903W is a MELSERVO-J5 series in the MELSERVO servo. 3000. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J5 series
Type200 V AC
Outline3000

Specifications

SeriesMELSERVO-J5 series
Power class200 V AC
Model nameHK-ST903W
Compatible servo amplifierRefer to " Combinations of Rotary Servo Motors and Servo Amplifiers ".
Power supply capacity [kVA]Refer to "Power Supply Capacity" for the power supply capacity in "MELSERVO-J5 catalog".
Continuous running duty *4: Rated output [kW] *39.0
Continuous running duty *4: Rated torque [N・m] *3 *528.6
Maximum torque [N・m] *3(100)
Rated speed [r/min] *43000
Maximum speed [r/min] *45000
Power rate at continuous rated torque [kW/s] *378.2
Rated current [A] *337
Maximum current [A] *3(144)
Moment of inertia J [x 10 -4 kg・m 2 ]105
Recommended load to motor inertia ratio *110 times or less
Speed・position detectorBatteryless absolute/incremental 26-bit encoder (resolution: 67,108,864 pulses/rev)
TypePermanent magnet synchronous motor
Oil sealNone (Servo motors with an oil seal are available.)
ThermistorNone
Insulation class155 (F)
StructureTotally enclosed, natural cooling (IP rating: IP67) *2
Environment: Ambient temperature: Operation0 °C to 60 °C (non-freezing) *10
Environment: Ambient temperature: Strage-15 °C to 70 °C (non-freezing)
Environment: Ambient humidity: Operation10 %RH to 90 %RH (non-condensing)
Environment: Ambient humidity: Strage10 %RH to 90 %RH (non-condensing)
Environment: Ambience *9Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust, no object generating a strong magnetic field
Environment: Altitude2000 m or less *11
Environment: External magnetic field10 mT or less
Environment: Vibration resistance *50X: 24.5 m/s 2 ,Y: 29.4 m/s 2
Vibration rankV10 *50
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Permissible load for the shaft *50: L [mm]79
Permissible load for the shaft *50: Radial [N]2058
Permissible load for the shaft *50: Thrust [N]980
Mass [kg]27

HK-ST903W: frequently asked questions

When can HK-ST903W be shipped?

HK-ST903W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HK-ST903W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HK-ST903W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HK-ST903W, subject to availability and destination.
