Home / Mitsubishi Electric (Factory Automation) / Mitsubishi MELSERVO servo – Rotary servo motors / HK-ST702G1H 1/59 Mitsubishi MELSERVO servo MELSERVO-J5 series

Available on request

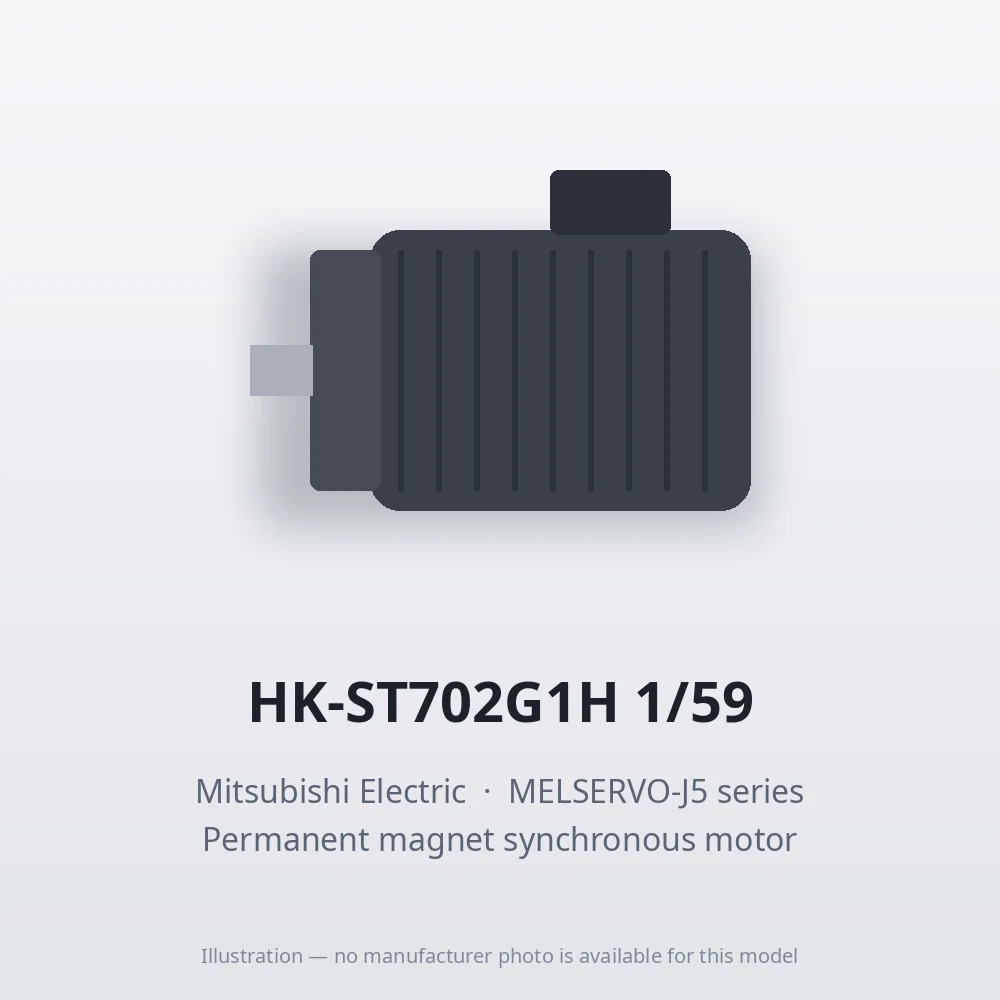

HK-ST702G1H 1/59 Mitsubishi MELSERVO servo MELSERVO-J5 series

MPN: HK-ST702G1H 1/59 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSERVO servo – Rotary servo motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can HK-ST702G1H 1/59 be shipped?

HK-ST702G1H 1/59 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HK-ST702G1H 1/59 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HK-ST702G1H 1/59 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HK-ST702G1H 1/59, subject to availability and destination.

The Mitsubishi Electric HK-ST702G1H 1/59 is a MELSERVO-J5 series in the MELSERVO servo. 2000. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSERVO servo
Category	MELSERVO-J5 series
Type	200 V AC
Outline	2000

Specifications

Series	MELSERVO-J5 series
Power class	200 V AC
Model name	HK-ST702G1H 1/59
Compatible servo amplifier *1	Refer to " Combinations of Rotary Servo Motors and Servo Amplifiers ".
Power supply capacity [kVA]	Refer to "Power Supply Capacity" for the power supply capacity in "MELSERVO-J5 catalog".
Continuous running duty *3: Rated output [kW]	7.0
Continuous running duty 3: Rated torque [N・m] 4	33.4
Maximum torque [N・m]	Refer to the following "Geared Servo Motor Specifications".
Rated speed [r/min] *3	2000
Maximum speed [r/min]	Refer to the following "Geared Servo Motor Specifications".
Power rate at continuous rated torque [kW/s]	106
Rated current [A]	28
Maximum current [A]	102
Moment of inertia J [x 10 -4 kg・m 2 ]	Refer to the following "Geared Servo Motor Specifications".
Recommended load to motor inertia ratio	Refer to the following "Geared Servo Motor Specifications".
Speed・position detector	Batteryless absolute/incremental 26-bit encoder (resolution: 67,108,864 pulses/rev)
Type	Permanent magnet synchronous motor
Oil seal	Refer to the following "Geared Servo Motor Specifications".
Thermistor	None
Insulation class	155 (F)
Structure	Totally enclosed, natural cooling (IP rating: IP67) *2
Environment: Ambient temperature: Operation	0 °C to 60 °C (non-freezing) *8
Environment: Ambient temperature: Strage	-15 °C to 70 °C (non-freezing)
Environment: Ambient humidity: Operation	10 %RH to 90 %RH (non-condensing)
Environment: Ambient humidity: Strage	10 %RH to 90 %RH (non-condensing)
Environment: Ambience *7	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust, no object generating a strong magnetic field
Environment: Altitude	2000 m or less *9
Environment: External magnetic field	10 mT or less
Environment: Vibration resistance *50	X: 24.5 m/s 2 ,Y: 29.4 m/s 2
Vibration rank	V10 *50
Satisfied standards	Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Permissible load for the shaft: L [mm]	Refer to the following "Geared Servo Motor Specifications".
Permissible load for the shaft: Radial [N]	Refer to the following "Geared Servo Motor Specifications".
Permissible load for the shaft: Thrust [N]	Refer to the following "Geared Servo Motor Specifications".
Motor outer diameter (Flange size) [mm]	Refer to the following "Geared Servo Motor Specifications".
Mass [kg]	Refer to the following "Geared Servo Motor Specifications".

Specifications

Gear reducer: Servo motor model name	HK-ST702G1H 1/59
Gear reducer: Output [kW]	7.0
Gear reducer: Reduction ratio	1/59
Gear reducer: Moment of inertia J [x 10 -4 kg・m 2 ] *12	220
Gear reducer: Permissible load to motor inertia ratio (when converted into the servo motor shaft) *13	4 times or less
Gear reducer: Oil seal	None
Gear reducer: Permissible load for the shaft *51: Q [mm]	135
Gear reducer: Permissible load for the shaft *51: Radial [N]	22540
Gear reducer: Permissible load for the shaft *51: Thrust [N]	19600
Gear reducer: Mass [kg]	255
Gear reducer: Lubrication method *15	Oil
Gear reducer: Mounting direction	Shaft horizontal *14
Gear reducer: Mounting method	Foot mounting
Gear reducer: Output shaft rotating direction	Opposite from the servo motor output shaft direction
Gear reducer: Backlash *20	40 minutes to 2° at gear reducer output shaft *19
Gear reducer: Maximum torque *21	Three times of the rated torque
Gear reducer: Maximum speed (at servo motor shaft)	Grease lubricated: 3000 r/min Oil lubricated: 2000 r/min
Gear reducer: IP rating (gear reducer part)	Equivalent to IP44
Gear reducer: Gear reducer efficiency *18	85 % to 94 %

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MR-J5-G/MR-J5W-G User's Manual (Introduction) (SH-030294ENG-P)	PDF · 2.29MB
MR-J5-A User's Manual (Introduction) (SH-030296ENG-P)	PDF · 1.84MB
MR-J5 User's Manual (Hardware) (SH-030298ENG-Q)	PDF · 25.30MB
MR-J5 User's Manual (Function) (SH-030300ENG-P)	PDF · 7.48MB
MR-J5-G/MR-J5W-G User's Manual (Communication Function) (SH-030302ENG-P)	PDF · 1.00MB
MR-J5-G/MR-J5W-G User's Manual (Object Dictionary) (SH-030304ENG-P)	PDF · 1.46MB
MR-J5 User's Manual (Adjustment) (SH-030306ENG-J)	PDF · 1.03MB
MR-J5-G/MR-J5W-G User's Manual (Parameters) (SH-030308ENG-P)	PDF · 1.94MB
MR-J5-A User's Manual (Parameters) (SH-030310ENG-N)	PDF · 1.37MB
MR-J5 User's Manual (Troubleshooting) (SH-030312ENG-P)	PDF · 1.86MB
