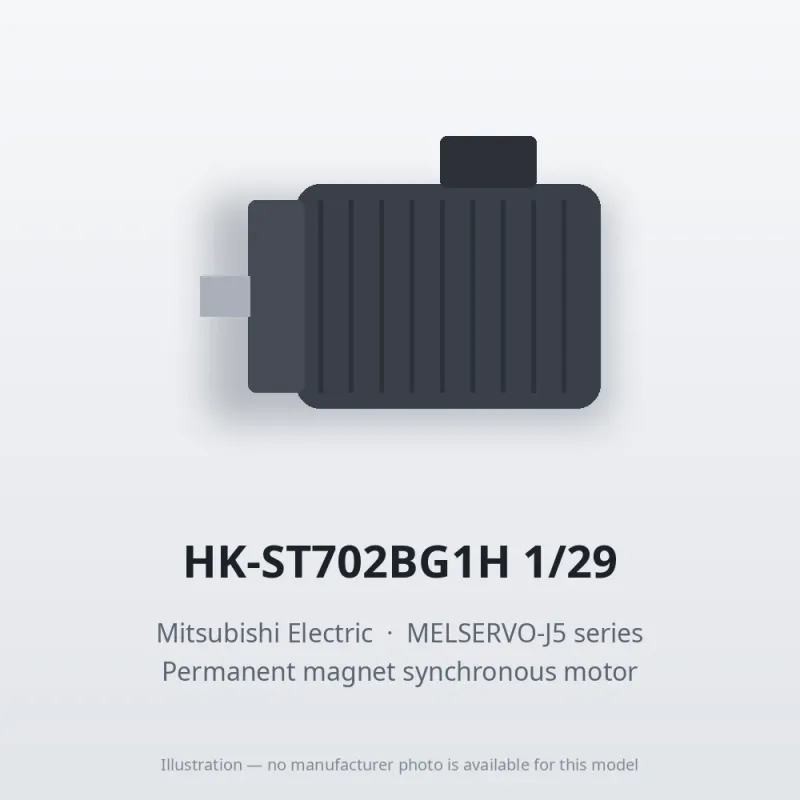

Mitsubishi Electric HK-ST702BG1H 1/29

Mitsubishi MELSERVO servo MELSERVO-J5 series

MPN
HK-ST702BG1H 1/29
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric HK-ST702BG1H 1/29?

The Mitsubishi Electric HK-ST702BG1H 1/29 is a MELSERVO-J5 series in the MELSERVO servo. 2000. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J5 series
Type200 V AC
Outline2000

Specifications

SeriesMELSERVO-J5 series
Power class200 V AC
Model nameHK-ST702BG1H 1/29
Compatible servo amplifier *1Refer to " Combinations of Rotary Servo Motors and Servo Amplifiers ".
Power supply capacity [kVA]Refer to "Power Supply Capacity" for the power supply capacity in "MELSERVO-J5 catalog".
Continuous running duty *3: Rated output [kW]7.0
Continuous running duty *3: Rated torque [N・m] *433.4
Maximum torque [N・m]Refer to the following "Geared Servo Motor Specifications".
Rated speed [r/min] *32000
Maximum speed [r/min]Refer to the following "Geared Servo Motor Specifications".
Power rate at continuous rated torque [kW/s]101
Rated current [A]28
Maximum current [A]102
Moment of inertia J [x 10 -4 kg・m 2 ]Refer to the following "Geared Servo Motor Specifications".
Recommended load to motor inertia ratioRefer to the following "Geared Servo Motor Specifications".
Speed・position detectorBatteryless absolute/incremental 26-bit encoder (resolution: 67,108,864 pulses/rev)
TypePermanent magnet synchronous motor
Oil sealRefer to the following "Geared Servo Motor Specifications".
ThermistorNone
Insulation class155 (F)
StructureTotally enclosed, natural cooling (IP rating: IP67) *2
Environment: Ambient temperature: Operation0 °C to 60 °C (non-freezing) *8
Environment: Ambient temperature: Strage-15 °C to 70 °C (non-freezing)
Environment: Ambient humidity: Operation10 %RH to 90 %RH (non-condensing)
Environment: Ambient humidity: Strage10 %RH to 90 %RH (non-condensing)
Environment: Ambience *7Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust, no object generating a strong magnetic field
Environment: Altitude2000 m or less *9
Environment: External magnetic field10 mT or less
Environment: Vibration resistance *50X: 24.5 m/s 2 ,Y: 29.4 m/s 2
Vibration rankV10 *50
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Permissible load for the shaft: L [mm]Refer to the following "Geared Servo Motor Specifications".
Permissible load for the shaft: Radial [N]Refer to the following "Geared Servo Motor Specifications".
Permissible load for the shaft: Thrust [N]Refer to the following "Geared Servo Motor Specifications".
Motor outer diameter (Flange size) [mm]Refer to the following "Geared Servo Motor Specifications".
Mass [kg]Refer to the following "Geared Servo Motor Specifications".

Specifications

Electromagnetic Brake *10: Servo motor model nameHK-ST702BG1H 1/29
Electromagnetic Brake *10: TypeSpring actuated type safety brake
Electromagnetic Brake *10: Rated voltage24 V DC (-10 % to 0 %)
Electromagnetic Brake *10: Power consumption [W] at 20 ゚C34
Electromagnetic Brake *10: Electromagnetic brake static friction torque [N・m]44 or higher
Electromagnetic Brake *10: Permissible braking work: Per braking [J]4500
Electromagnetic Brake *10: Permissible braking work: Per hour [J]45000
Electromagnetic Brake *10: Electromagnetic brake life *11: Number of braking times20000
Electromagnetic Brake *10: Electromagnetic brake life *11: Work per braking [J]1000

Specifications

Gear reducer: Servo motor model nameHK-ST702BG1H 1/29
Gear reducer: Output [kW]7.0
Gear reducer: Reduction ratio1/29
Gear reducer: Moment of inertia J [x 10 -4 kg・m 2 ] *12151
Gear reducer: Permissible load to motor inertia ratio (when converted into the servo motor shaft) *134 times or less
Gear reducer: Oil sealNone
Gear reducer: Permissible load for the shaft *51: Q [mm]110
Gear reducer: Permissible load for the shaft *51: Radial [N]13426
Gear reducer: Permissible load for the shaft *51: Thrust [N]13720
Gear reducer: Mass [kg]190
Gear reducer: Lubrication method *15Oil
Gear reducer: Mounting directionShaft horizontal *14
Gear reducer: Mounting methodFoot mounting
Gear reducer: Output shaft rotating directionOpposite from the servo motor output shaft direction
Gear reducer: Backlash *2040 minutes to 2° at gear reducer output shaft *19
Gear reducer: Maximum torque *21Three times of the rated torque
Gear reducer: Maximum speed (at servo motor shaft)Grease lubricated: 3000 r/min Oil lubricated: 2000 r/min
Gear reducer: IP rating (gear reducer part)Equivalent to IP44
Gear reducer: Gear reducer efficiency *1885 % to 94 %

HK-ST702BG1H 1/29: frequently asked questions

When can HK-ST702BG1H 1/29 be shipped?

HK-ST702BG1H 1/29 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HK-ST702BG1H 1/29 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HK-ST702BG1H 1/29 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HK-ST702BG1H 1/29, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric HK-ST702BG1 1/59 – Mitsubishi MELSERVO servo MELSERVO-J5 series
Mitsubishi Electric
HK-ST702BG1 1/59

Mitsubishi MELSERVO servo MELSERVO-J5 series

Mitsubishi Electric HK-ST702BG1 1/6 – Mitsubishi MELSERVO servo MELSERVO-J5 series
Mitsubishi Electric
HK-ST702BG1 1/6

Mitsubishi MELSERVO servo MELSERVO-J5 series

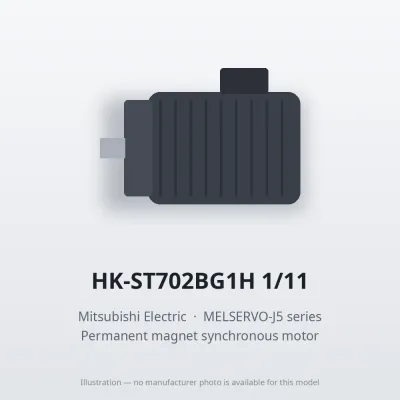

Mitsubishi Electric HK-ST702BG1H 1/11 – Mitsubishi MELSERVO servo MELSERVO-J5 series
