What is the Mitsubishi Electric HK-ST2024W?

The Mitsubishi Electric HK-ST2024W is a MELSERVO-J5 series in the MELSERVO servo. 200 V: 1000 400 V: 2000 (1500). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J5 series
Type200 V AC 400 V AC
Outline200 V: 1000 400 V: 2000 (1500)

Specifications

SeriesMELSERVO-J5 series
Power class200 V AC 400 V AC
Model nameHK-ST2024W
Compatible servo amplifier *1Refer to " Combinations of Rotary Servo Motors and Servo Amplifiers ".
Power supply capacity [kVA]Refer to "Power Supply Capacity" for the power supply capacity in "MELSERVO-J5 catalog".
Continuous running duty *5: Rated output [kW]200 V: 1.2 400 V: 2.0
Continuous running duty *5: Rated torque [N・m] *4 *6200 V: 11.5 400 V: 9.5 (12.7)
Maximum torque [N・m] *4200 V: 40.1 400 V: 28.6 (38.2)
Rated speed [r/min] *4 *5200 V: 1000 400 V: 2000 (1500)
Maximum speed [r/min] *5200 V: 2000 400 V: 4000
Power rate at continuous rated torque [kW/s] *4200 V: 36.1 400 V: 25.1 (44.6)
Rated current [A] *4200 V: 6.0 400 V: 5.0 (6.7)
Maximum current [A] *4200 V: 24 400 V: 16 (23)
Moment of inertia J [x 10 -4 kg・m 2 ]36.4
Recommended load to motor inertia ratio *2200 V: 23 times or less 400 V: 4 times or less *10 (When connected with MR-J5D, 2 times or less *12 )
Speed・position detectorBatteryless absolute/incremental 26-bit encoder (resolution: 67,108,864 pulses/rev)
TypePermanent magnet synchronous motor
Oil sealNone (Servo motors with an oil seal are available.)
ThermistorNone
Insulation class155 (F)
StructureTotally enclosed, natural cooling (IP rating: IP67) *3
Environment: Ambient temperature: Operation0 °C to 60 °C (non-freezing) *20
Environment: Ambient temperature: Strage-15 °C to 70 °C (non-freezing)
Environment: Ambient humidity: Operation10 %RH to 90 %RH (non-condensing)
Environment: Ambient humidity: Strage10 %RH to 90 %RH (non-condensing)
Environment: Ambience *19Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust, no object generating a strong magnetic field
Environment: Altitude2000 m or less *21
Environment: External magnetic field10 mT or less
Environment: Vibration resistance *50X: 24.5 m/s 2 ,Y: 49 m/s 2
Vibration rankV10 *50
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Permissible load for the shaft *50: L [mm]79
Permissible load for the shaft *50: Radial [N]2058
Permissible load for the shaft *50: Thrust [N]980
Mass [kg]13

HK-ST2024W: frequently asked questions

When can HK-ST2024W be shipped?

HK-ST2024W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HK-ST2024W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HK-ST2024W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HK-ST2024W, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric HK-ST2024G7 1/21 – Mitsubishi MELSERVO servo MELSERVO-J5 series
Mitsubishi Electric
HK-ST2024G7 1/21

Mitsubishi MELSERVO servo MELSERVO-J5 series

Mitsubishi Electric HK-ST2024G7 1/33 – Mitsubishi MELSERVO servo MELSERVO-J5 series
Mitsubishi Electric
HK-ST2024G7 1/33

Mitsubishi MELSERVO servo MELSERVO-J5 series

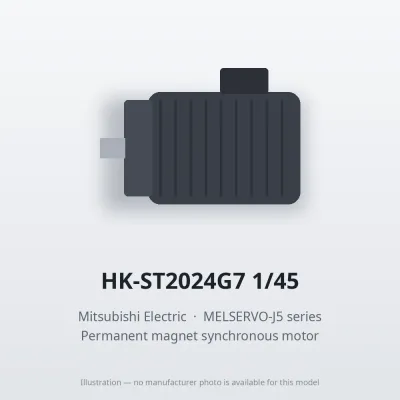

Mitsubishi Electric HK-ST2024G7 1/45 – Mitsubishi MELSERVO servo MELSERVO-J5 series
Mitsubishi Electric
HK-ST2024G7 1/45

Mitsubishi MELSERVO servo MELSERVO-J5 series

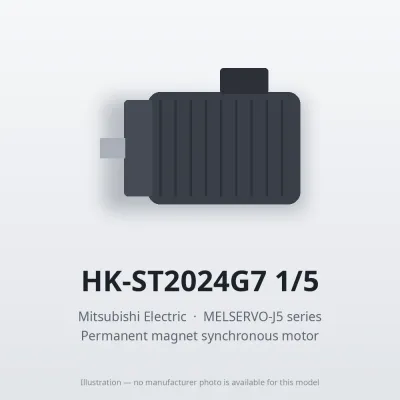

Mitsubishi Electric HK-ST2024G7 1/5 – Mitsubishi MELSERVO servo MELSERVO-J5 series
