Mitsubishi Electric HK-KT13UWBWS

Mitsubishi MELSERVO servo MELSERVO-J5 series

MPN
HK-KT13UWBWS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric HK-KT13UWBWS?

The Mitsubishi Electric HK-KT13UWBWS is a MELSERVO-J5 series in the MELSERVO servo. 3000. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J5 series
Type200 V AC
Outline3000

Specifications

SeriesMELSERVO-J5 series
Power class200 V AC
Model nameHK-KT13UWBWS
Compatible servo amplifier *1Refer to " Combinations of Rotary Servo Motors and Servo Amplifiers ".
Power supply capacity [kVA]Refer to "Power Supply Capacity" for the power supply capacity in "MELSERVO-J5 catalog".
Continuous running duty *5: Rated output [kW]0.1
Continuous running duty *5: Rated torque [N・m] *4 *60.32
Maximum torque [N・m] *41.1 (1.4)
Rated speed [r/min] *4 *53000
Maximum speed [r/min] *4 *56700
Power rate at continuous rated torque [kW/s] *46.6
Rated current [A] *41.1
Maximum current [A] *44.6 (6.0)
Moment of inertia J [x 10 -4 kg・m 2 ]0.153
Recommended load to motor inertia ratio *210 times or less *10
Speed・position detectorBatteryless absolute/incremental 26-bit encoder (resolution: 67,108,864 pulses/rev)
TypePermanent magnet synchronous motor
Oil sealNone (Servo motors with an oil seal are available.) *7
ThermistorNone
Insulation class155 (F)
StructureTotally enclosed, natural cooling (IP rating: IP67) *3 *8
Environment: Ambient temperature: Operation0 °C to 60 °C (non-freezing) *15
Environment: Ambient temperature: Strage-15 °C to 70 °C (non-freezing)
Environment: Ambient humidity: Operation10 %RH to 90 %RH (non-condensing)
Environment: Ambient humidity: Strage10 %RH to 90 %RH (non-condensing)
Environment: Ambience *14Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust, no object generating a strong magnetic field
Environment: Altitude2000 m or less *16
Environment: External magnetic field10 mT or less
Environment: Vibration resistance *50X: 49 m/s 2 ,Y: 49 m/s 2
Vibration rankV10 *50
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Permissible load for the shaft *50: L [mm]25
Permissible load for the shaft *50: Radial [N]88
Permissible load for the shaft *50: Thrust [N]59
Mass [kg]0.79

Specifications

Electromagnetic Brake *17: Servo motor model nameHK-KT13UWBWS
Electromagnetic Brake *17: TypeSpring actuated type safety brake
Electromagnetic Brake *17: Rated voltage24 V DC (-10 % to 0 %)
Electromagnetic Brake *17: Power consumption [W] at 20 ゚C6.4
Electromagnetic Brake *17: Electromagnetic brake static friction torque [N・m]0.48 or higher
Electromagnetic Brake *17: Permissible braking work: Per braking [J]5.6
Electromagnetic Brake *17: Permissible braking work: Per hour [J]56
Electromagnetic Brake *17: Electromagnetic brake life *18: Number of braking times20000
Electromagnetic Brake *17: Electromagnetic brake life *18: Work per braking [J]5.6

HK-KT13UWBWS: frequently asked questions

When can HK-KT13UWBWS be shipped?

HK-KT13UWBWS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HK-KT13UWBWS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HK-KT13UWBWS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HK-KT13UWBWS, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

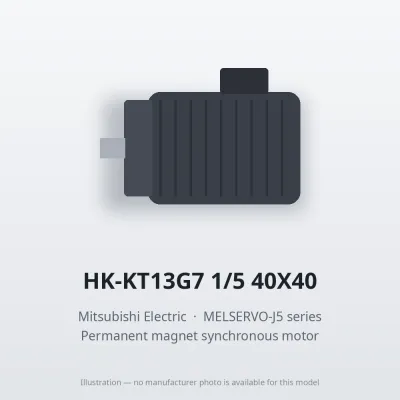

Mitsubishi Electric HK-KT13G7 1/5 40X40 – Mitsubishi MELSERVO servo MELSERVO-J5 series
