What is the Mitsubishi Electric HG-SR81B?

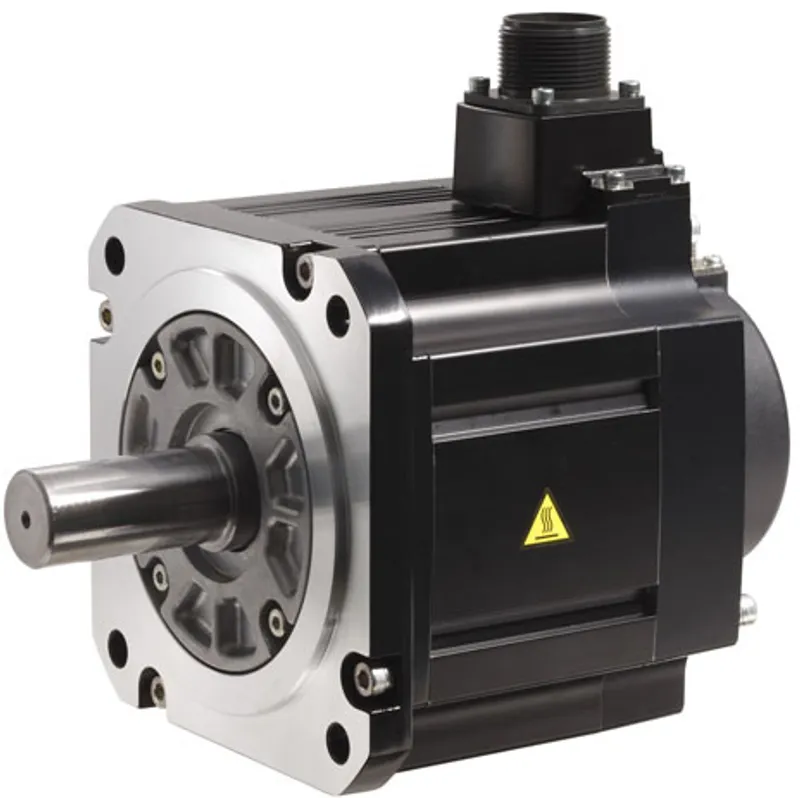

The Mitsubishi Electric HG-SR81B is a MELSERVO-J4 series in the MELSERVO servo. 1000. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSERVO servo |
| Category | MELSERVO-J4 series |
| Type | 200 V AC |
| Outline | 1000 |
Specifications
| Series | MELSERVO-J4 series |
| Power class | 200 V AC |
| Model name | HG-SR81B |
| Compatible servo amplifier | Refer to " Combinations of Rotary Servo Motors and Servo Amplifiers " for compatible servo amplifier. |
| Power supply capacity [kVA] *50 | 1.5 |
| Continuous running duty *1: Rated output [kW] | 0.85 |
| Continuous running duty *1: Rated torque [N・m] *2 | 8.1 |
| Maximum torque [N・m] | 24.4 |
| Rated speed [r/min] *1 | 1000 |
| Maximum speed [r/min] *1 | 1500 |
| Permissible instantaneous speed [r/min] | 1725 |
| Power rate at continuous rated torque [kW/s] | 36.2 |
| Rated current [A] | 5.2 |
| Maximum current [A] | 17 |
| Moment of inertia J [x 10 -4 kg・m 2 ] | 18.2 |
| Recommended load to motor inertia ratio *3 | 17 times or less |
| Speed・position detector | Absolute/incremental 22-bit encoder (resolution: 4194304 pulses/rev) |
| Type | Permanent magnet synchronous motor |
| Oil seal | None (Servo motors with an oil seal are available. (HG-SR_J)) |
| Thermistor | None |
| Insulation class | 155 (F) |
| Structure | Totally enclosed, natural cooling (IP rating: IP67) *4 |
| Environment *50: Ambient temperature: Operation | 0 °C to 40 °C (non-freezing) |
| Environment *50: Ambient temperature: Strage | -15 °C to 70 °C (non-freezing) |
| Environment *50: Ambient humidity: Operation | 10 %RH to 80 %RH (non-condensing) |
| Environment *50: Ambient humidity: Strage | 10 %RH to 90 %RH (non-condensing) |
| Environment *50: Ambience | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust |
| Environment *50: Altitude | 2000 m or less above sea level *5 |
| Environment *50: Vibration resistance *50 | X: 24.5 m/s 2 Y: 24.5 m/s 2 |
| Vibration rank | V10 *50 |
| Satisfied standards | Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations. |
| Permissible load for the shaft *50: L [mm] | 55 |
| Permissible load for the shaft *50: Radial [N] | 980 |
| Permissible load for the shaft *50: Thrust [N] | 490 |
| Mass [kg] | 9.3 |
Specifications
| Electromagnetic Brake *6: Servo motor model name | HG-SR81B |
| Electromagnetic Brake *6: Type | Spring actuated type safety brake |
| Electromagnetic Brake *6: Rated voltage | 24 V DC (-10 % to 0 %) |
| Electromagnetic Brake *6: Power consumption [W] at 20 ゚C | 20 |
| Electromagnetic Brake *6: Electromagnetic brake static friction torque [N・m] | 8.5 or higher |
| Electromagnetic Brake *6: Permissible braking work: Per braking [J] | 400 |
| Electromagnetic Brake *6: Permissible braking work: Per hour [J] | 4000 |
| Electromagnetic Brake *6: Electromagnetic brake life *7: Number of braking times | 20000 |
| Electromagnetic Brake *6: Electromagnetic brake life *7: Work per braking [J] | 200 |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- MR-J4-_A_(-RJ)/MR-J4-03A6(-RJ) SERVO AMPLIFIER INSTRUCTION MANUAL (SH-030107-V)
- MR-J4-_A_-RJ/MR-J4-03A6-RJ SERVO AMPLIFIER INSTRUCTION MANUAL (POSITIONING MODE) (SH-030143-D)
- MR-J4-_A_-RJ SERVO AMPLIFIER INSTRUCTION MANUAL (Modbus-RTU Protocol) (SH-030175-C)
- MR-J4-_B_(-RJ) SERVO AMPLIFIER INSTRUCTION MANUAL (SH-030106-U)
- MR-J4W2-_B/MR-J4W3-_B/MR-J4W2-0303B6 SERVO AMPLIFIER INSTRUCTION MANUAL (SH-030105-P)
- CC-Link IE Field Network interface with Motion MR-J4-_B-RJ010/MR-J4-_B4-RJ010/MR-J3-T10 SERVO AMPLIFIER INSTRUCTION MANUAL (SH-030117-C)
- MR-J4-_GF_(-RJ) Servo Amplifier Instruction Manual (CC-Link IE Field Network Basic) (SH-030273ENG-C)
- HG-MR/HG-KR/HG-SR/HG-JR/HG-RR/HG-UR/HG-AK SERVO MOTOR INSTRUCTION MANUAL (Vol.3) (SH-030113-Q)
