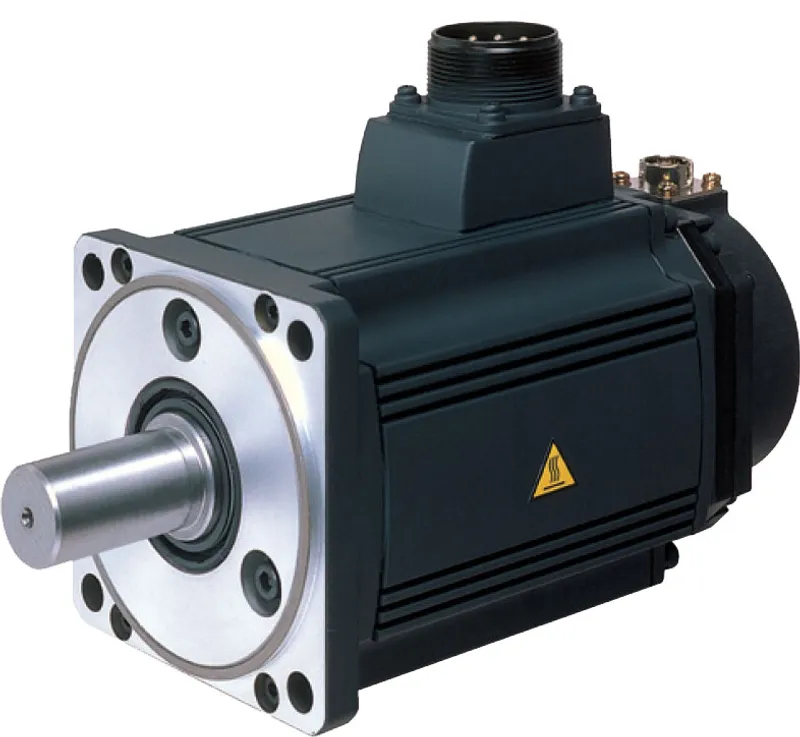

Mitsubishi Electric HG-RR353B

Mitsubishi MELSERVO servo MELSERVO-J4 series

MPN
HG-RR353B
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric HG-RR353B?

The Mitsubishi Electric HG-RR353B is a MELSERVO-J4 series in the MELSERVO servo. 3000. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J4 series
Type200 V AC
Outline3000

Specifications

SeriesMELSERVO-J4 series
Power class200 V AC
Model nameHG-RR353B
Compatible servo amplifierRefer to " Combinations of Rotary Servo Motors and Servo Amplifiers " for compatible servo amplifier.
Power supply capacity [kVA] *505.5
Continuous running duty *1: Rated output [kW]3.5
Continuous running duty *1: Rated torque [N・m] *211.1
Maximum torque [N・m]27.9
Rated speed [r/min] *13000
Maximum speed [r/min] *14500
Permissible instantaneous speed [r/min]5175
Power rate at continuous rated torque [kW/s]105
Rated current [A]23
Maximum current [A]58
Moment of inertia J [x 10 -4 kg・m 2 ]11.8
Recommended load to motor inertia ratio *35 times or less
Speed・position detectorAbsolute/incremental 22-bit encoder (resolution: 4194304 pulses/rev)
TypePermanent magnet synchronous motor
Oil sealInstalled
ThermistorNone
Insulation class155 (F)
StructureTotally enclosed, natural cooling (IP rating: IP65) *4
Environment *50: Ambient temperature: Operation0 °C to 40 °C (non-freezing)
Environment *50: Ambient temperature: Strage-15 °C to 70 °C (non-freezing)
Environment *50: Ambient humidity: Operation10 %RH to 80 %RH (non-condensing)
Environment *50: Ambient humidity: Strage10 %RH to 90 %RH (non-condensing)
Environment *50: AmbienceIndoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment *50: Altitude2000 m or less above sea level *5
Environment *50: Vibration resistance *50X: 24.5 m/s 2 Y: 24.5 m/s 2
Vibration rankV10 *50
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Permissible load for the shaft *50: L [mm]63
Permissible load for the shaft *50: Radial [N]980
Permissible load for the shaft *50: Thrust [N]392
Mass [kg]15

Specifications

Electromagnetic Brake *6: Servo motor model nameHG-RR353B
Electromagnetic Brake *6: TypeSpring actuated type safety brake
Electromagnetic Brake *6: Rated voltage24 V DC (-10 % to 0 %)
Electromagnetic Brake *6: Power consumption [W] at 20 ゚C23
Electromagnetic Brake *6: Electromagnetic brake static friction torque [N・m]17 or higher
Electromagnetic Brake *6: Permissible braking work: Per braking [J]400
Electromagnetic Brake *6: Permissible braking work: Per hour [J]4000
Electromagnetic Brake *6: Electromagnetic brake life *7: Number of braking times20000
Electromagnetic Brake *6: Electromagnetic brake life *7: Work per braking [J]200

HG-RR353B: frequently asked questions

When can HG-RR353B be shipped?

HG-RR353B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HG-RR353B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HG-RR353B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HG-RR353B, subject to availability and destination.
