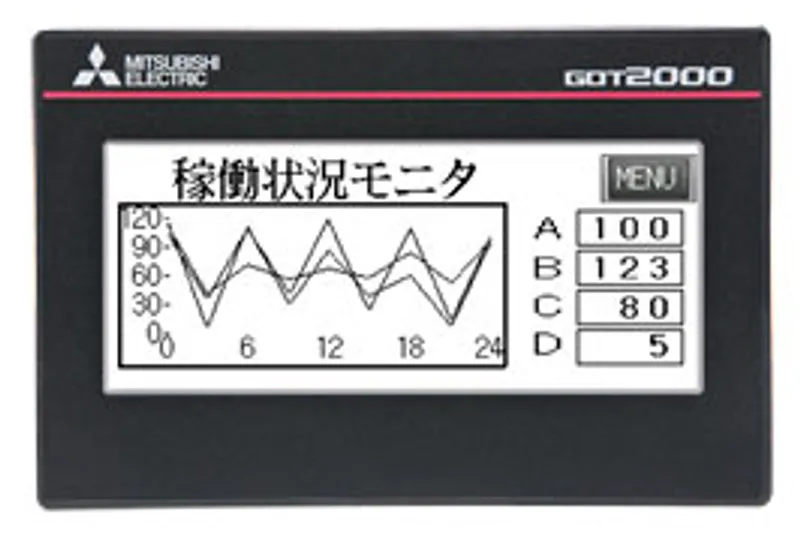

What is the Mitsubishi Electric GT2103-PMBDS?

The Mitsubishi Electric GT2103-PMBDS is a 3.8" in the GOT HMI. Standard. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesGOT HMI
Category3.8"
Type320 x 128 dots
OutlineStandard

Specifications

ModelGT2103-PMBDS
Product nameGT21 model
Series nameGOT2000
Model nameGT21

Specifications

Display section *1 *2: Display deviceTFT monochrome LCD
Display section *1 *2: Screen size3.8"
Display section *1 *2: Resolution320 x 128 dots
Display section *1 *2: Display size89.0 (W) x 35.6 (H) mm (3.50 (W) x 1.40 (H) mm inch)
Display section *1 *2: Number of displayed characters16-dot standard font: 20 characters x 8 lines (two-byte characters) 12-dot standard font: 26 characters x 10 lines (two-byte characters)
Display section *1 *2: Display colorMonochrome (black/white) 32 shade grayscale
Display section *1 *2: Brightness adjustment32 levels
Display section *1 *2: Registrable number of screen2048
Display section *1 *2: BacklightLED (not replaceable)
Display section *1 *2: Backlight life *4Approx. 50000 h (operating ambient temperature: 25°C, display intensity: 50%)
Display section *1 *2: Backlight color5-color LED (white, green, pink, orange, red)
Touch panel *3 *11: TypeAnalog resistive film
Touch panel *3 *11: Key sizeMinimum 2 x 2 dots *9 (per key)
Touch panel *3 *11: Simultaneous pressNot available *5 (Only 1 point can be touched.)
Touch panel *3 *11: Life1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection length-
Human sensor: Detection temperature-
User memoryMemory for storage (ROM) *12 : 3 MB Life (number of write times) : 100000 times
Battery: Type-
Battery: Backup target-
Battery: Life-
Built-in interface: RS-232: Number of channel1 channel
Built-in interface: RS-232: Transmission speed115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-232: Connector shapeMINI-DIN 6-pin (female)
Built-in interface: RS-422/485: Number of channel1 channel
Built-in interface: RS-422/485: Transmission speed115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-422/485: Connector shape9-pin connector terminal block
Built-in interface: RS-422/232: Number of channel-
Built-in interface: RS-422/232: Transmission speed-
Built-in interface: RS-422/232: Connector shape-
Built-in interface: RS-422/232: Application-
Built-in interface: RS-422: Number of channel-
Built-in interface: RS-422: Transmission speed-
Built-in interface: RS-422: Connector shape-
Built-in interface: Ethernet: Number of channel-
Built-in interface: Ethernet: Data transfer method-
Built-in interface: Ethernet: Connector shape-
Built-in interface: Bus interface: Type-
Built-in interface: Bus interface: Number of channel-
Built-in interface: RGB interface-
Built-in interface: Printer interface-
Built-in interface: USB (host): Number of channel-
Built-in interface: USB (host): Maximum transfer rate-
Built-in interface: USB (host): Connector shape-
Built-in interface: USB (device): Number of channel1 channel (rear face)
Built-in interface: USB (device): Maximum transfer rateFull-Speed 12 Mbps
Built-in interface: USB (device): Connector shapeUSB Mini-B
Built-in interface: SD memory card1 channel, SDHC compliant (maximum 32 GB) *6 *12
Built-in interface: CF card interface-
Built-in interface: PC card interface-
Built-in interface: Option function board interface-
Built-in interface: Memory board interface-
Built-in interface: Wireless LAN communication unit interface-
Built-in interface: Sound output interface-
Buzzer soundSingle tone (tone length adjustable)
LED specifications: POWER LED-
Installation methodStandard
Panel colorBlack
Protective structure *7Front: IP67F *10 Inside control panel: IP2X
External dimensions113 (W) x 74 (H) x 27 (D) mm *8 (4.45 (W) x 2.91 (H) x 1.06 (D) inch)
Panel cut dimensions105 (W) x 66 (H) mm (4.13 (W) x 2.60 (H) inch)
Weight (excluding a fitting)0.2 kg (0.44 lb)

Specifications

Ambient operating temperature0°C to 55°C (horizontal installation), 0°C to 50°C (vertical installation)
Ambient storage temperature-20°C to 60°C
Ambient operating humidity10%RH to 90% RH, non-condensing
Ambient storage humidity10%RH to 90% RH, non-condensing
Vibration resistance: Approval standardsCompliant with JIS B 3502 and IEC 61131-2 *13
Vibration resistance: Under intermittent vibration[ Frequency: 5 to 8.4 Hz ] Half amplitude: 3.5 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 9.8 m/s 2 Sweep count: 10 times in each X, Y, or Z direction
Vibration resistance: Under continuous vibration[ Frequency: 5 to 8.4 Hz ] Half amplitude: 1.75 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 (15 G), 3 times in each X, Y, or Z direction) *13
Operating atmosphereNo greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude2000 m or less
Installation locationInside control panel
Overvoltage categoryII or less
Pollution degree2 or less
Cooling methodSelf-cooling
GroundingGrounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 0.14 to 1.5 mm 2 (single wire), 0.14 to 1.0 mm 2 (stranded wire), or 0.25 to 0.5 mm 2 (rod terminal with an insulation sleeve). If impossible, connect the ground cable to the control panel.
Remarks: Ambient operating temperatureIncludes the temperature inside the enclosure of the control panel to which the GOT is installed.
Remarks: Ambient operating humidityWhen a protective cover for oil is mounted on the horizontally installed GOT, the maximum operating ambient temperature must be 5°C lower than the one described above.
Remarks: Ambient storage humidityIf the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
Remarks: Operating altitudeIf the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
Remarks: Overvoltage categoryDo not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Pollution degreeThis indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.

Specifications

Power supply voltage24 V DC (+10%, -15%)
Power supply frequency-
Maximum apparent power-
Power consumption: Under the maximum load1.9 W or less
Power consumption: Main unit-
Power consumption: Main unit (backlight OFF)1.3 W
Inrush current30 A or less (1 ms, ambient temperature: 25°C, under the maximum load)
Permissible instantaneous power failure time5 ms or less
Noise immunityNoise voltage: 1000 Vp-p, noise width: 1 μs, measured by a noise simulator with noise frequency ranging from 30 Hz to 100 Hz
Withstand voltage500 V AC for 1 minute across power terminals and earth
Insulation resistance500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester
Applicable wireSingle wiring: solid wire 0.14 to 1.5 mm 2 (AWG26 to AWG16), stranded wire 0.14 to 1.0 mm 2 (AWG26 to AWG18), or rod terminal with an insulation sleeve 0.25 to 0.5 mm 2 (AWG24 to AWG20) Double wiring: solid wire 0.14 to 0.5 mm 2 (AWG26 to AWG20) or stranded wire 0.14 to 0.2 mm 2 (AWG26 to AWG24)
Applicable solderless terminalAI 0.25-6BU (AWG24) , AI 0.34-6TQ (AWG22) ,AI 0.5-6WH (AWG20) (manufactured by PHOENIX CONTACT) Swage: CRIMPFOX 6 (manufactured by PHOENIX CONTACT)
Applicable tightening torque (for terminal block terminal screws)0.22 ~ 0.25 N・m
