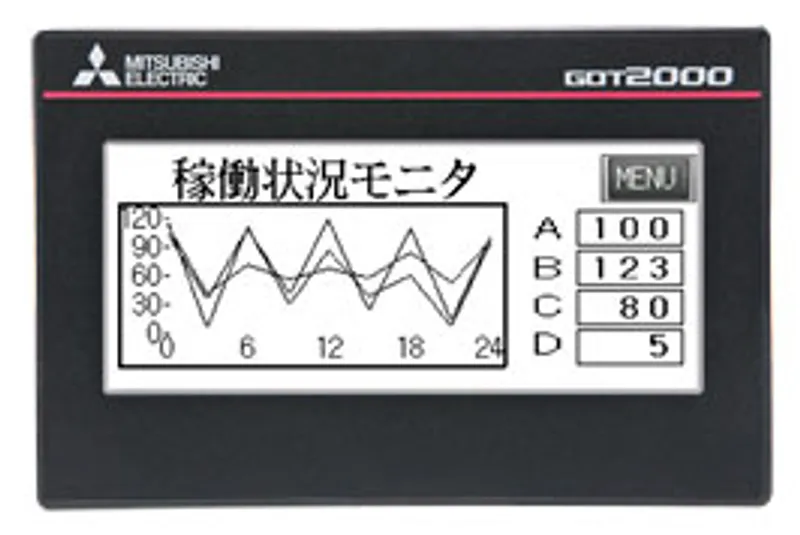

GT2103-PMBD Mitsubishi GOT HMI 3.8"

MPN: GT2103-PMBD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – GOTs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GT2103-PMBD be shipped?

GT2103-PMBD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT2103-PMBD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT2103-PMBD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT2103-PMBD, subject to availability and destination.

The Mitsubishi Electric GT2103-PMBD is a 3.8" in the GOT HMI. Standard. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Category	3.8"
Type	320 x 128 dots
Outline	Standard

Specifications

Model	GT2103-PMBD
Product name	GT21 model
Series name	GOT2000
Model name	GT21

Specifications

Display section 1 2: Display device	TFT monochrome LCD
Display section 1 2: Screen size	3.8"
Display section 1 2: Resolution	320 x 128 dots
Display section 1 2: Display size	89.0 (W) x 35.6 (H) mm (3.50 (W) x 1.40 (H) mm inch)
Display section 1 2: Number of displayed characters	16-dot standard font: 20 characters x 8 lines (two-byte characters) 12-dot standard font: 26 characters x 10 lines (two-byte characters)
Display section 1 2: Display color	Monochrome (black/white) 32 shade grayscale
Display section 1 2: Brightness adjustment	32 levels
Display section 1 2: Registrable number of screen	2048
Display section 1 2: Backlight	LED (not replaceable)
Display section 1 2: Backlight life *4	Approx. 50000 h (operating ambient temperature: 25°C, display intensity: 50%)
Display section 1 2: Backlight color	5-color LED (white, green, pink, orange, red)
Touch panel 3 11: Type	Analog resistive film
Touch panel 3 11: Key size	Minimum 2 x 2 dots *9 (per key)
Touch panel 3 11: Simultaneous press	Not available *5 (Only 1 point can be touched.)
Touch panel 3 11: Life	1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection length	－
Human sensor: Detection temperature	－
User memory	Memory for storage (ROM) *12 : 3 MB Life (number of write times) : 100000 times
Battery: Type	－
Battery: Backup target	－
Battery: Life	－
Built-in interface: RS-232: Number of channel	－
Built-in interface: RS-232: Transmission speed	－
Built-in interface: RS-232: Connector shape	－
Built-in interface: RS-422/485: Number of channel	1 channel
Built-in interface: RS-422/485: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-422/485: Connector shape	5-pin connector terminal block
Built-in interface: RS-422/232: Number of channel	－
Built-in interface: RS-422/232: Transmission speed	－
Built-in interface: RS-422/232: Connector shape	－
Built-in interface: RS-422/232: Application	－
Built-in interface: RS-422: Number of channel	－
Built-in interface: RS-422: Transmission speed	－
Built-in interface: RS-422: Connector shape	－
Built-in interface: Ethernet: Number of channel	1 channel
Built-in interface: Ethernet: Data transfer method	100BASE-TX, 10BASE-T
Built-in interface: Ethernet: Connector shape	RJ45 (modular jack) AUTO MDI/MDI-X
Built-in interface: Bus interface: Type	－
Built-in interface: Bus interface: Number of channel	－
Built-in interface: RGB interface	－
Built-in interface: Printer interface	－
Built-in interface: USB (host): Number of channel	－
Built-in interface: USB (host): Maximum transfer rate	－
Built-in interface: USB (host): Connector shape	－
Built-in interface: USB (device): Number of channel	1 channel (rear face)
Built-in interface: USB (device): Maximum transfer rate	Full-Speed 12 Mbps
Built-in interface: USB (device): Connector shape	USB Mini-B
Built-in interface: SD memory card	1 channel, SDHC compliant (maximum 32 GB) 6 12
Built-in interface: CF card interface	－
Built-in interface: PC card interface	－
Built-in interface: Option function board interface	－
Built-in interface: Memory board interface	－
Built-in interface: Wireless LAN communication unit interface	－
Built-in interface: Sound output interface	－
Buzzer sound	Single tone (tone length adjustable)
LED specifications: POWER LED	－
Installation method	Standard
Panel color	Black
Protective structure *7	Front: IP67F *10 Inside control panel: IP2X
External dimensions	113 (W) x 74 (H) x 32 (D) mm (4.45 (W) x 2.91 (H) x 1.26 (D) inch)
Panel cut dimensions	105 (W) x 66 (H) mm (4.13 (W) x 2.60 (H) inch)
Weight (excluding a fitting)	0.2 kg (0.44 lb)

Specifications

Ambient operating temperature	0°C to 55°C (horizontal installation), 0°C to 50°C (vertical installation)
Ambient storage temperature	-20°C to 60°C
Ambient operating humidity	10%RH to 90% RH, non-condensing
Ambient storage humidity	10%RH to 90% RH, non-condensing
Vibration resistance: Approval standards	Compliant with JIS B 3502 and IEC 61131-2 *13
Vibration resistance: Under intermittent vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 3.5 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 9.8 m/s 2 Sweep count: 10 times in each X, Y, or Z direction
Vibration resistance: Under continuous vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 1.75 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 (15 G), 3 times in each X, Y, or Z direction) *13
Operating atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude	2000 m or less
Installation location	Inside control panel
Overvoltage category	II or less
Pollution degree	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 0.14 to 1.5 mm 2 (single wire), 0.14 to 1.0 mm 2 (stranded wire), or 0.25 to 0.5 mm 2 (rod terminal with an insulation sleeve). If impossible, connect the ground cable to the control panel.
Remarks: Ambient operating temperature	Includes the temperature inside the enclosure of the control panel to which the GOT is installed.
Remarks: Ambient operating humidity	When a protective cover for oil is mounted on the horizontally installed GOT, the maximum operating ambient temperature must be 5°C lower than the one described above.
Remarks: Ambient storage humidity	If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
Remarks: Operating altitude	If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
Remarks: Overvoltage category	Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Pollution degree	This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.

Specifications

Power supply voltage	24 V DC (+10%, -15%)
Power supply frequency	－
Maximum apparent power	－
Power consumption: Under the maximum load	2.6 W or less
Power consumption: Main unit	－
Power consumption: Main unit (backlight OFF)	2.0 W
Inrush current	30 A or less (1 ms, ambient temperature: 25°C, under the maximum load)
Permissible instantaneous power failure time	5 ms or less
Noise immunity	Noise voltage: 1000 Vp-p, noise width: 1 μs, measured by a noise simulator with noise frequency ranging from 30 Hz to 100 Hz
Withstand voltage	500 V AC for 1 minute across power terminals and earth
Insulation resistance	500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester
Applicable wire	Single wiring: solid wire 0.14 to 1.5 mm 2 (AWG26 to AWG16), stranded wire 0.14 to 1.0 mm 2 (AWG26 to AWG18), or rod terminal with an insulation sleeve 0.25 to 0.5 mm 2 (AWG24 to AWG20) Double wiring: solid wire 0.14 to 0.5 mm 2 (AWG26 to AWG20) or stranded wire 0.14 to 0.2 mm 2 (AWG26 to AWG24)
Applicable solderless terminal	AI 0.25-6BU (AWG24) , AI 0.34-6TQ (AWG22) ,AI 0.5-6WH (AWG20) (manufactured by PHOENIX CONTACT) Swage: CRIMPFOX 6 (manufactured by PHOENIX CONTACT)
Applicable tightening torque (for terminal block terminal screws)	0.22 ～ 0.25 N・m

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

GT21 General Description (GT2103-PMBD, GT2103-PMBDS, GT2103-PMBDS2, GT2103-PMBLS) (JY997D74301)	PDF · 0.54MB
Mobile App Pocket GOT Operating Manual (SH-082512ENG-G)	PDF · 7.02MB
GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 (SH-081197ENG-BA)	PDF · 82.49MB
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1 (SH-081198ENG-AU)	PDF · 17.94MB
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1 (SH-081199ENG-AQ)	PDF · 13.92MB
GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)	PDF · 10.70MB
GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW)	PDF · 13.15MB
GOT2000系列主机使用说明书(硬件篇) (SH-081202CHN-AW)	PDF · 12.93MB
GOT2000 Series User's Manual (Utility) (SH-081195ENG-AW)	PDF · 18.89MB
GOT2000系列主机使用说明书(实用菜单篇) (SH-081203CHN-AW)	PDF · 17.11MB
