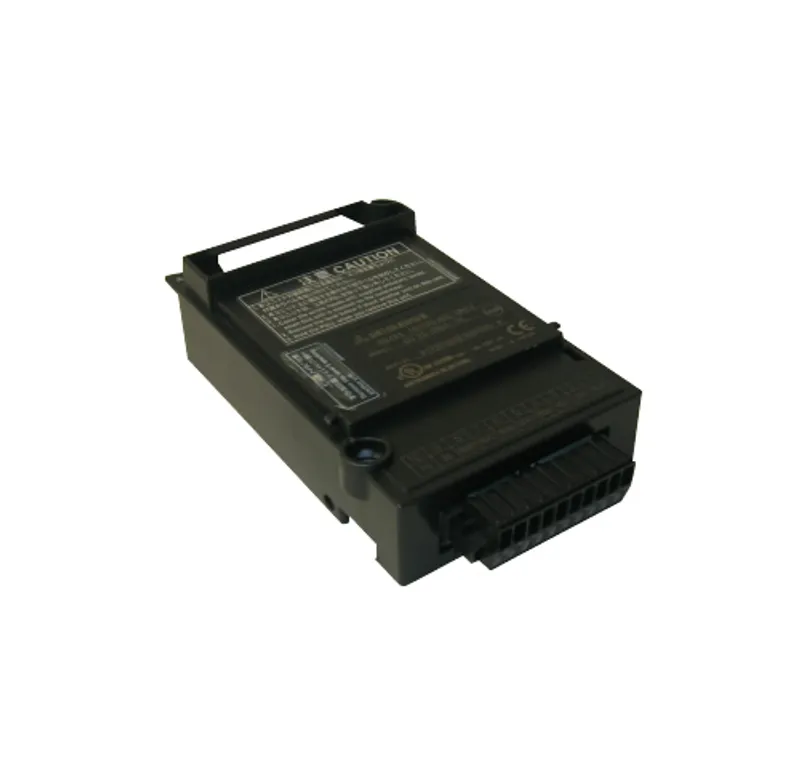

GT15-RS4-TE Mitsubishi GOT HMI Communication unit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi GOT HMI – Communication units |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can GT15-RS4-TE be shipped?
GT15-RS4-TE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GT15-RS4-TE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GT15-RS4-TE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT15-RS4-TE, subject to availability and destination.
The Mitsubishi Electric GT15-RS4-TE is a communication unit in the GOT HMI. RS-422/485 serial communication unit (terminal block) * Can be used only when connected with temperature controllers/indicating controllers by RS-485 connection or at the GOT multi-drop connection. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Outline | RS-422/485 serial communication unit (terminal block) * Can be used only when connected with temperature controllers/indicating controllers by RS-485 connection or at the GOT multi-drop connection. |
Specifications
| Model | GT15-RS4-TE |
| Category | Communication units |
| Product name | Serial communication unit |
| Series name | GOT3000/GOT2000/GOT1000 |
| Transmission method | RS-422/485 compliant |
| Interface | Terminal block |
| Connector | － |
| Transmission speed | 115200/57600/38400/19200/9600/4800 bps |
| Synchronous type | Non-Synchronous type (Asynchronous type) |
| Error detection method | Parity check, sum check |
| Maximum transmission distance | 1200 m *1 |
| Internal current consumption (5.0 V DC) | 0.3 A |
| Weight | 0.09 kg (0.20 lb) |
| Supported model | GT37 *3 , GT27, GT2512-S, GT2510-V, GT2508-V, GT2512F-S, GT2510F-V, GT2508F-V *2 , GT1695M-X, GT1685M-S, GT1675M-S/V, GT1675-V, GT1672-V, GT1665M-S/V, GT1662-V, GT1655-V, GT15 |
| Remarks -1 | The unit may not be able to be used depending on the connection destination. For the details, please refer to the GOT2000 Series Connection Manual or GOT1000 Series Connection Manual. |
| Remarks -2 | Since the GT15-RS4-TE cannot control the signals (RS/CS), the unit cannot be connected to the PLC. |
| Remarks -3 | Option units manufactured from October 2026 onward will not be covered by the warranty when used with the discontinued GOT1000 series. For the details, please refer to the Production Discontinuation of Main Units and Some Option Units in the GOT1000 Series for Overseas (GOT-A-0095) |
