Mitsubishi Electric GT15-RS4-9S
Mitsubishi GOT HMI Communication unit
- MPN
- GT15-RS4-9S
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

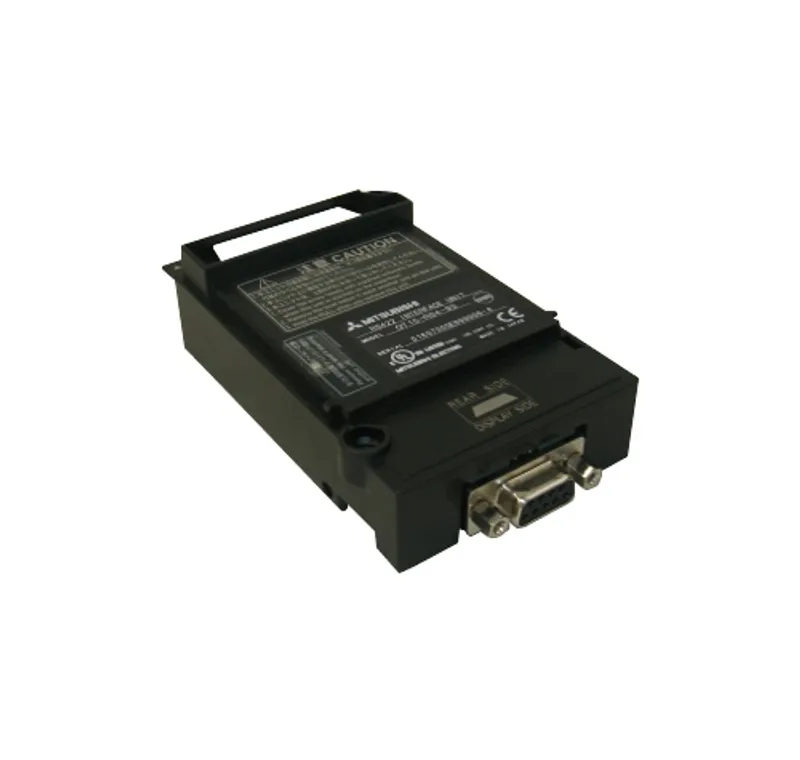

What is the Mitsubishi Electric GT15-RS4-9S?
The Mitsubishi Electric GT15-RS4-9S is a communication unit in the GOT HMI. RS-422/485 serial communication unit (D-sub 9-pin socket). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Outline | RS-422/485 serial communication unit (D-sub 9-pin socket) |
Specifications
| Model | GT15-RS4-9S |
| Category | Communication units |
| Product name | Serial communication unit |
| Series name | GOT3000/GOT2000/GOT1000 |
| Transmission method | RS-422/485 compliant |
| Interface | D-sub 9-pin (Socket) |
| Connector | DDK make (17LE-13090-27(D3AC)) |
| Transmission speed | 115200/57600/38400/19200/9600/4800 bps |
| Synchronous type | Non-Synchronous type (Asynchronous type) |
| Error detection method | Parity check, sum check |
| Maximum transmission distance | 1200 m *1 |
| Internal current consumption (5.0 V DC) | 0.33 A |
| Weight | 0.09 kg (0.20 lb) |
| Supported model | GT37 *3 , GT27, GT2512-S, GT2510-V, GT2508-V, GT2512F-S, GT2510F-V, GT2508F-V *2 , GT1695M-X, GT1685M-S, GT1675M-S/V, GT1675-V, GT1672-V, GT1665M-S/V, GT1662-V, GT1655-V, GT15 |
| Remarks -1 | The unit may not be able to be used depending on the connection destination. For the details, please refer to the GOT2000 Series Connection Manual or GOT1000 Series Connection Manual. |
| Remarks -2 | The unit cannot be used when connecting to temperature controllers/indicating controllers via RS-485 (2-wire type). |
| Remarks -3 | Option units manufactured from October 2026 onward will not be covered by the warranty when used with the discontinued GOT1000 series. For the details, please refer to the Production Discontinuation of Main Units and Some Option Units in the GOT1000 Series for Overseas (GOT-A-0095) |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- GOT3000/GOT2000/GOT1000 Series Serial Communication Unit User's Manual (IB-0800325E-P)
- GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW)
- GOT2000系列 主机使用说明书(硬件篇) (SH-081202CHN-AW)
- GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 (SH-081197ENG-BA)
- GOT2000系列 连接手册(三菱电机机器连接篇) 对应GT Works3 Version1 (SH-081205CHN-BA)
- GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1 (SH-081198ENG-AU)
- GOT2000系列 连接手册(其他公司机器连接篇1) 对应GT Works3 Version1 (SH-081206CHN-AU)
- GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1 (SH-081199ENG-AQ)
- GOT2000系列 连接手册(其他公司机器连接篇2) 对应GT Works3 Version1 (SH-081207CHN-AP)
- GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)
GT15-RS4-9S: frequently asked questions
When can GT15-RS4-9S be shipped?
GT15-RS4-9S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GT15-RS4-9S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GT15-RS4-9S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT15-RS4-9S, subject to availability and destination.
