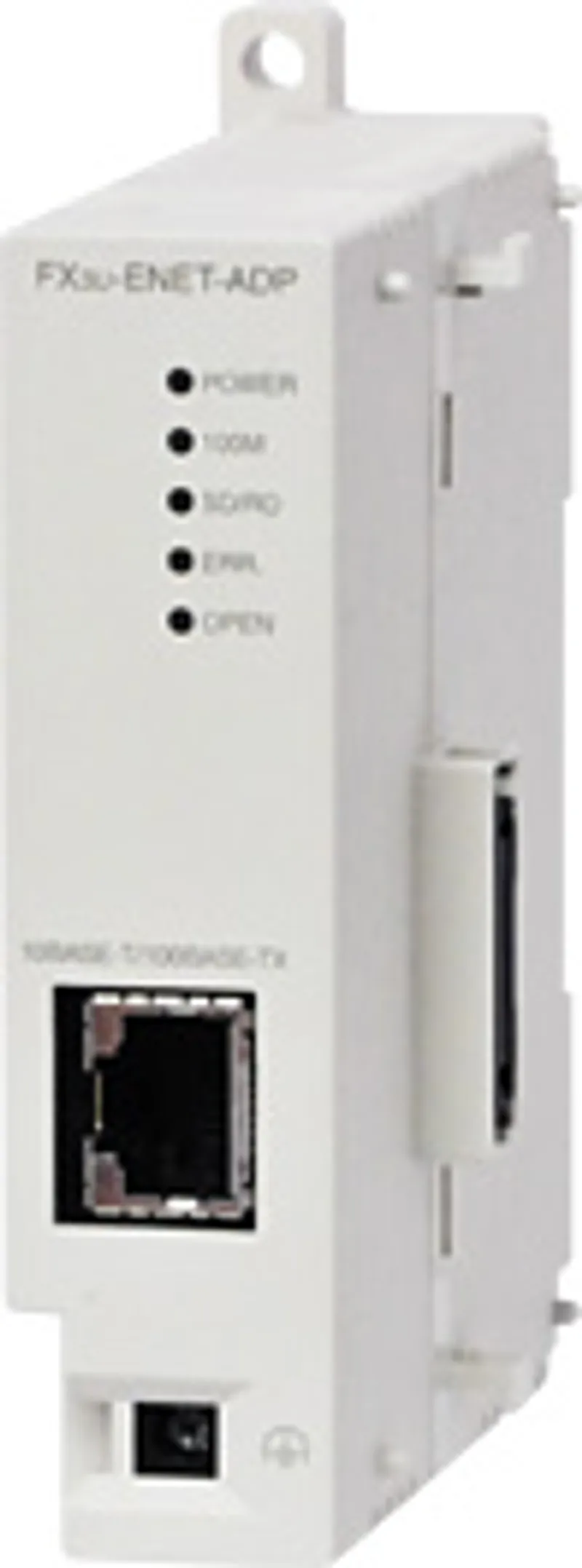

FX3U-ENET-ADP Mitsubishi MELSEC-F (FX) Series Data link/Communication

MPN: FX3U-ENET-ADP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX3U-ENET-ADP (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Data link/Communication
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX3U-ENET-ADP now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX3U-ENET-ADP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX3U-ENET-ADP be shipped?

FX3U-ENET-ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-ENET-ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-ENET-ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-ENET-ADP, subject to availability and destination.

The Mitsubishi Electric FX3U-ENET-ADP is a data link/Communication in the MELSEC-F (FX) Series. Ethernet connection interface. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Data link/Communication
Sales status	2025/03 Discontinued (Mitsubishi Electric)
Outline	Ethernet connection interface

Specifications

Applicable PLC	FX3S, FX3G (Ver. 2.00 or later), FX3U (Ver. 3.10 or later), FX3GC (Ver. 2.00 or later), FX3UC (Ver. 3.10 or later) The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U-ENET-ADP with the FX3U/FX3UC-32MT-LT(-2) PLCs.
Mass (weight)	0.1 kg
Transmission specifications: Data transmission speed	100 Mbps/10 Mbps
Transmission specifications: Communication mode	Full-duplex/Half-duplex
Transmission specifications: Transmission method	Base band
Transmission specifications: Maximum segment length	100 m
Transmission specifications: Maximum number of nodes/connection	10BASE-T: Cascade connection maximum 4 stages 100BASE-TX: Cascade connection maximum 2 stages The value indicates the number of connectable stages when the repeater hub is used. Contact the manufacturer of the switching hub for the number of connectable stages when using the switching hub.
Connector	RJ45
Function	・MELSOFT connections ・Communication Using MC Protocol ・MELSOFT Direct Connection (Simple Connection) ・Find CPU function ・Time setting function *The time setting function (SNTP client) is enabled only after the trigger condition is established. ・Diagnostics function from MELSOFT ・Data monitoring function
Number of connections	MELSOFT connection + MC protocol + Data monitoring ≤ 4
Number of connectable units to the main unit	1 unit The Ethernet adapter occupies 1 communication channel in the same way as communication expansion boards and other communication special adapters.

Power supply specifications

Power supply	30 mA/5 V DC (5 V DC power is supplied internally from the main unit)
Allowable instantaneous power failure time	Same as connected PLC

Specifications

Ambient temperature	0 to 55°C (32 to 131°F) when operating and -25 to 75°C (-13 to 167°F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
