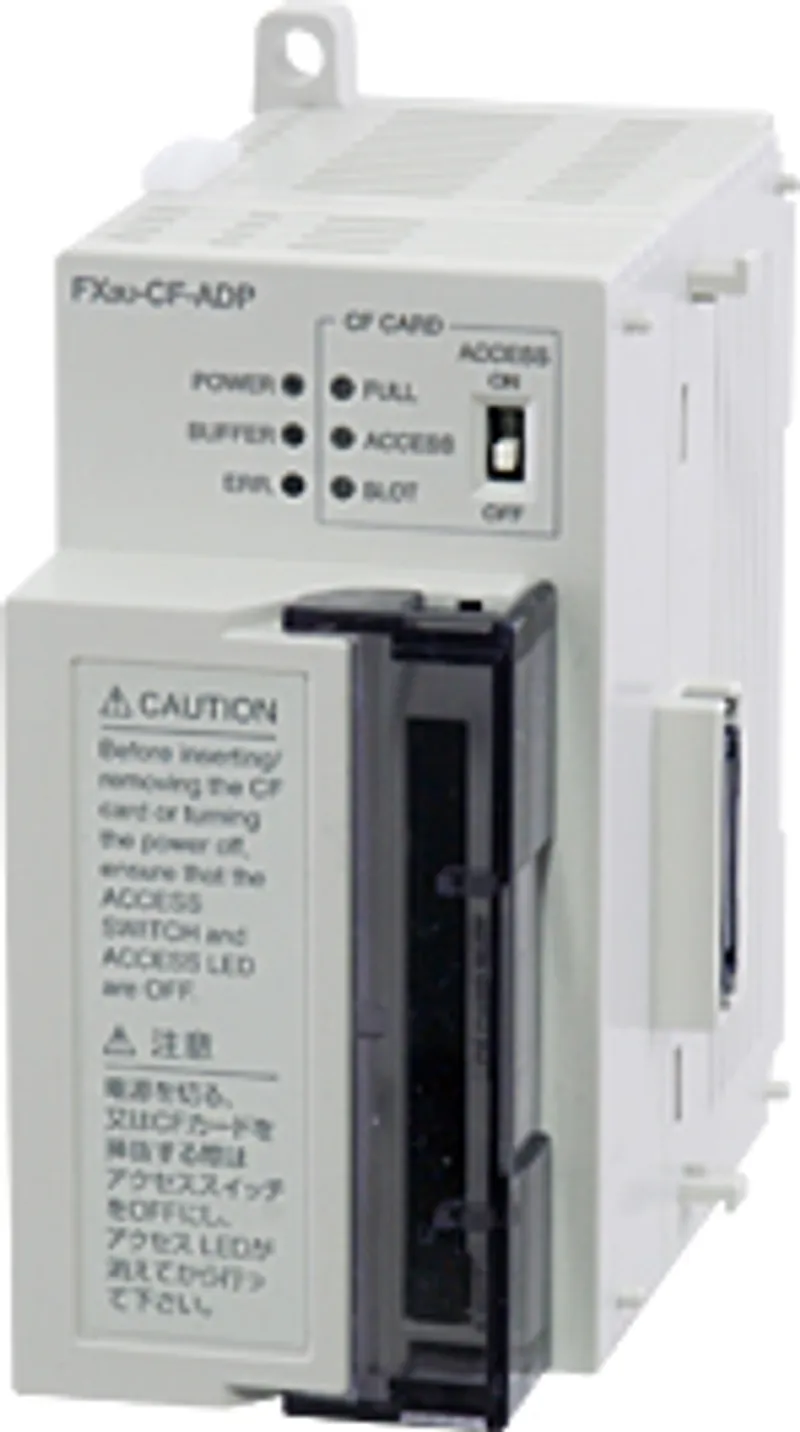

FX3U-CF-ADP Mitsubishi MELSEC-F (FX) Series Option/Training

MPN: FX3U-CF-ADP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX3U-CF-ADP (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Option/Training
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX3U-CF-ADP now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX3U-CF-ADP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX3U-CF-ADP be shipped?

FX3U-CF-ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-CF-ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-CF-ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-CF-ADP, subject to availability and destination.

The Mitsubishi Electric FX3U-CF-ADP is a option/Training in the MELSEC-F (FX) Series. For CF card read/write. Mitsubishi Electric has discontinued it (2023/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Option/Training
Sales status	2023/03 Discontinued (Mitsubishi Electric)
Outline	For CF card read/write

Specifications

Applicable PLC	FX3U (Ver. 2.61 or later), FX3UC (Ver. 2.61 or later) An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2). Only one FX3U-CF-ADP can be expanded to the above PLCs. The module is handled in the same manner as the communication function expansion board and communication special adaptor, so one communication channel (ch) is occupied.
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
Mass (weight)	0.3 kg (CF card not attached)
Data transfer method	Depends on the applied instruction sent from the main unit.
Clock data	Operates based on the clock data in the main unit.
DOS file system	FAT16
The maximum data capacity	2 GB
The maximum file size	512 MB (Per 1 file)
Data format	CSV format
The number of the maximum files	63 file (When the FIFO function is not used)
FIFO functional file	1 pattern. The file name is automatically assigned.
Data storage directory: Standard file	\FX3U_CF\DATA\. (The directory name is fixed.)
Data storage directory: FIFO file	\FX3U_CF\DATA\FIFO\. (The directory name is fixed.)
File name type	8.3 file name (The extension is fixed to "CSV".) Half-width alphanumeric characters and symbols and character strings allowed in the MS-DOS

CF card ACCESS switch specification

ON	Access to the CompactFlash card enabled
OFF	Access to the CompactFlash card disabled Turn OFF the CF card ACCESS switch, and then confirm that the BUFFER LED and ACCESS LED are completely OFF before removing the CompactFlash card or turning OFF the power of the CF-ADP.

CompactFlash card specification

Operating ambient humidity	5 to 95%RH (no condensation)
Power supply voltage	3.3 V 150 mA or less
Connector shape	Type I
Format form	FAT16 (The CompactFlash card shall be formatted in accordance with the FAT16 in advance.)
Data capacity	2 GB or less
Connector terminal	Gilding
No. of installable cards	1
Applicable compact flash card	GT05-MEM-128MC: Flash ROM 128MB GT05-MEM-256MC: Flash ROM 256MB GT05-MEM-512MC: Flash ROM 512MB GT05-MEM-1GC: Flash ROM 1GB GT05-MEM-2GC: Flash ROM 2GB The life of a CompactFlash card is expired when data is written to it a specified number of times. Generally, at the end of the operational life, the CompactFlash card has reduced capabilities. Please use it ensuring sufficient availability.

Power supply specifications

Adapter driving power supply: Power supply voltage	24 V DC +20%/-15% ripple (p-p) 5% or less
Adapter driving power supply: Allowable instantaneous power failure time	Operation continues for an instantaneous power failure of 1ms or less.
Adapter driving power supply: Current consumption	130 mA Connect a 24 V DC power supply to the power supply connector.
Interface driving power	50 mA/5 V DC 5 V DC power is supplied internally from the main unit.

Specifications

Ambient temperature	0 to 55°C when operating and -25 to 75°C when stored The upper limit of the ambient temperature shall not exceed "20℃" below the upper limit of the CompactFlash card operating temperature. Example: When the upper limit of the CompactFlash card operating temperature is 75℃, the upper limit of the ambient temperature is 55℃.
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
