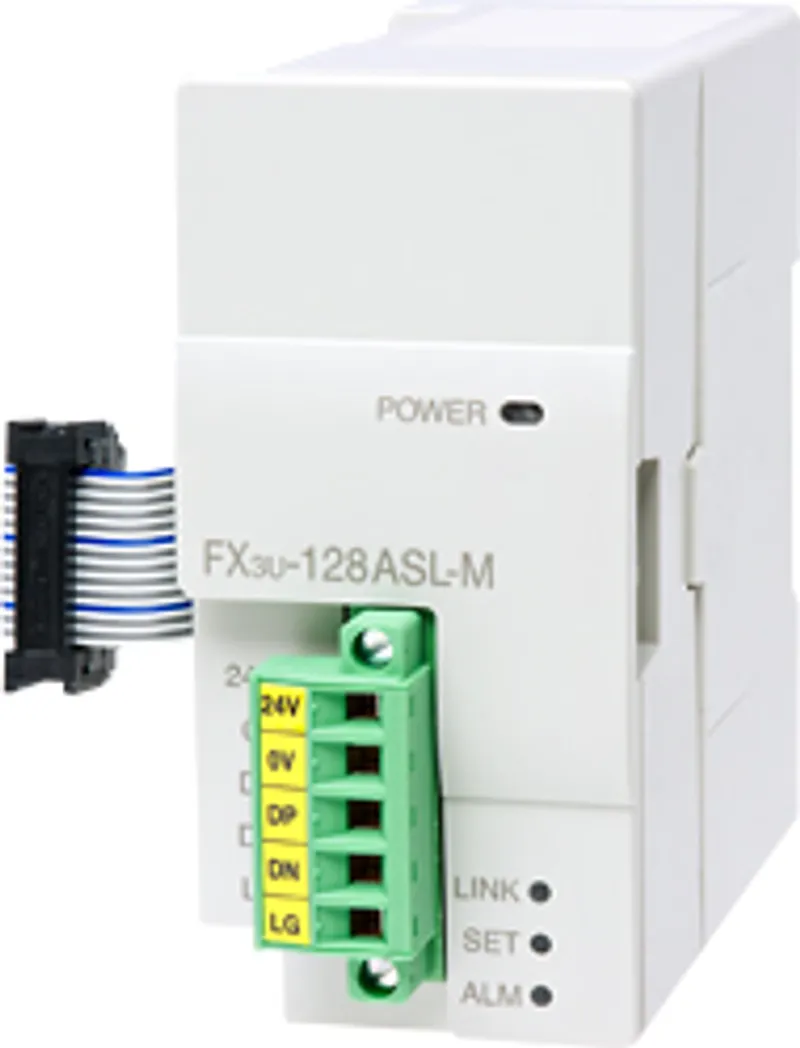

What is the Mitsubishi Electric FX3U-128ASL-M?

The Mitsubishi Electric FX3U-128ASL-M is a network/communication module in the MELSEC iQ-F Series. AnyWireASLINK system master. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineAnyWireASLINK system master

Specifications

Applicable PLCFX5U, FX5UC, FX3G (Ver. 1.00 or later), FX3U (Ver. 2.20 or later), FX3GC (Ver. 1.40 or later), FX3UC (Ver. 2.20 or later) *Only one unit can be connected to a single PLC main unit. [Connecting to the FX5U, FX5UC CPU module] FX5-CNV-BUS or FX5-CNV-BUSC is required to connect to the FX5U/FX5UC CPU module. Select one of the modules according to the system configuration. [Connecting to the connector-t
Number of occupied I/O points8 points (taken from either the input or output points of the PLC)
Mass (weight)0.2 kg
Number of connectable unitsUp to 128 (varies depending on the current consumption of each remote module)
Maximum number of I/O points per systemNumber of input points of the remote module + number of output points of the remote module ≤ 128 points A set number of I/O points from the number of remote I/O points available in the system is occupied. If the set number of I/O points cannot be occupied from the number of remote I/O points available in the system, the input points are given priority and the remaining points are allocated to the
Number of connected I/O pointsUp to 128 points
Connection typeBus topology (multidrop system, T-branch system, tree branch system)
Number of connectable units to the main unit1 module
Transmission systemDC power superimposed total frame cyclic system
Transmission clock27.0 kHz
Maximum transmission distance (total length)200 m (For details on the transmission distance, refer to FX3U-128ASL-M USER'S MANUAL)
Transmission protocolDedicated protocol (AnyWireASLINK)
AnyWireASLINK transmission cable・UL-listed general-purpose 2-wire cable (VCTF, VCT 1.25 mm 2 , 0.75 mm 2 , rated temperature 70°C or higher) ・UL-listed general-purpose wire (1.25 mm 2 , 0.75 mm 2 , rated temperature 70°C or higher) ・Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , rated temperature 90°C)
Power cable・UL-listed general-purpose 2-wire cable (VCTF, VCT 0.75 to 2.0 mm 2 , rated temperature 70°C or higher) ・UL-listed general-purpose wire (0.75 to 2.0 mm 2 , rated temperature 70°C or higher) ・Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , rated temperature 90°C)
Error control systemDouble-check system, checksum
RAS function・Disconnected transmission cable location detection function ・Transmission cable short detection function ・Transmission cable voltage drop detection function
Communication with PLCBy FROM and TO instructions or direct specification of buffer memory (FX3U/FX3UC) via the buffer memory.

Power supply specifications

Internal power supply5 V DC 130 mA (internal power supply from PLC main unit)
External power supply for ASLINK communicationVoltage: 21.6 to 27.6 V DC (24 V DC -10% to +15%), ripple voltage 0.5 Vp-p or lower Recommended voltage: 26.4 V DC (24 V DC +10%) Module current consumption: 100 mA Transmission cable supply current: MAX 2 A (For details, refer to the FX3U-128ASL-M USER'S MANUAL.)

Specifications

Ambient temperature0 to 55°C (32 to 131°F) when operating and -25 to 75°C (-13 to 167°F) when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistanceBetween batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
