Mitsubishi Electric FX3S-5DM

Mitsubishi MELSEC-F (FX) Series Option/Training

MPN
FX3S-5DM
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX3S-5DM (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

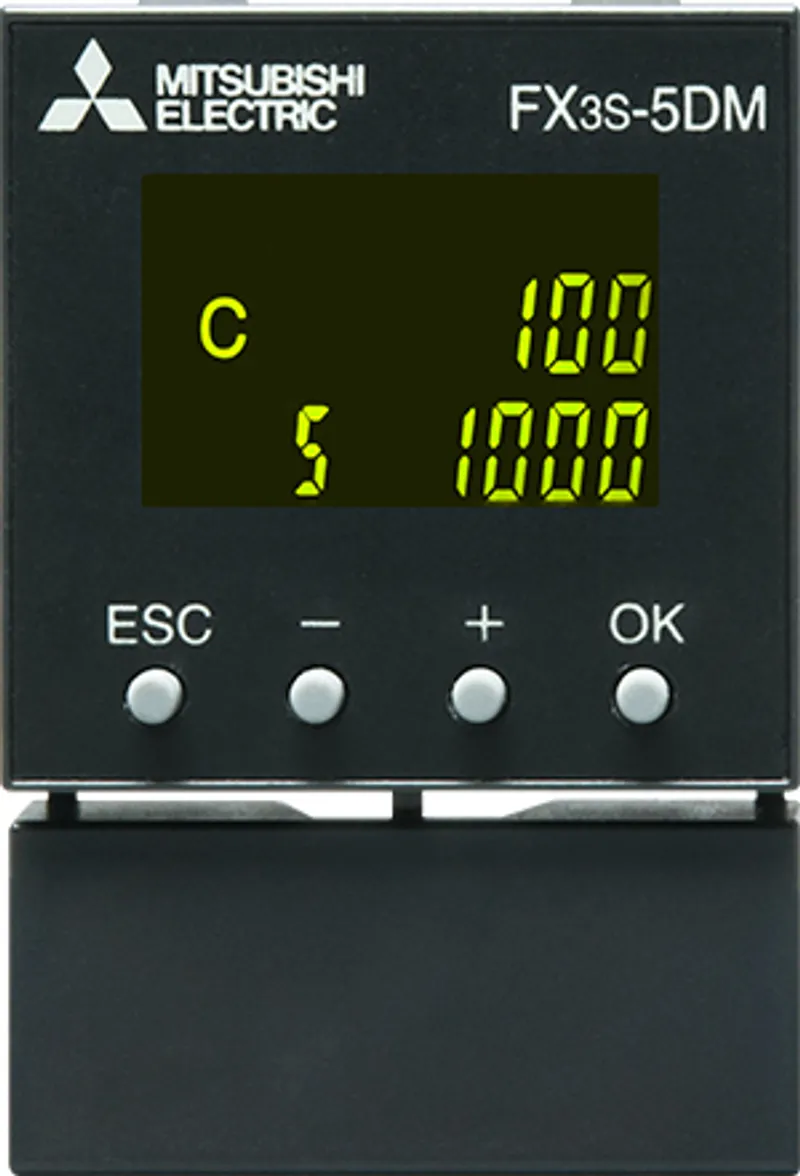

What is the Mitsubishi Electric FX3S-5DM?

The Mitsubishi Electric FX3S-5DM is a option/Training in the MELSEC-F (FX) Series. For FX3S PLC (no wiring required). Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryOption/Training
Sales status2025/03 Discontinued (Mitsubishi Electric)
OutlineFor FX3S PLC (no wiring required)

Specifications

Performance Specifications: Connectable PLCFX3S (Ver.1.20 or later)
Function: Specified device monitor functionDisplays the monitor/test screen for a specified device at the top.
Function: Display screen protect functionEnables all functions, prohibits change (test) functions, and protects the top screen (time display).
Function: Monitor/TestInput (X), output (Y), auxiliary relay (M), state (S), timer (T), counter (C), and data register (D) [16-bit/32-bit] monitor/test function. *There is no test function for "Input (X)".
Function: Error displayPLC errors and keyword error are displayed.
Function: Clock setting: Current timeDisplays the current time.
Function: Clock settingSets the current time.
Function: Operation button ON/OFF informationAllows monitoring of operation button ON/OFF status.
Function: Specifying a hexadecimal current value display formatChanges the display format of the current values and setting values for the timer, counter, and data register to a hexadecimal display format. *A sequence program is required to enable a hexadecimal display of the timer (T), counter (C), and data register (file register) (D) [16-bit/32-bit] current values.
Display specifications: Display deviceTN monochrome liquid crystal display
Display specifications: Display characterSeven-segment display + icon display
Display specifications: Back lightGreen LED backlight
Display specifications: Button4 operation buttons (ESC, -, +, and OK)

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX3S-5DM: frequently asked questions

Can I still buy the FX3S-5DM now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX3S-5DM, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX3S-5DM be shipped?

FX3S-5DM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3S-5DM in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3S-5DM and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3S-5DM, subject to availability and destination.
