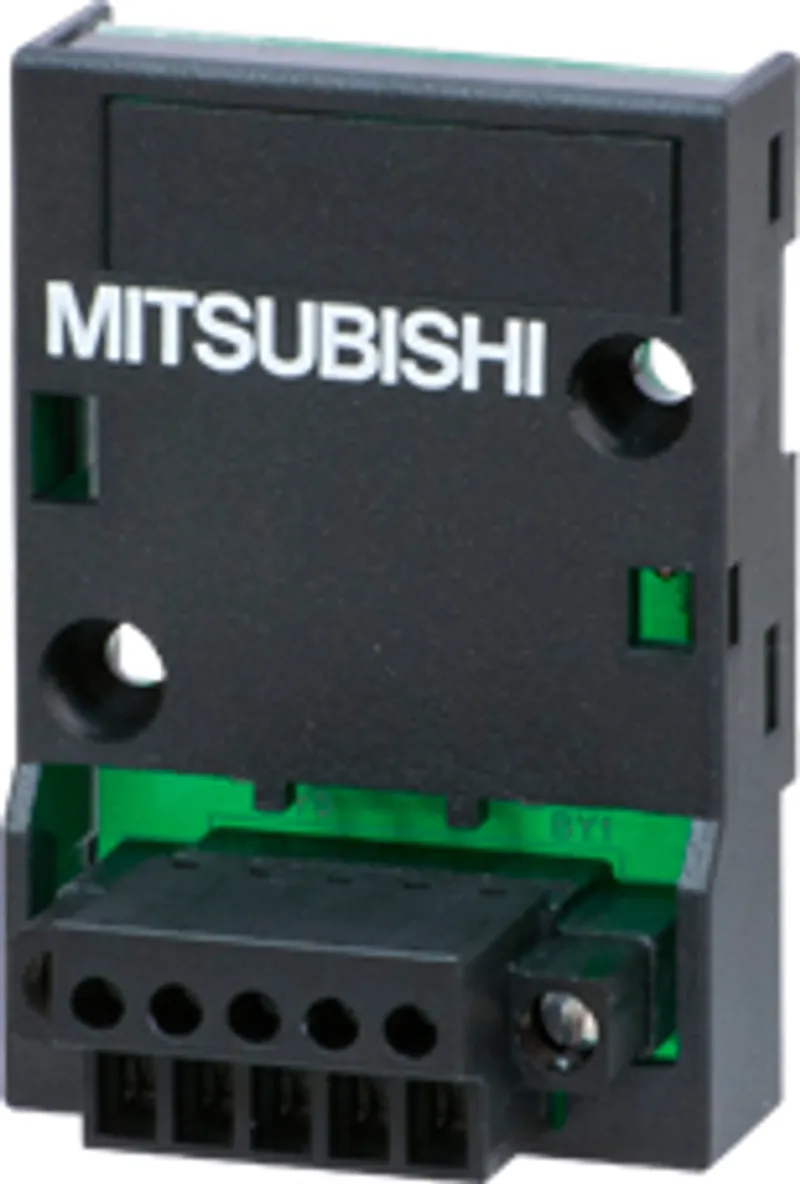

Mitsubishi Electric FX3G-2EYT-BD

Mitsubishi MELSEC-F (FX) Series Input/output extension

MPN
FX3G-2EYT-BD
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX3G-2EYT-BD?

The Mitsubishi Electric FX3G-2EYT-BD is a input/output extension in the MELSEC-F (FX) Series. Output: 2 points. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryInput/output extension
OutlineOutput: 2 points

Specifications

Applicable PLCFX3S (V1.10 or later), FX3G (V2.20 or later)

Output specifications

No. of output points2 points
Output connection typeTerminal block for Europe
Output typeTransistor (Sink/source)
External power supply5 V to 30 V DC
Max. load: Resistance load0.5 A/1 point
Max. load: Inductive load12 W/24 V DC
Open circuit leakage current0.1 mA/30 V DC
ON voltage1.5 V or less
Response time: OFF→ON0.2 ms or less
Response time: ON→OFF0.2 ms or less
Insulation of circuitPhotocoupler insulation
Indication of output operationLED on panel lights when photocoupler is driven.

Specifications

Ambient temperature0 to 55°C when operating and -25 to 75°C when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2.
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween output terminal of expansion output board and ground terminal of main unit: 500 V AC for 1 min
Insulation resistanceBetween output terminal of expansion output board and ground terminal of main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
