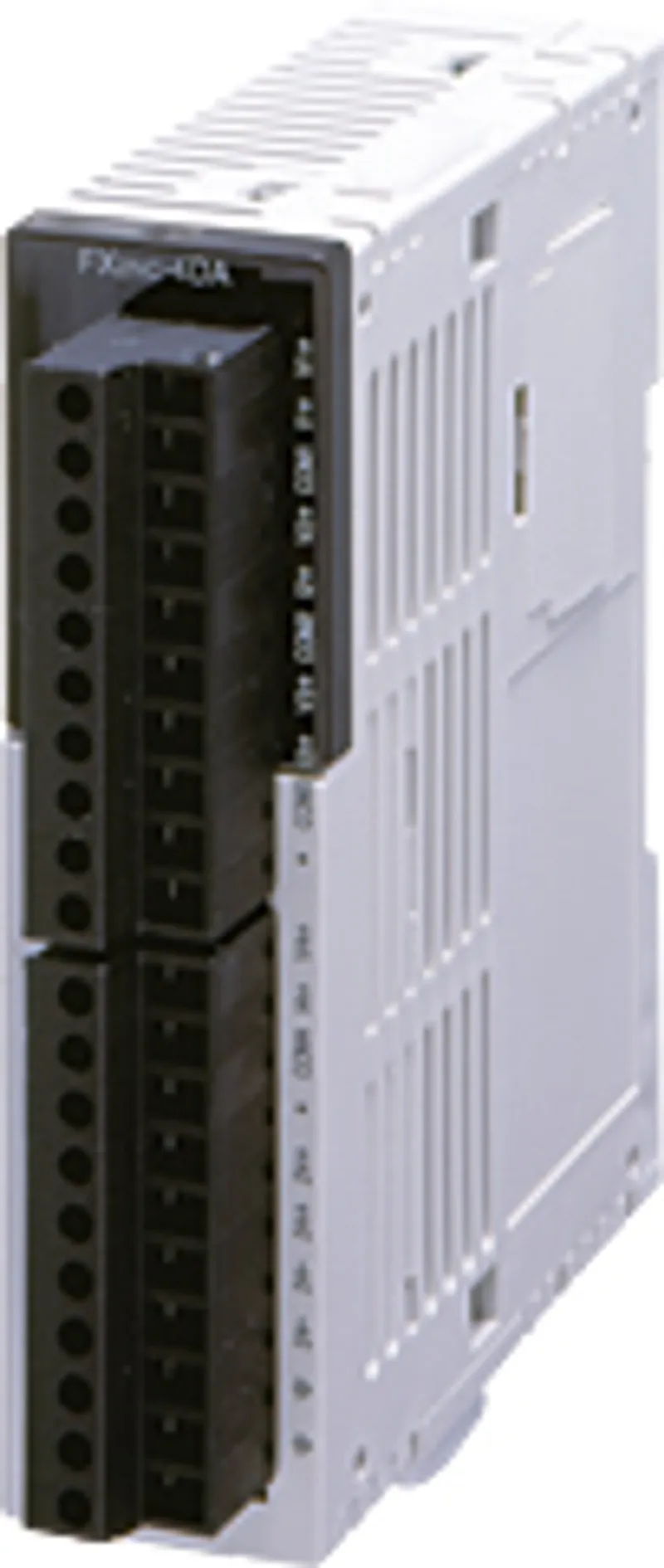

FX2NC-4DA Mitsubishi MELSEC-F (FX) Series Analog

MPN: FX2NC-4DA · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2NC-4DA (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Analog
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX2NC-4DA now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2NC-4DA, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2NC-4DA be shipped?

FX2NC-4DA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2NC-4DA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2NC-4DA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2NC-4DA, subject to availability and destination.

The Mitsubishi Electric FX2NC-4DA is a analog in the MELSEC-F (FX) Series. Analog output: 4 ch. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Sales status	2015/12 Discontinued (Mitsubishi Electric)
Outline	Analog output: 4 ch

Specifications

Applicable PLC	FX2NC, FX3UC
Number of occupied I/O points	8 points (Taken from either the input or output points of the PLC.)
Mass (weight)	0.13 kg
Analog output: Analog output range: Voltage output	-10 V to +10 V DC (External load resistance: 2 k to 1 MΩ)
Analog output: Analog output range: Current output	0 mA to +20 mA DC (External load resistance: 500 Ω or less)
Analog output: No. of output channels	4 channels
Analog output: Output characteristics	The output mode (voltage/current output) can be set for each channel.
Analog output: Digital input: Voltage output	11 bits binary + sign 1 bit
Analog output: Digital input: Current output	10 bits binary (without the sign)
Analog output: Resolution: Voltage output	5 mV (10 V × 1/2000)
Analog output: Resolution: Current output	20 μA (20 mA × 1/1000)
Analog output: Total accuracy: Voltage output	Ambient temperature: 25°C±5°C ±0.5% (±100 mV) for 20 V full scale Ambient temperature: 0°C to 55°C ±1.0% (±200 mV) for 20 V full scale
Analog output: Total accuracy: Current output	Ambient temperature: 25°C±5°C ±0.5% (±80 μA) for 16 mA full scale Ambient temperature: 0°C to 55°C ±1.0% (±160 μA) for 16 mA full scale
Analog output: Time required for D/A conversion	2.1 ms/4 ch (The number of selected channels will not affect this value.)
Analog output: Isolation method	・The photocoupler is used to insulate the analog output area from the PLC. ・The analog output area and power supply are isolated with a transformer. ・Channels are not isolated from each other.

Power supply specifications

Power supply

5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC ±10% 130 mA (External power supply)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
