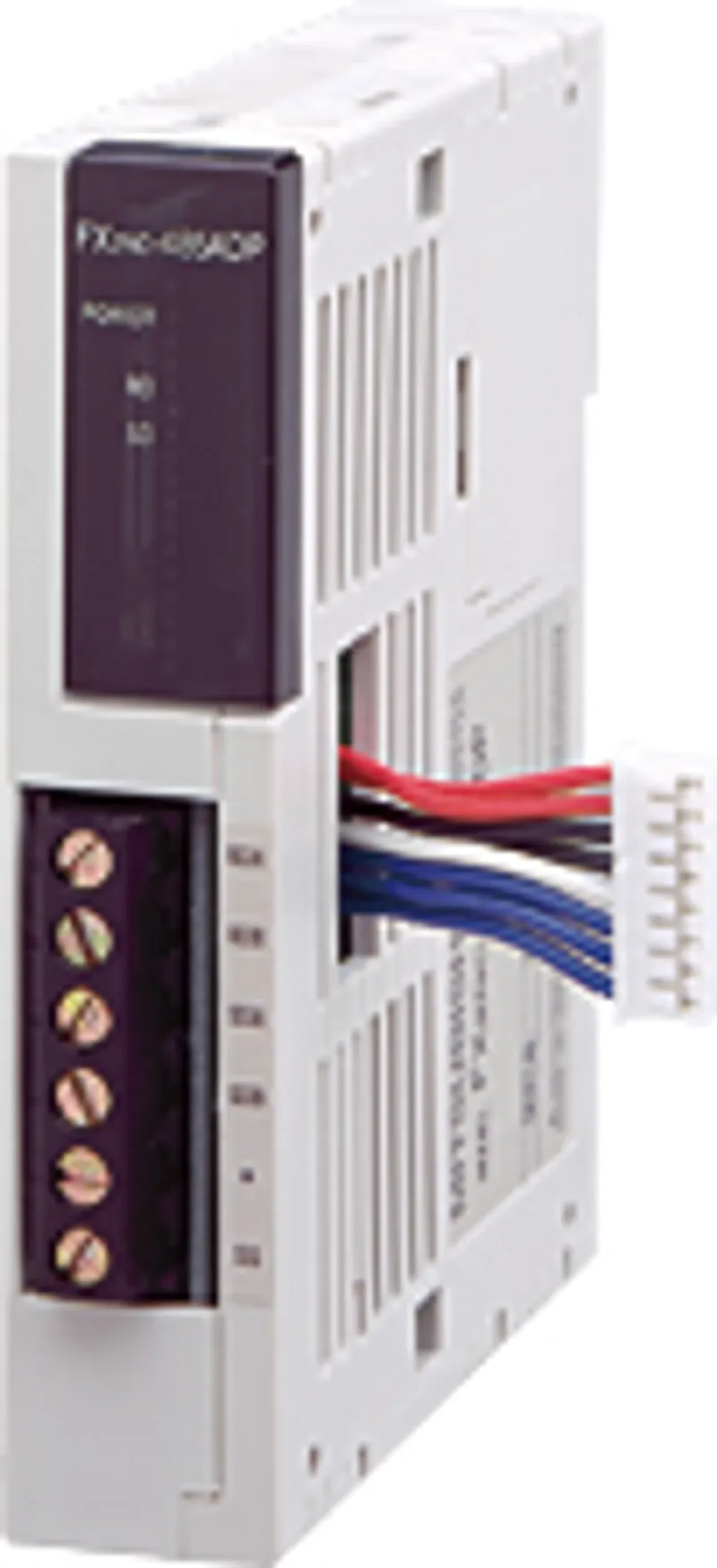

FX2NC-485ADP Mitsubishi MELSEC-F (FX) Series Data link/Communication
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2NC-485ADP (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-F (FX) Series – Data link/Communication |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the FX2NC-485ADP now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2NC-485ADP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can FX2NC-485ADP be shipped?
FX2NC-485ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FX2NC-485ADP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FX2NC-485ADP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2NC-485ADP, subject to availability and destination.
The Mitsubishi Electric FX2NC-485ADP is a data link/Communication in the MELSEC-F (FX) Series. RS-485 communication. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-F (FX) Series |
| Category | Data link/Communication |
| Sales status | 2015/12 Discontinued (Mitsubishi Electric) |
| Outline | RS-485 communication |
Specifications
| Applicable PLC | FX1S, FX1N, FX2N, FX1NC, FX2NC The FX1N-CNV-BD is required to connect the FX1S, FX1N. The FX2N-CNV-BD is required to connect the FX2N. |
| Number of occupied I/O points | 0 point (This number is not related to the maximum number of input/output points of the PLC.) |
| Mass (weight) | 0.1 kg |
| Communication method | Half-duplex, bidirectional communication |
| Communication speed: Non-protocol communication, Computer link | 300/600/1200/2400/4800/9600/19200 (bps) |
| Communication speed: Parallel link | 19200 (bps) |
| Communication speed: N:N Network | 38400 (bps) |
| Communication speed: Inverter communication | 4800/9600/19200 (bps) |
| Communication format | Non-Protocol Communication, Computer link (Dedicated protocol formats 1, Dedicated protocol formats 4), Parallel Link, N:N Network, Inverter Communication (FX2N, FX2NC function extension memory are required) |
| Transmission standard | Conforming to RS-485/RS-422 |
| Transmission distance | Total extension distance: 500 m or less [50 m or less if FX2N-485-BD, FX1N-485-BD, FX3U-485-BD or FX3G-485-BD is installed to connected equipment] |
| Connection method | Terminal block for Europe |
| LED | RD, SD, POWER |
| Isolation method | Photocoupler insulation |
Power supply specifications
| Power supply | 5 V DC 150 mA (internal power supply from PLC main unit) |
Specifications
| Ambient temperature | 0 to 55°C (32 to 131°F) when operating and -20 to 70°C (-4 to 158°F) when stored |
| Ambient humidity | 35 to 85%RH (no condensation) when operating |
| Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance: Direct installing: Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance: Direct installing: Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | General purpose |
| Insulation resistance | Between all external terminals and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
More Mitsubishi Electric (Factory Automation) parts

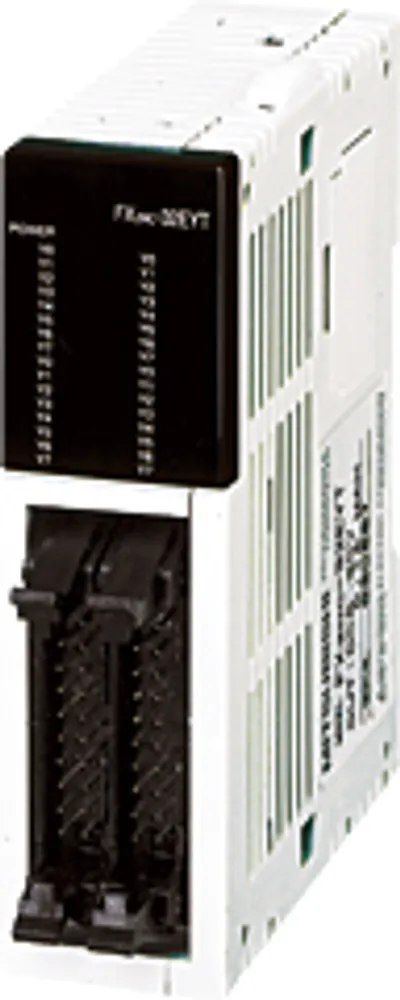

Available on requestFX2NC-32EYT-DSS Mitsubishi MELSEC-F (FX) Series Input/output extension
Available on requestFX2NC-32MT Mitsubishi MELSEC-F (FX) Series Main unit
Available on requestFX2NC-32MT-D/UL Mitsubishi MELSEC-F (FX) Series Main unit
Available on requestFX2NC-32MT-DSS Mitsubishi MELSEC-F (FX) Series Main unit
Available on requestFX2NC-4AD Mitsubishi MELSEC-F (FX) Series Analog
Available on requestFX2NC-4DA Mitsubishi MELSEC-F (FX) Series Analog

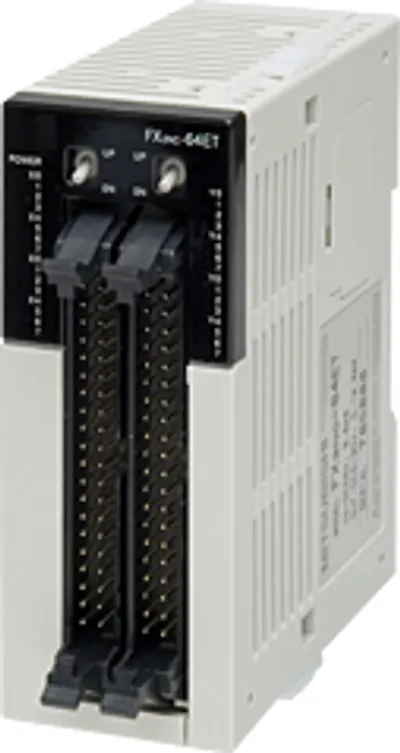

Available on requestFX2NC-64ET Mitsubishi MELSEC-F (FX) Series Input/output extension
