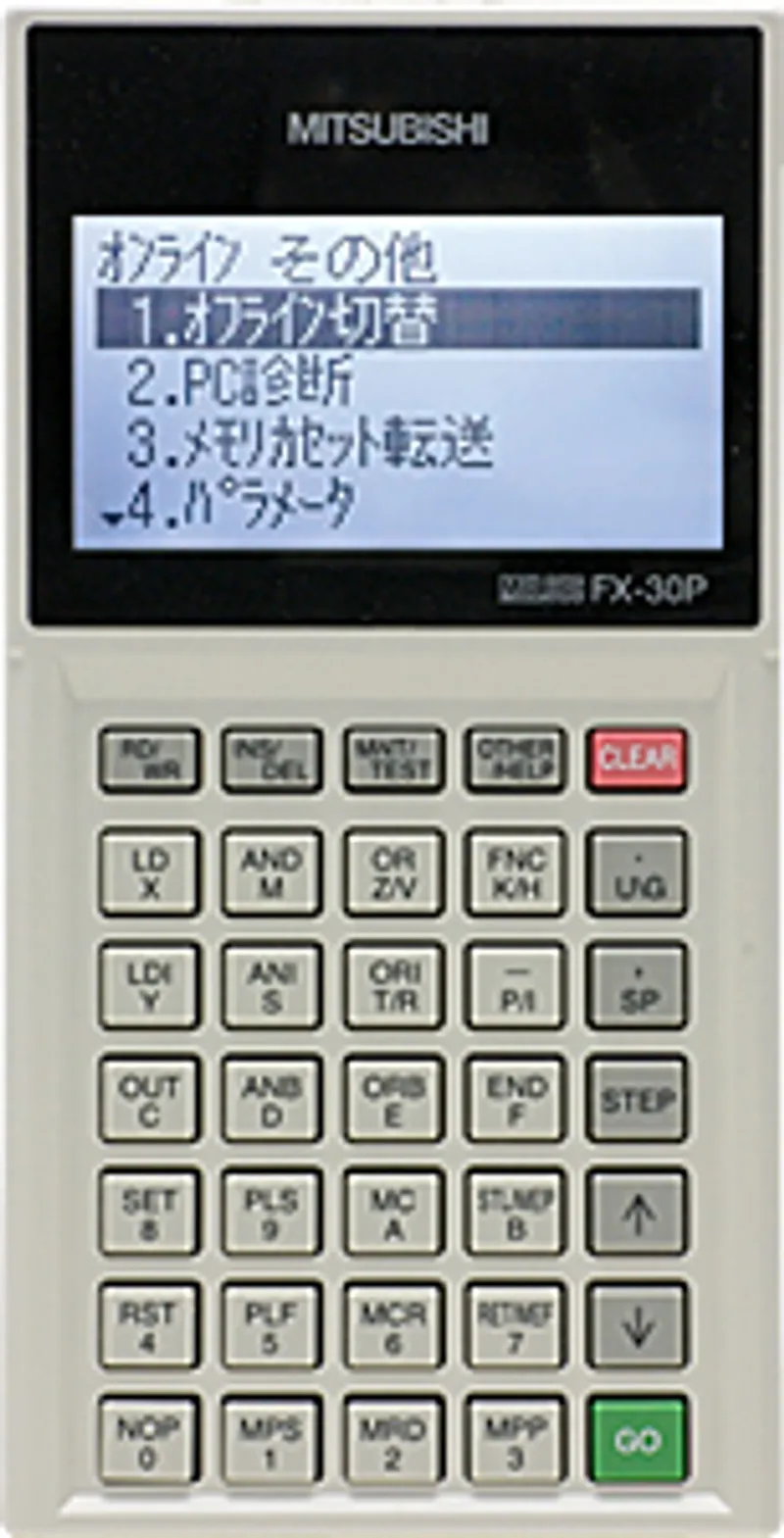

FX-30P Mitsubishi MELSEC-F (FX) Series Programming

MPN: FX-30P · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX-30P (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Programming
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX-30P now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX-30P, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX-30P be shipped?

FX-30P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX-30P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX-30P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX-30P, subject to availability and destination.

The Mitsubishi Electric FX-30P is a programming in the MELSEC-F (FX) Series. Program, read, and write with a list format. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Programming
Sales status	2025/03 Discontinued (Mitsubishi Electric)
Outline	Program, read, and write with a list format

Specifications

Applicable PLC	Compatible with all FX series FX0, FX0S, FX0N, FX1S, FX3S, FX1N, FX2N, FX1NC, FX3GC, FX2NC, FX3G, FX3U, and FX3UC series PLC connection cable (FX-20P-CAB0) enclosed. Connection to FX3S is supported with FX-30P firmware 1.50 or later. The FX-20P-CAB (option) is required to connect the FX1, FX2, FX2C PLC.
Display unit: Type	STN monochrome (white/black) liquid crystal
Display unit: Resolution	128 × 64 dots
Display unit: Number of characters	21half-width × 8lines
Display unit: Display size	W66.54 x H33.26 [mm]
Display unit: Foreground color	Monochrome (white/black)
Memory: Program capacity: Built-in RAM	Up to 64 K step *RAM retention (for about five years, ambient temperature 25°C (77°F)) by battery.
Memory: Program capacity: Built-in flash memory	Up to 15 programs can be stored in the built-in flash memory ROM. Allowable number of writes: 100,000 times
Memory: Held data	Display language setting (Japanese, English or Chinese), contrast, buzzer sound volume, brightness adjustment, screen saver and HPP protect key (saved in the built-in flash memory)
Back light	White
Key figure	35 keys
Buzzer	Adjustable among 9 levels (including the buzzer OFF level)
Contrast adjustment	8-level adjustment
Intensity of LCD	Adjustable among 9 levels (including the backlight OFF level)

Power supply specifications

External power supply: Power supply voltage	5 V DC ± 5% (Power supply is supplied from PLC or personal computer (Power supply by bus power).)
External power supply: Current consumption: Supplied from PLC	155 mA (When the intensity of LCD backlight is set at the maximum value 8) 115 mA (When the intensity of LCD backlight is set at the initial value 4)
External power supply: Current consumption: Supplied from personal computer	165 mA (When the intensity of LCD backlight is set at the maximum value 8) 125 mA (When the intensity of LCD backlight is set at the initial value 4)

Specifications

Ambient temperature	0 to 40°C (32 to 104 °F) when operating and -25 to 75°C (-13 to 167°F) when stored
Ambient humidity	5 to 95%RH (no condensation)
Vibration resistance: Frequency: 5 to 9 Hz	Half amplitude: 3.5 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Frequency: 9 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
