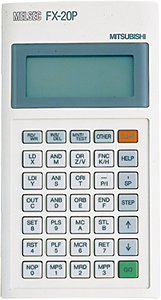

FX-20P-SET0 Mitsubishi MELSEC-F (FX) Series Programming

MPN: FX-20P-SET0 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX-20P-SET0 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Programming
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX-20P-SET0 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX-20P-SET0, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX-20P-SET0 be shipped?

FX-20P-SET0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX-20P-SET0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX-20P-SET0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX-20P-SET0, subject to availability and destination.

The Mitsubishi Electric FX-20P-SET0 is a programming in the MELSEC-F (FX) Series. Program, read, and write with a list format. Mitsubishi Electric has discontinued it (2012/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Programming
Sales status	2012/12 Discontinued (Mitsubishi Electric)
Outline	Program, read, and write with a list format

Specifications

Applicable PLC	FX1S, FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC FX3G, and FX3GC can be used within the FX1N function range supported by peripheral devices. FX3U and FX3UC can be used within the FX2N function range supported by peripheral devices.
Display unit: Type	LCD display with backlight
Display unit: Resolution	1 character: 40 dots (8 × 5), bottom 5 dots of each line (1 × 5 dots) are used for the prompt
Display unit: Number of characters	64 characters (16 characters × 4 lines)
Display unit: Types of characters	Alphanumeric
Memory: Program capacity	RAM: 16 K steps (8 K steps in FX-20P main units that were manufactured in November 1996 or earlier with manufacturer serial No.s "6Y****" or earlier)
Memory: Latch device	Memory backup capacitor After being powered for 1 hour it can retain internal device data for 3 days without externally supplied power
Key figure	35 keys
Built-in interface: PLC interface	In conformance to EIA and RS422, connected to FX Series PLC with cable FX-20P-CAB or FX-20P-CAB0.
Built-in interface: Extension interface	Connected to extension module
ROM writer function	Available when dedicated module is connected (write, read, collation and deletion check)

Power supply specifications

Power supply voltage	5 V DC±5% supplied from PLC
Current consumption	150 mA (When FX-20P-RWM is used, the current is 180 mA.)

Specifications

Ambient temperature	0 to 40℃
Ambient humidity	35 to 85%RH (no condensation)
Vibration resistance: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
