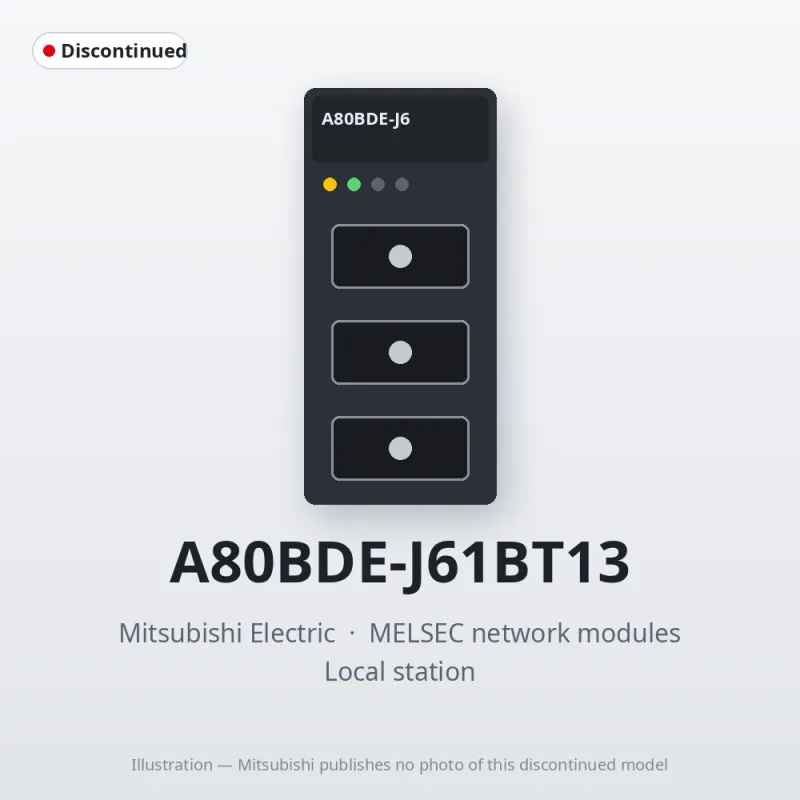

Mitsubishi Electric A80BDE-J61BT13

Mitsubishi MELSEC network modules Network interface boards

MPN
A80BDE-J61BT13
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original A80BDE-J61BT13 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric A80BDE-J61BT13?

The Mitsubishi Electric A80BDE-J61BT13 is a network interface boards in the MELSEC network modules. CC-Link local station PCI bus, English OS supported. Mitsubishi Electric has discontinued it (2006/06 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryNetwork interface boards
TypeLocal station
SubtypeVer.1 compatible
Sales status2006/06 Discontinued (Mitsubishi Electric)
OutlineCC-Link local station PCI bus, English OS supported

Specifications

Transmission speed156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 156 kbps1200 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 625 kbps900 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 2.5 Mbps400 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 5 Mbps160 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 10 Mbps100 m
Station typeLocal station (Ver. 1 local station)
Number of occupied stations: Local station1 or 4 stations
Maximum number of link points per system: CC-Link Ver.1Remote I/O (RX, RY) : 2048 points Remote register (RWw) : 256 points Remote register (RWr) : 256 points
Number of link points per station: CC-Link Ver.1Remote I/O (RX, RY) : 30 points Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Communication methodBroadcast polling method
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Network topologyBus (RS-485)
Transmission formatHDLC compliant
Error control systemCRC (X 16 + X 12 + X 5 + 1)
Communication cableVer.1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver.1.00 compatible) CC-Link dedicated high-performance cable (Ver.1.00 compatible)
Number of installable boardsMaximum 4 boards (This indicates the total number of A80BDE-J61BT11 and A80BDE-J61BT13 boards.)
Installation slotPCI slot
Internal current consumption (5 V DC)0.40 A
Weight0.16 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 10...57 Hz, Amplitude: 0.075 mm Frequency: 57...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 10...57 Hz, Amplitude: 0.035 mm Frequency: 57...150 Hz, Acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

A80BDE-J61BT13: frequently asked questions

Can I still buy the A80BDE-J61BT13 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the A80BDE-J61BT13, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can A80BDE-J61BT13 be shipped?

A80BDE-J61BT13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up A80BDE-J61BT13 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for A80BDE-J61BT13 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for A80BDE-J61BT13, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric A7BDE-J71AR21 – Mitsubishi MELSEC-A Network / communication module
Mitsubishi Electric
A7BDE-J71AR21

Mitsubishi MELSEC-A Network / communication module

Mitsubishi Electric A80BD-J61BT11 – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
A80BD-J61BT11

Mitsubishi MELSEC network modules Network interface boards

Mitsubishi Electric A80BD-J61BT13 – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
A80BD-J61BT13

Mitsubishi MELSEC network modules Network interface boards

Mitsubishi Electric A80BDE-J61BT11 – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
A80BDE-J61BT11

Mitsubishi MELSEC network modules Network interface boards

Mitsubishi Electric A8BAT – Mitsubishi MELSEC-A Battery
Mitsubishi Electric
A8BAT

Mitsubishi MELSEC-A Battery

Mitsubishi Electric A8BAT-SET – Mitsubishi MELSEC-A Battery
Mitsubishi Electric
A8BAT-SET

Mitsubishi MELSEC-A Battery

Mitsubishi Electric A9GT-QCNB – Mitsubishi GOT HMI Bus extension connector box
Mitsubishi Electric
A9GT-QCNB

Mitsubishi GOT HMI Bus extension connector box

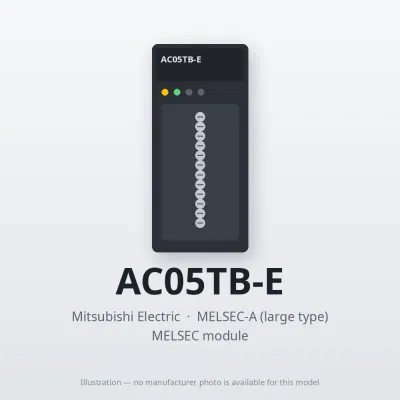

Mitsubishi Electric AC05TB-E – Mitsubishi MELSEC-A Module
