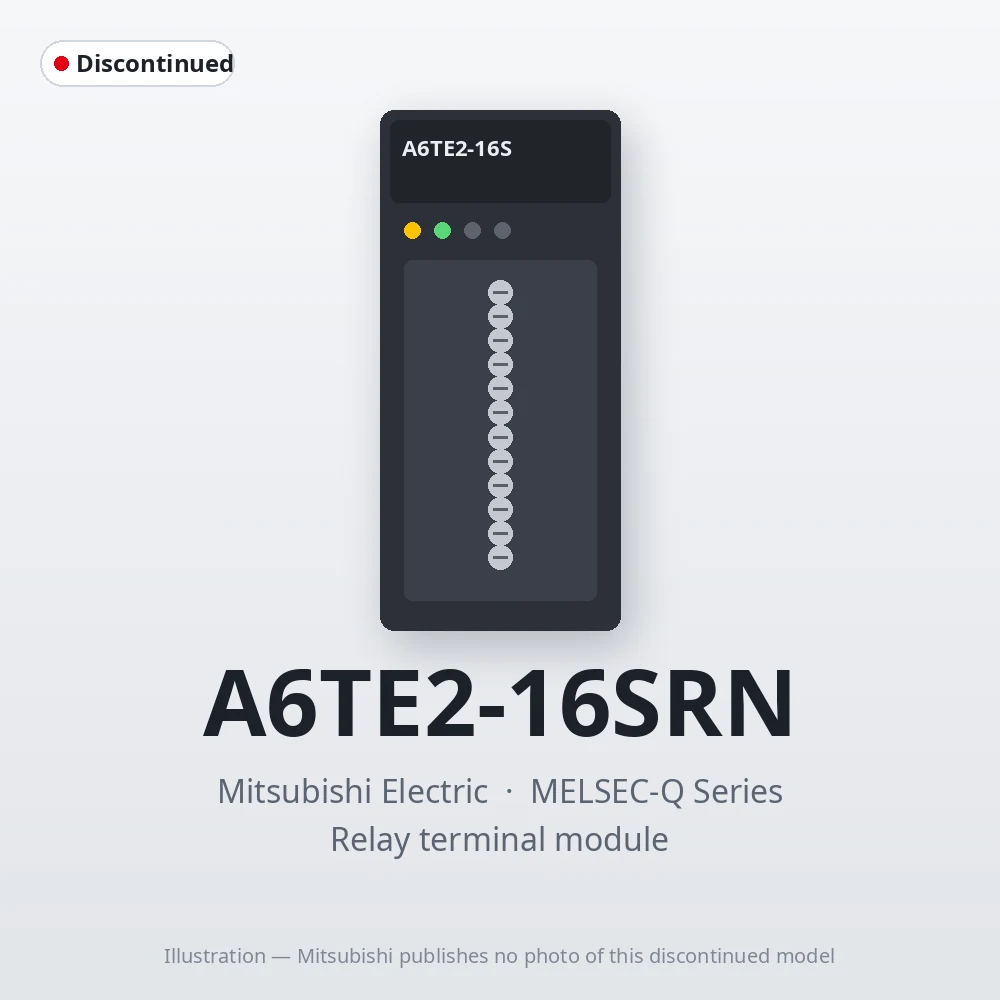

A6TE2-16SRN Mitsubishi MELSEC-Q Series Relay terminal module
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original A6TE2-16SRN (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-A Series (large type, discontinued) |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the A6TE2-16SRN now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the A6TE2-16SRN, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can A6TE2-16SRN be shipped?
A6TE2-16SRN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up A6TE2-16SRN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for A6TE2-16SRN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for A6TE2-16SRN, subject to availability and destination.
The Mitsubishi Electric A6TE2-16SRN is a relay terminal module in the MELSEC-Q Series. Relay terminal module for 40-pin connector 24 V DC transistor output module (sink type). Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Relay terminal module |
| Sales status | 2023/12 Discontinued (Mitsubishi Electric) |
| Outline | Relay terminal module for 40-pin connector 24 V DC transistor output module (sink type) |
Specifications
| Number of output points | 16 points |
| Isolation method | Relay |
| Rated switching voltage, current | 24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 8 A/common |
| Minimum switching load | 5 V DC, 1 mA |
| Maximum switching voltage | 264 V AC, 125 V DC |
| Response time: OFF to ON | 10 ms or less (excluding delay of the PC output module) |
| Response time: ON to OFF | 12 ms or less (excluding delay of the PC output module) |
| Life: Mechanical | 20 million times or more |
| Life: Electrical | Rated switching voltage/current load: More than 100 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 100 thousand times 200 V AC 1 A, 240 V AC 0.5 A (COSø=0.35): 100 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 100 thousand times |
| Maximum switching frequency | 3600 times/hour |
| Surge suppressor | None |
| Fuse | None |
| Common terminal arrangement | 8 points/common |
| Operation indication | ON indication (LED) |
| External interface | 38-point terminal block (M3 screw) |
| Relays for replacement | RV3T-3G24 (made by IDEC Corporation, prepared by user) |
| External power supply: Voltage | 24 V DC ±10 % (ripple voltage: 4 Vp-p or lower) |
| External power supply: Current | 350 mA (at TYP. 24 V DC and all points ON) |
| External dimensions: Height | 67 mm |
| External dimensions: Width | 180 mm |
| External dimensions: Depth | 52.6 mm |
| Weight | 0.35 kg |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
