Kuka U636368

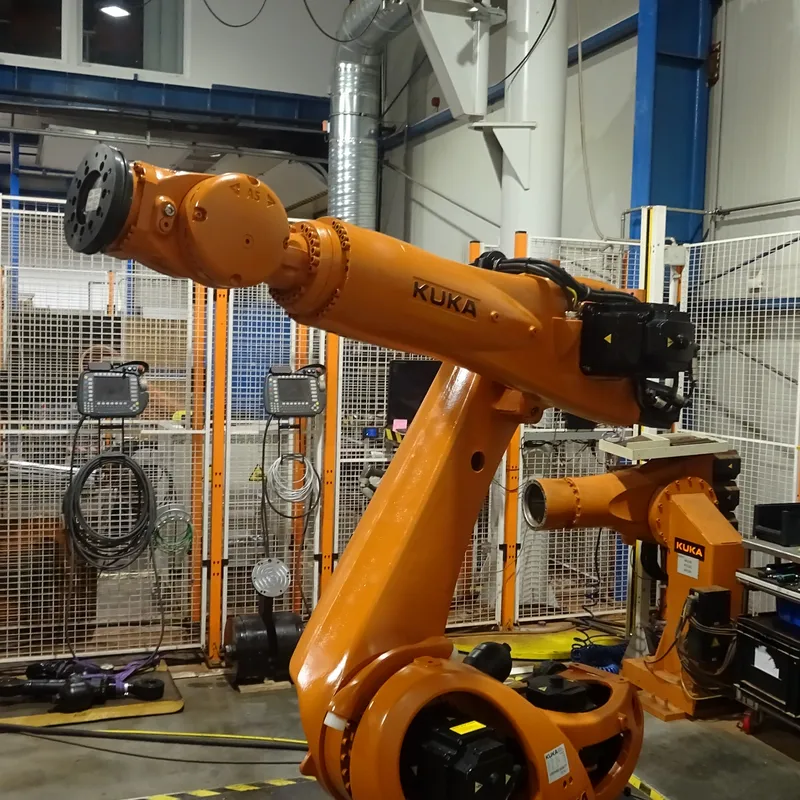

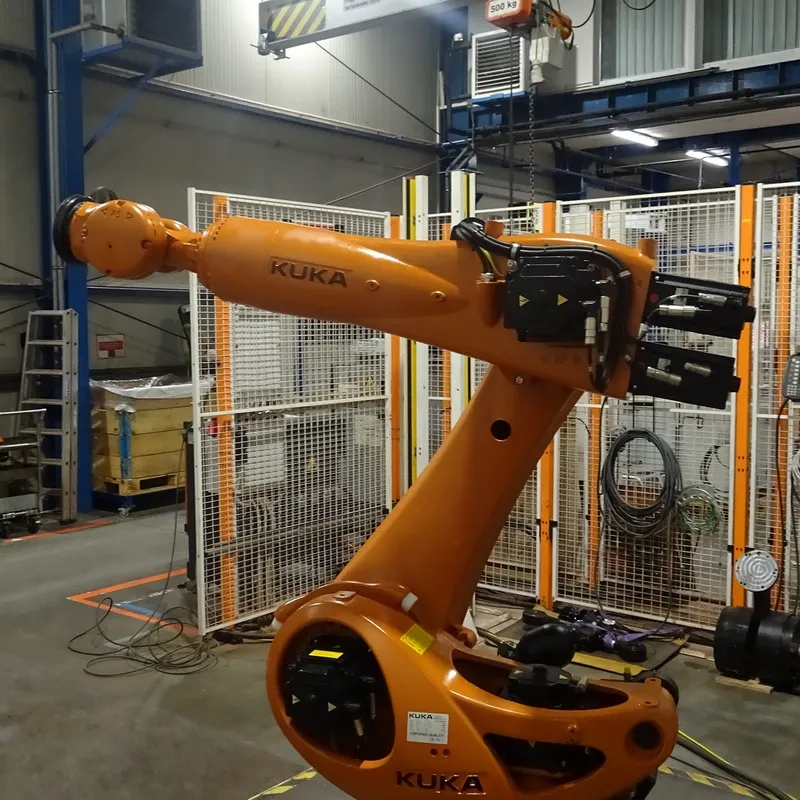

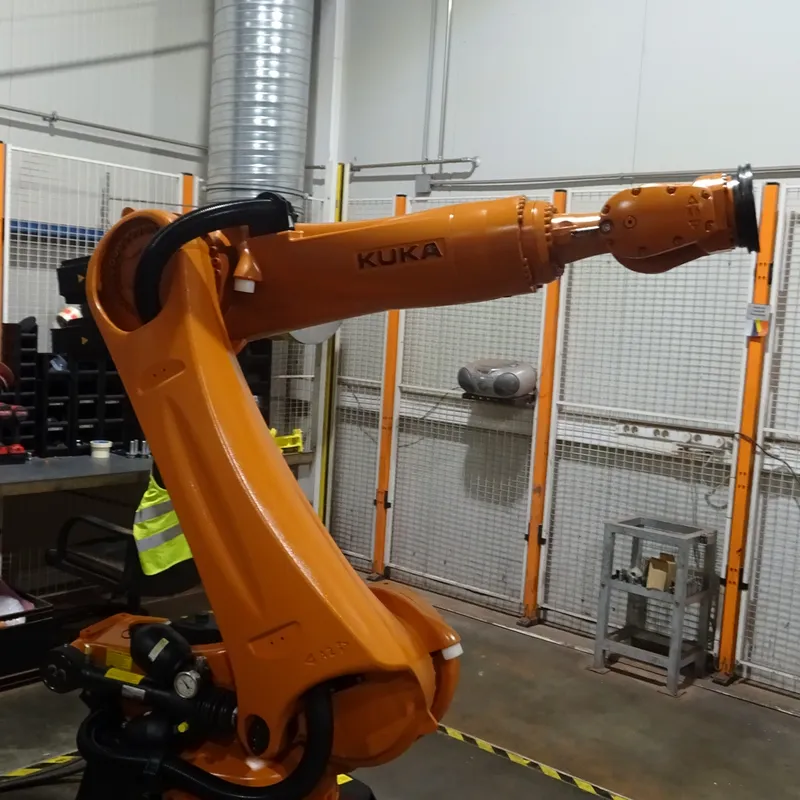

KR 210 R2700 extra incl. KR C4 EU

MPN: U636368
Category: High payload class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U636368?

Kuka KR 210 R2700 extra incl. KR C4 EU, manufacturer part number U636368. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Rated payload	210 kg
Maximum reach	2696 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.06 mm
Number of axes	6
Ambient temperature during operation	10 °C to 55 °C (283 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	123 °/s
A2	115 °/s
A3	112 °/s
A4	179 °/s
A5	172 °/s
A6	219 °/s
Height	1062.5
Depth	596 mm
Maximum number of servo axes	9
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 25 A slow-blowing, max. 3x 32 A slow-blowing, see rating plate

U636368: frequently asked questions

When can U636368 be shipped?

U636368 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U636368 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U636368 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U636368, subject to availability and destination.
