Home / Kuka / KR CYBERTECH nano-2 ARC / Kuka 355822

Kuka

Kuka 355822

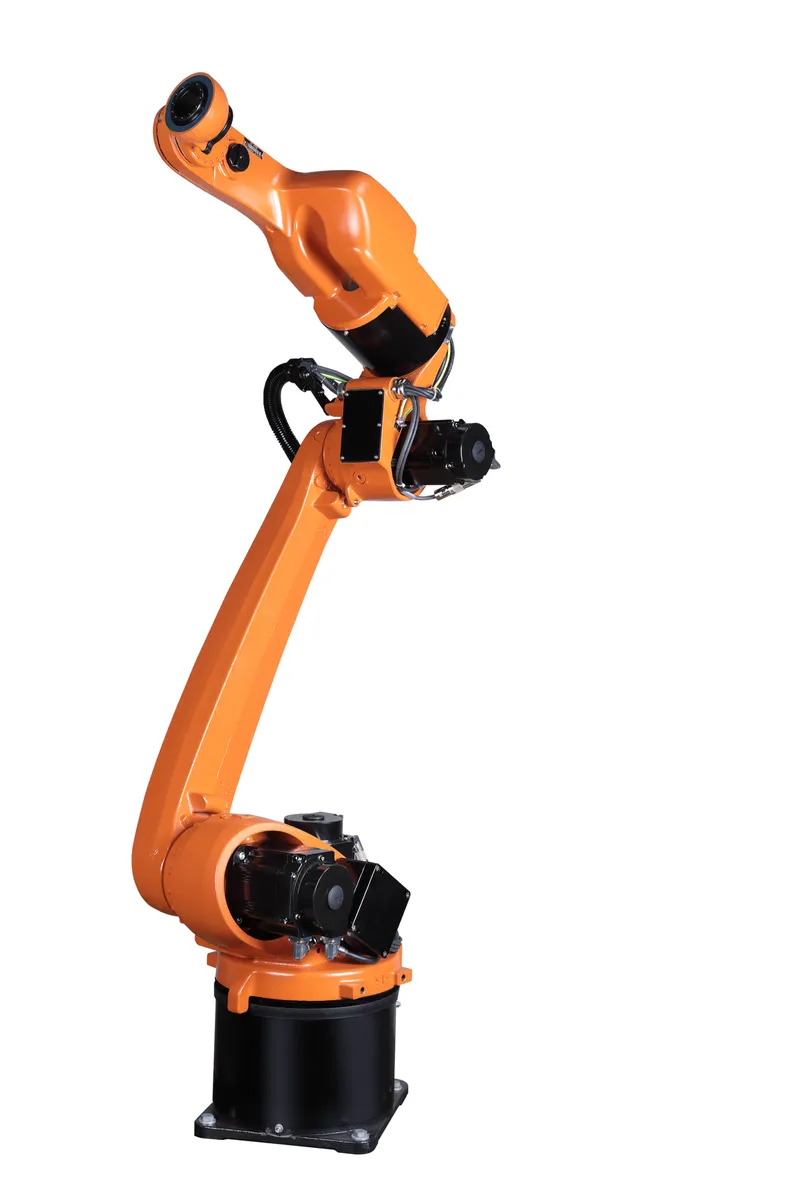

KR 6 R1840-2 arc HW

MPN: 355822
Category: KR CYBERTECH nano-2 ARC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 355822?

Kuka KR 6 R1840-2 arc HW, manufacturer part number 355822. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	12.6 kg
Rated payload	6 kg
Maximum reach	1843 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.04 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP65
Prot. rating, in-line wrist (IEC 60529)	IP54
Cleanroom class (ISO 14644-1)	Class 5 at 40% override, Class 5 at 80% override
A1	220 °/s
A2	210 °/s
A3	270 °/s
A4	430 °/s
A5	430 °/s
A6	628 °/s
