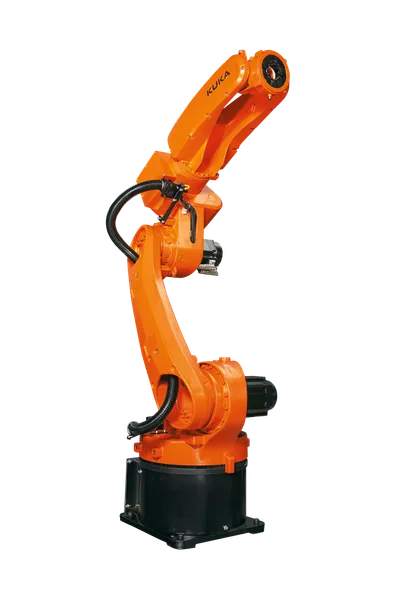

Compare KR CYBERTECH nano-2 ARC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum payload | Maximum reach | A1 | A2 | A3 |
|---|
| 390410 | 9 kg | 1441 mm | 230 °/s | 230 °/s | 230 °/s |
| 394511 | 6.56 kg | 2010 mm | 200 °/s | 165 °/s | 200 °/s |
| 355820 | 14.5 kg | 1441 mm | 220 °/s | 210 °/s | 270 °/s |
| 355821 | 10.7 kg | 1641 mm | 220 °/s | 210 °/s | 270 °/s |
| 355822 | 12.6 kg | 1843 mm | 220 °/s | 210 °/s | 270 °/s |
| 446654 | 11.3 kg | 1441 mm | 230 °/s | 230 °/s | 230 °/s |
Common to all listed parts
| Pose repeatability (ISO 9283) | 0.04 mm |
| Number of axes | 6 |
| Ambient temperature during stor./transp. | -25 °C to 60 °C (248 K to 333 K) |
| A4 | 430 °/s |
| A5 | 430 °/s |
