What is the Kuka 334944?

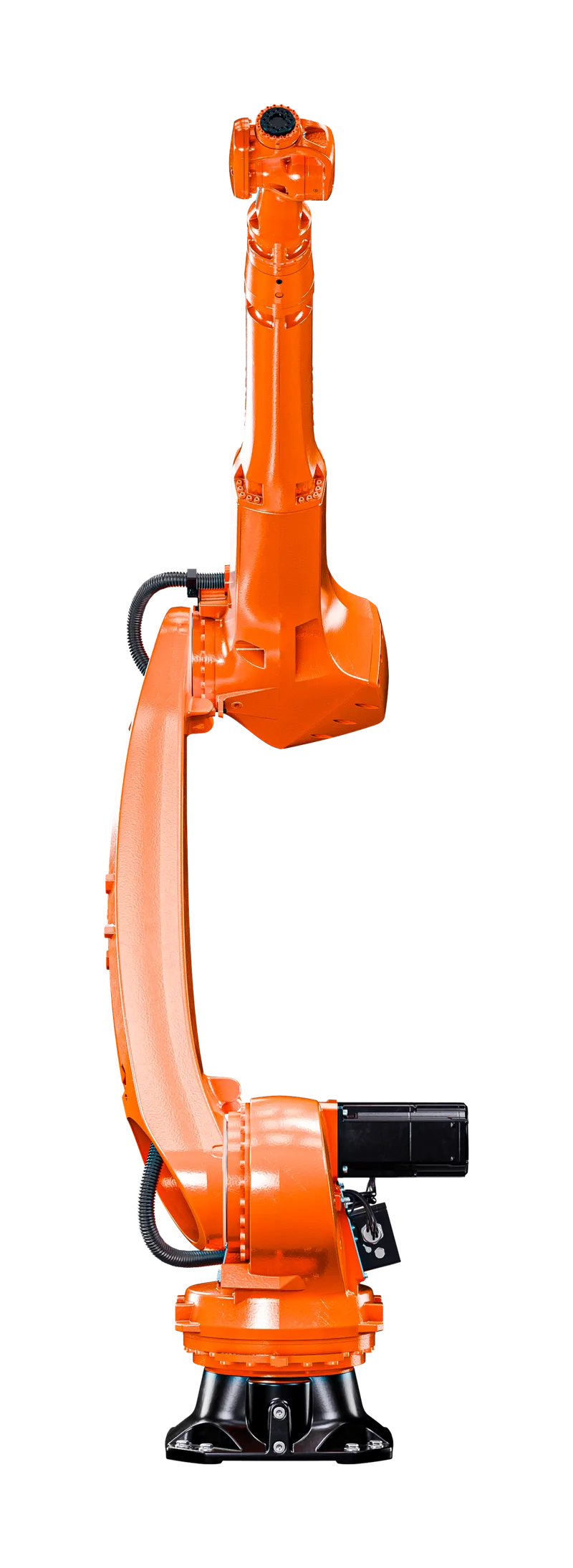

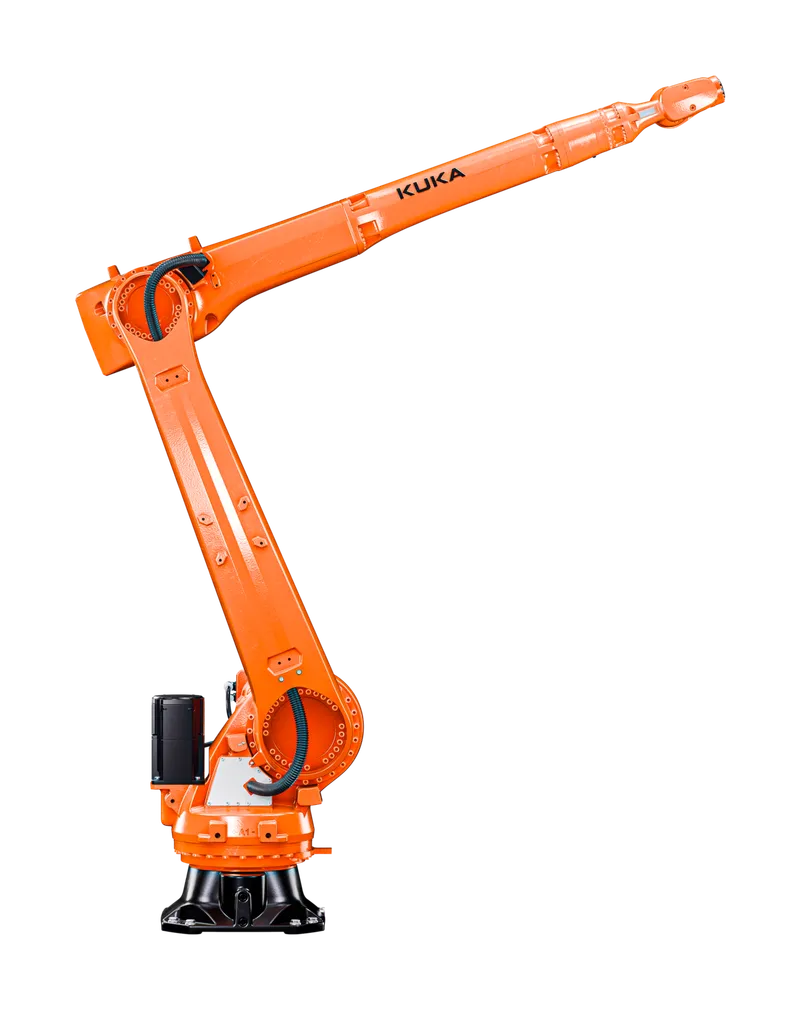

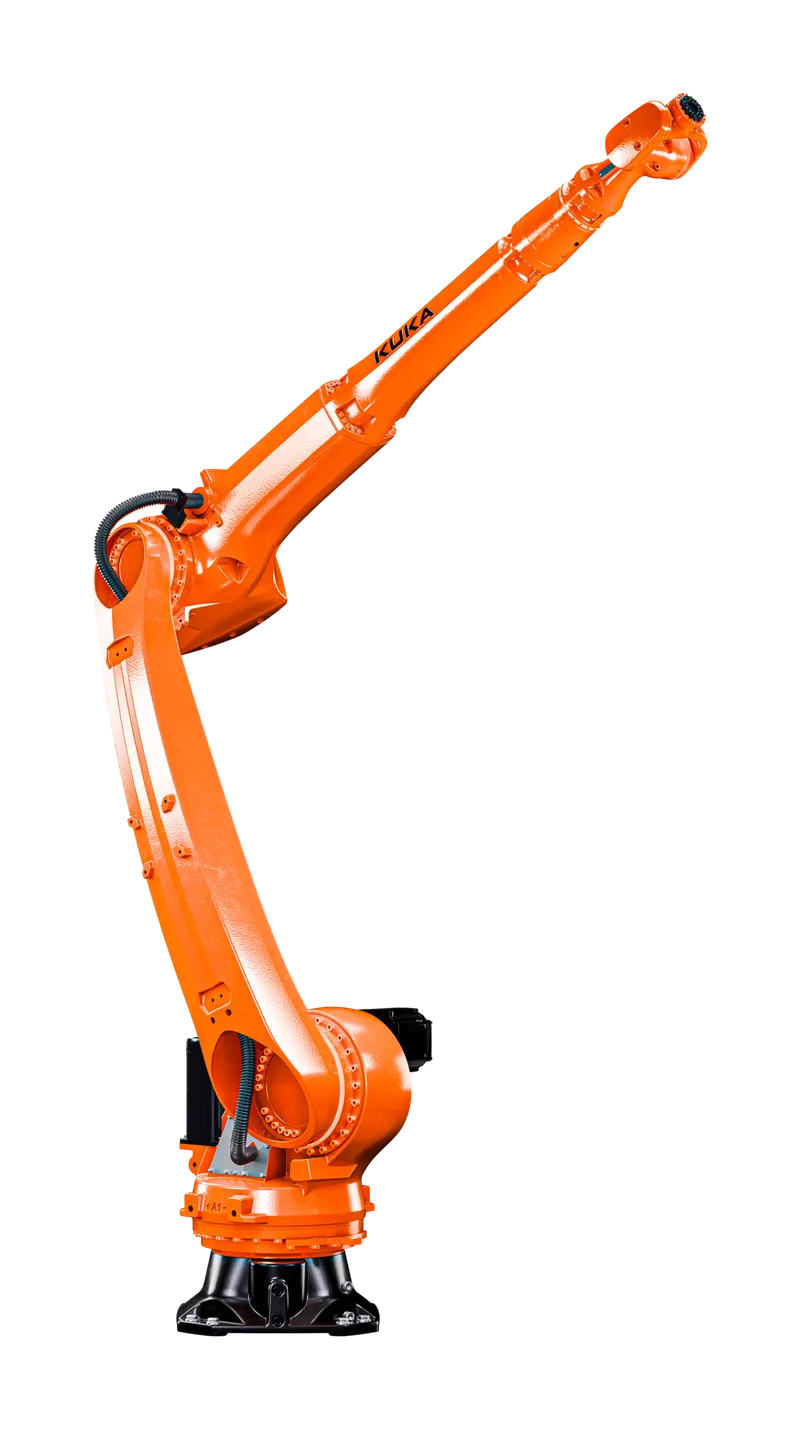

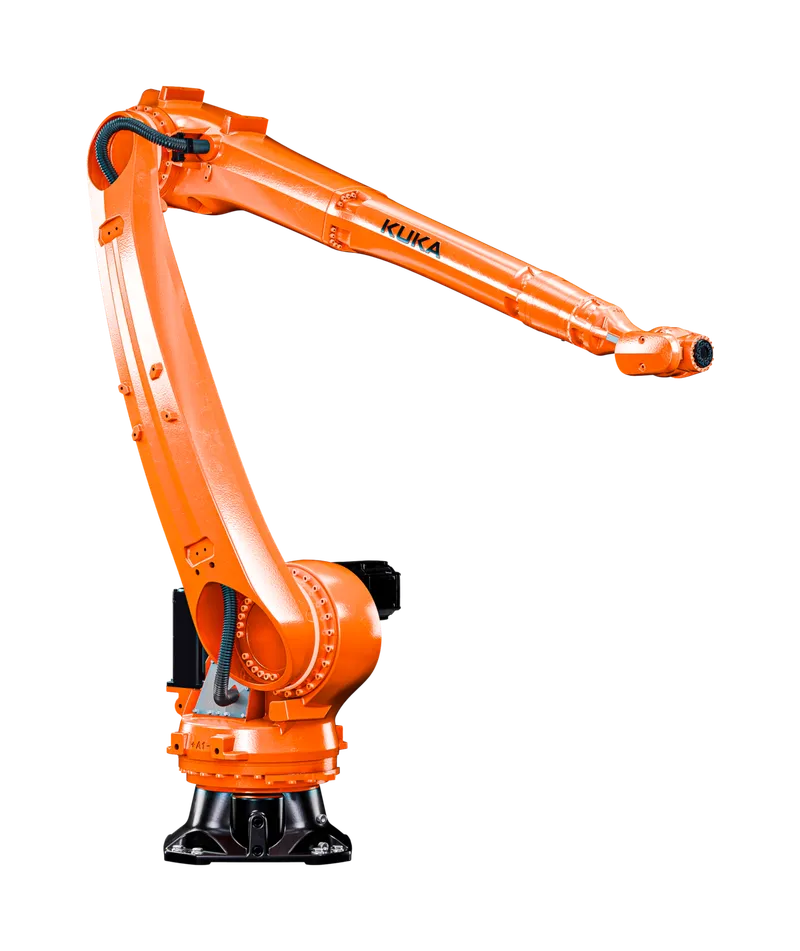

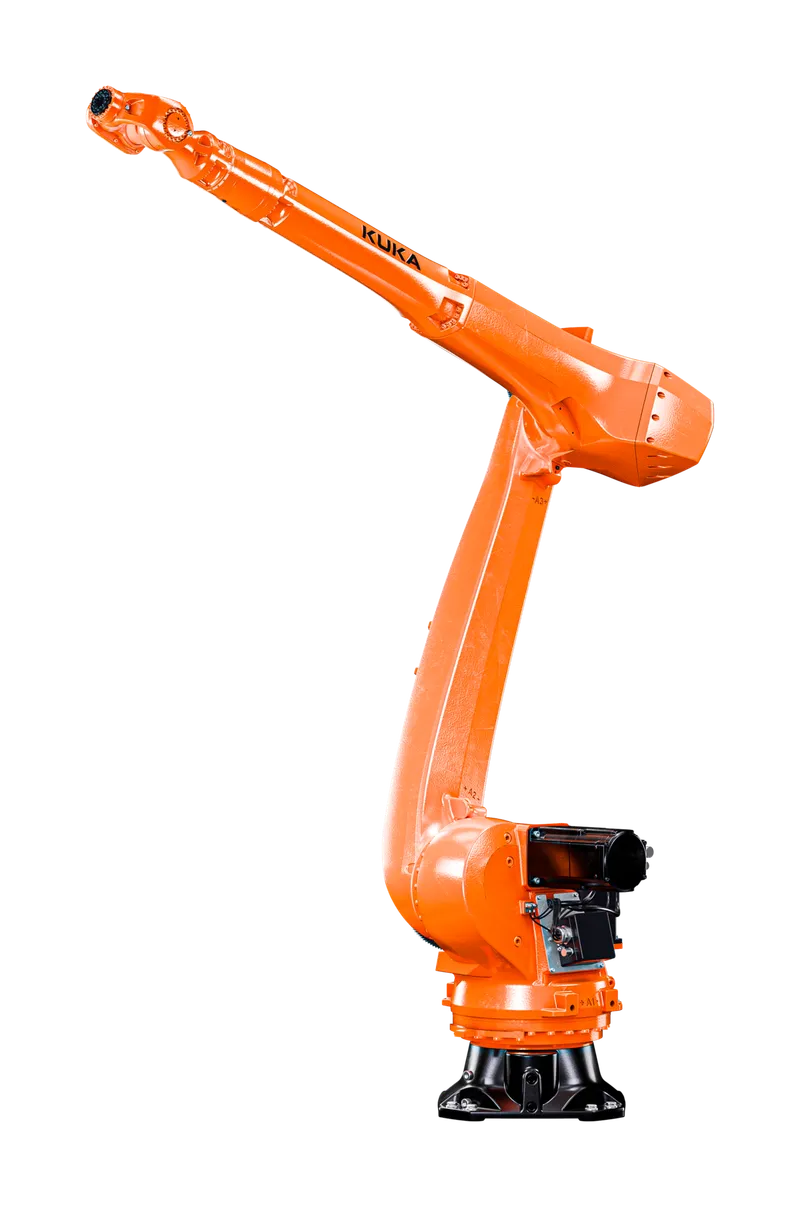

Kuka KR 20 R3100, manufacturer part number 334944. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Maximum payload | 24 kg |
| Rated payload | 20 kg |
| Maximum reach | 3101 mm |
| Mounting position | Floor, Ceiling, Wall, Desired angle |
| Pose repeatability (ISO 9283) | 0.05 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 0 °C to 55 °C (273 K to 328 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Protection rating (IEC 60529) | IP65 |
| Prot. rating, in-line wrist (IEC 60529) | IP65 |
| A1 | 180 °/s |
| A2 | 165 °/s |
| A3 | 160 °/s |
| A4 | 360 °/s |
| A5 | 360 °/s |
| A6 | 630 °/s |
334944: frequently asked questions
When can 334944 be shipped?
334944 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 334944 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 334944 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 334944, subject to availability and destination.
