Kuka 293594

MPN: 293594
Category: KR AGILUS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 293594?

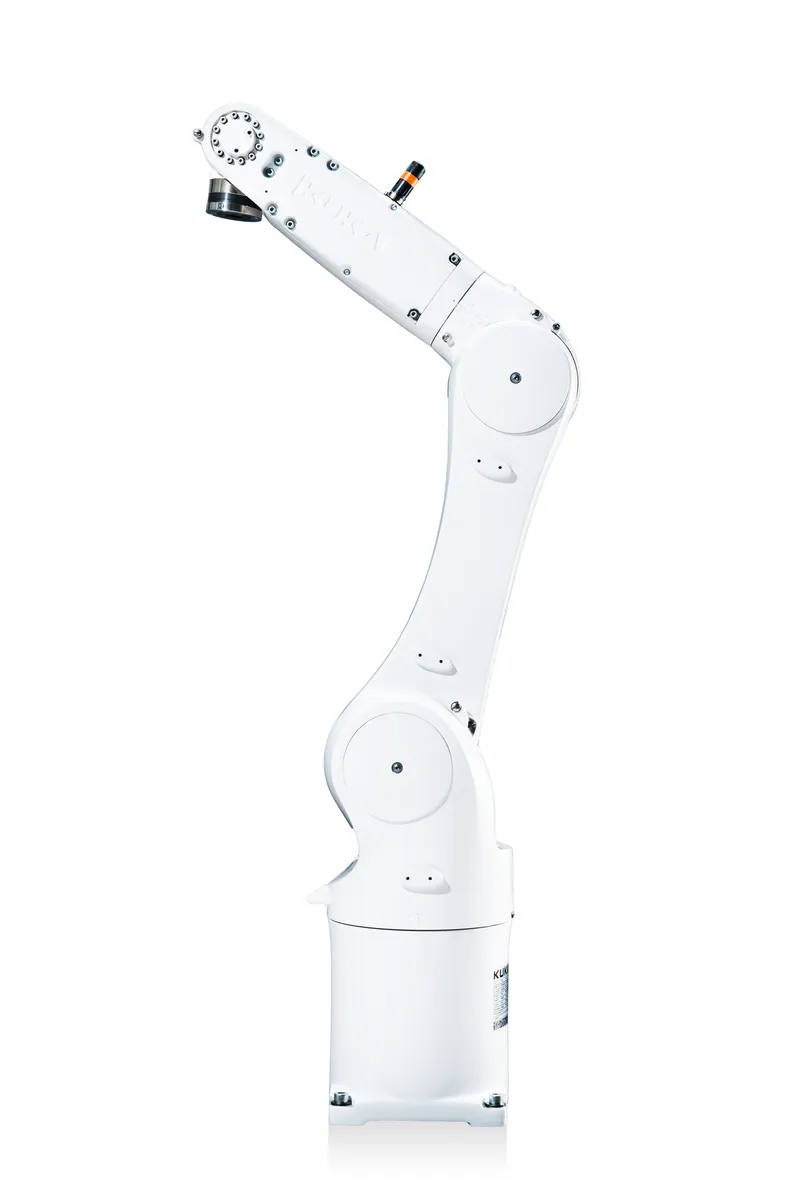

Kuka KR 10 R1100 CR, manufacturer part number 293594. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	10 kg
Maximum reach	1101 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.03 mm
Number of axes	6
Ambient temperature during operation	5 °C to 45 °C (278 K to 318 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP54
Cleanroom class (ISO 14644-1)	Class 2 at 40% override, Class 2 at 80% override
A1	±170 °
A2	-190 ° / 45 °
A3	-120 ° / 156 °
A4	±185 °
A5	±120 °
A6	±350 °

293594: frequently asked questions

When can 293594 be shipped?

293594 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 293594 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 293594 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 293594, subject to availability and destination.
