Kuka 121176

MPN: 121176
Category: Medium payload class (20 to 120 kg)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 121176?

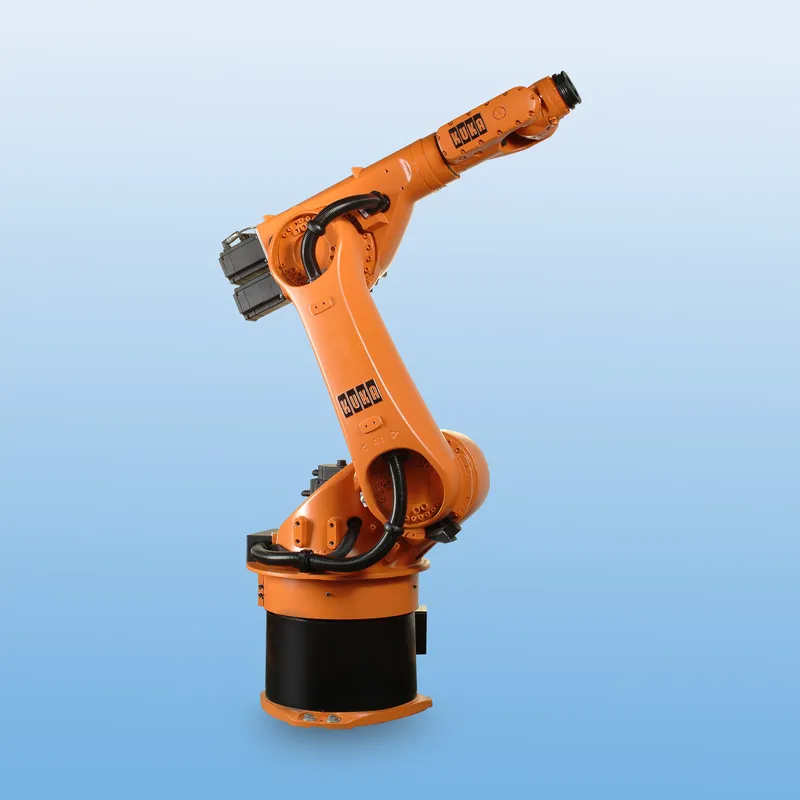

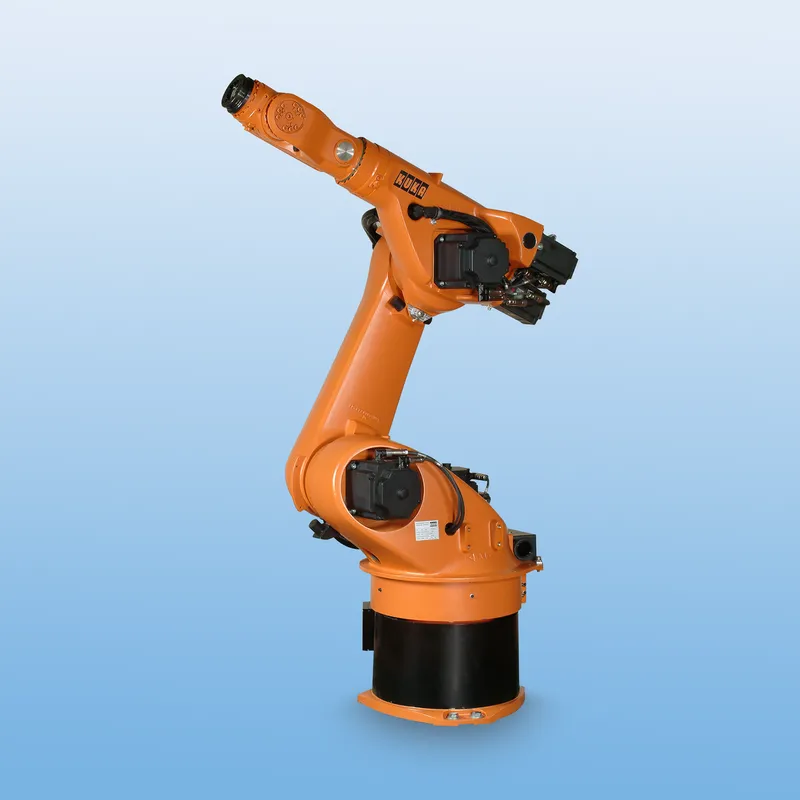

Kuka KR 60 L30-3, manufacturer part number 121176. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	30 kg
Rated payload	30 kg
Maximum reach	2429 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.06 mm
Number of axes	6
Ambient temperature during operation	10 °C to 55 °C (283 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP64
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	128 °/s
A2	102 °/s
A3	128 °/s
A4	260 °/s
A5	245 °/s
A6	322 °/s
