Kuka 121172

MPN: 121172
Category: Medium payload class (20 to 120 kg)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 121172?

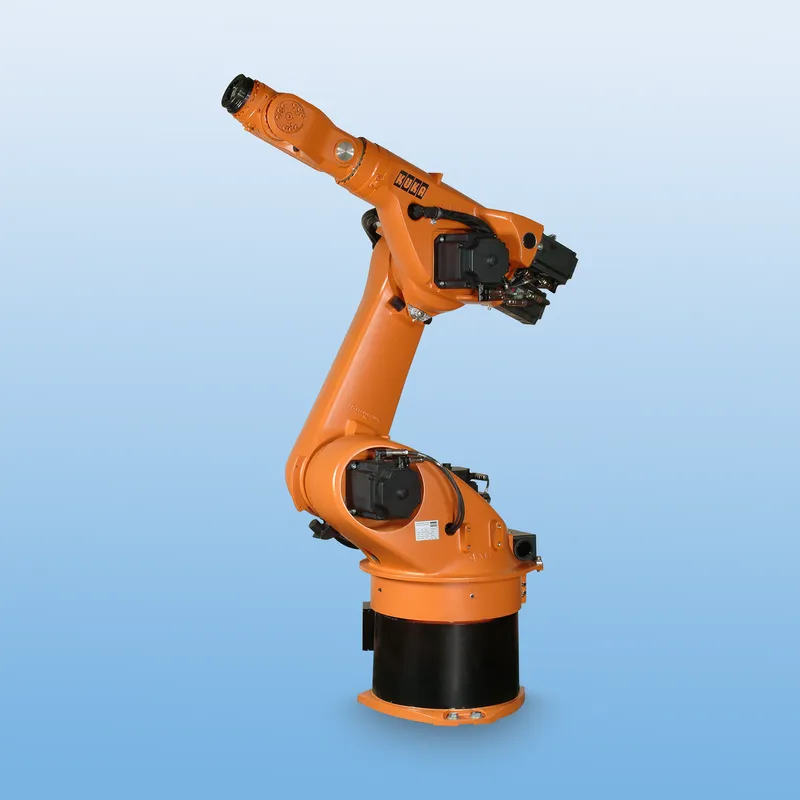

Kuka KR 30-3, manufacturer part number 121172. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	30 kg
Rated payload	30 kg
Maximum reach	2033 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.06 mm
Number of axes	6
Ambient temperature during operation	10 °C to 55 °C (283 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP64
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	140 °/s
A2	140 °/s
A3	140 °/s
A4	260 °/s
A5	245 °/s
A6	322 °/s

121172: frequently asked questions

When can 121172 be shipped?

121172 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 121172 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 121172 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 121172, subject to availability and destination.
