Keyence XC-T34B2

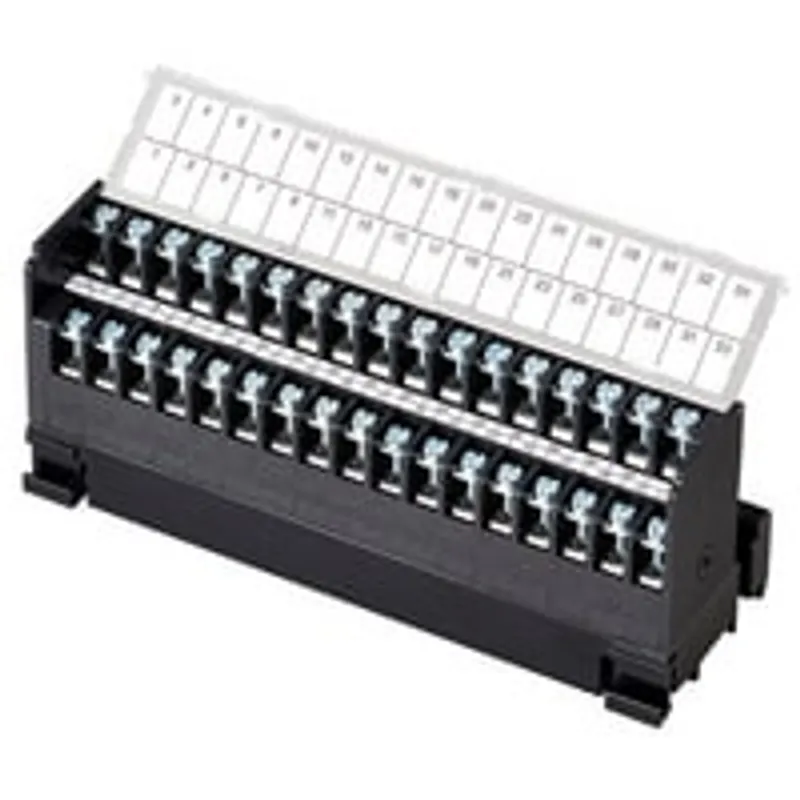

Conversion terminal block, Screw terminal, 34 poles.

MPN: XC-T34B2
Category: Programmable Logic Controller

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Keyence XC-T34B2?

Conversion terminal block, Screw terminal, 34 poles. XC-T34B2. Series: Programmable Logic Controller. Series code: KV-8000 series

Specifications

Model Name	Conversion terminal block, Screw terminal, 34 poles
Model Code	XC-T34B2
Series Title	Programmable Logic Controller
Series Code	KV-8000 series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR57344&dlModelId=PM_25T34B2&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/controls/plc-building-block-type/kv-8000/downloads/?mode=cd&modelId=PM_25T34B2
Manuals URL	https://www.keyence.com/products/controls/plc-building-block-type/kv-8000/downloads/?mode=ma&modelId=PM_25T34B2
Model	XC-T34B2
Rated voltage	125 VAC/DC
Rated current	1 A/pin
Ambient operating temperature	−40 to +80°C −40 to +176°F
Screw torque	0.8 N·m (max.)
Applicable wire diameter	AWG22 to 16
Environmental resistance - Insulation resistance	500 VDC, 1000 MΩ or greater
Environmental resistance - Withstand voltage	500 VAC, 1 minute, 1 mA or less
