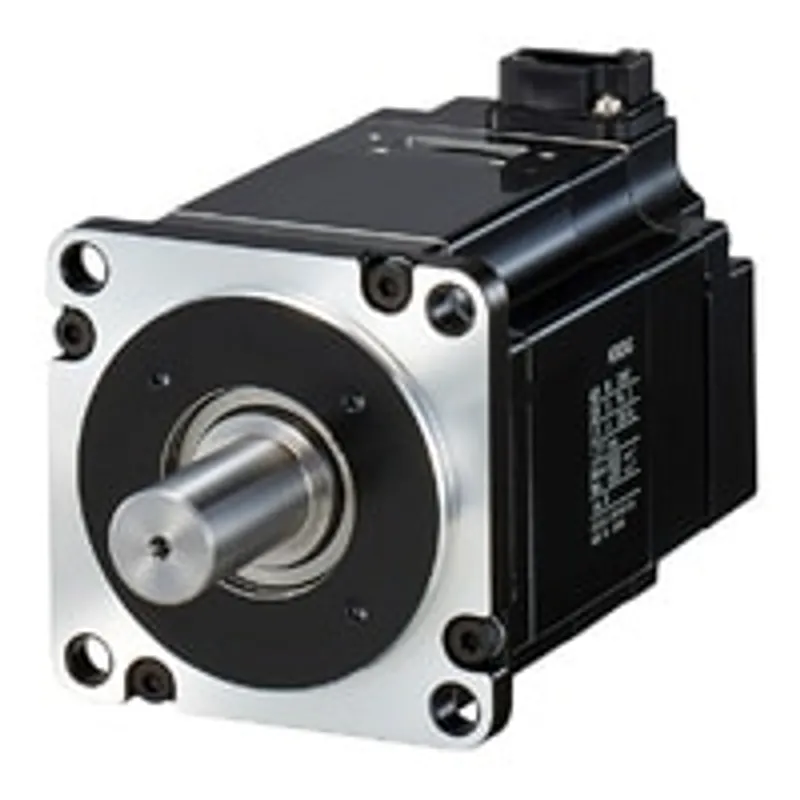

Keyence SV3-M040AK
MPN: SV3-M040AK · Brand: Keyence
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Servo System |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SV3-M040AK be shipped?
SV3-M040AK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SV3-M040AK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SV3-M040AK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SV3-M040AK, subject to availability and destination.
Splined axis Absolute 400 W. SV3-M040AK. Series: Servo System. Series code: SV3 series
Specifications
Specifications
| Model Name | Splined axis Absolute 400 W |
| Model Code | SV3-M040AK |
| Series Title | Servo System |
| Series Code | SV3 series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157186&dlModelId=PM_23M40AK&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/controls/motor/sv3/downloads/?mode=cd&modelId=PM_23M40AK |
| Manuals URL | https://www.keyence.com/products/controls/motor/sv3/downloads/?mode=ma&modelId=PM_23M40AK |
| Model | SV3-M040AK |
| General specifications - Applicable servo amplifier | SV3-040L2 |
| General specifications - Rated output | 400 W |
| General specifications - Rated torque | 1.27 N·m *1 |
| General specifications - Instant maximum torque | 4.46 N·m |
| General specifications - Rated current | 2.5 Arms |
| General specifications - Instant maximum current | 9.3 Arms |
| General specifications - Rated rotation speed | 3,000 min-1 |
| General specifications - High rotation speed | 7,000 min-1 |
| General specifications - Torque constant | 0.544 N·m/Arms |
| General specifications - Rotor moment of inertia | 0.490 ×10-4 kg·m2 |
| General specifications - Rated power rating | 32.9 kW/s |
| General specifications - Rated angle acceleration | 25,900 rad/s2 |
| General specifications - Excitation method | Permanent magnet |
| General specifications - Position/speed detection encoder | 26 bit |
| General specifications | Absolute (ABS) type |
| General specifications - Operating environment | Completely closed, self-cooling, IP67 standard (excluding connector and axis through-hole) |
| General specifications - Isolation rank | UL: Class A, CE: Class B |
| General specifications - Min. insulation resistance | 500 VDC 10 MΩ or more with insulation resistance meter |
| General specifications - Isolation voltage tolerance | 1,500 VAC for 1 minute |
| General specifications - Approved standards | UL1004-1, UL1004-6, CSA C22.2 No.100 |
| General specifications - Allowable load inertia moment | 10×*2 |
| General specifications - Approx. weight | 1.1 kg 2.43 lb |
